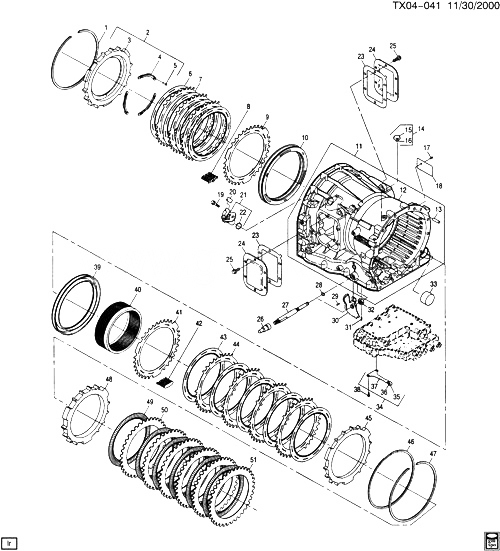

(TX04-041) - 2001-2005 CK2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M74) (ALLISON 1000 SERIES) MAIN ШЛАНГИ CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 29531054 RING, 3-5 REV CLU RET (4.123) (ACDelco #29531054) CK2, 3 (M74) 2001-2005 01
002 29535648 PLATE, 3RD REV CLU BKG (INCLS 3, 4, 5) (ACDelco #29535648) CK2, 3 (M74) 2001-2005 01
003 BACKPLATE, C3 CLUTCH (PART OF 2) 2001-2005
004 PLATE, GEAR THRUST (PART OF 2) 2001-2005
005 RIVET (PART OF 2) 2001-2005
006 29531049 PLATE, 3-5 REV CLU (FIBER) (ACDelco #29531049) CK2, 3 (M74) 2001-2005 09
007 29531048 PLATE, 3-5 REV CLU (STEEL) (ACDelco #29531048) CK2, 3 (M74) 2001-2005 07
008 29542191 ПРУЖИНА, 3-5-REV CLU PSTN RTN CK2, 3 (M74) 2001-2005 03
009 29542192 PLATE, 3-5-REV CLU SPR CK2, 3 (M74) 2001-2005 02
010 29543321 PISTON, 3-5/REV CLU (ACDelco #29543321) CK2, 3 (M74) 2001-2005 01
011 29536606 CASE, A/TRNS (INCLS 12, 13, 17, 18) (4.169) (ACDelco #29536606) CK2, 3 (M74) 2001-2005 01
012 CASE, A/TRNS (PART OF 11) 2001-2005
013 PIN, TRANS CASE LOC (PART OF 11) 2001-2005
014 06882757 VENT, A/TRNS (INCLS 15, 16) (ACDelco #6882757) CK2, 3 (M74) 2001-2005 01
015 CAP, VENT (PART OF 14) 2001-2005
016 VENT (PART OF 14) 2001-2005
017 RIVET (PART OF 11) 2001-2005
018 PLATE, IDENTIFICATION (PART OF 11) 2001-2005
019 29537511 БОЛТ, VEH SPD SEN (4.329) (ACDelco #29537511) CK2, 3 (M74) 2001-2005 01
019 29537511 БОЛТ, VEH SPD SEN (ACDelco #29537511) CK2, 3 (M74) 2001-2005 01
020 COVER, VEH SPD SEN HSG (SHIPPING ONLY) 2001-2005
021 29536408 SENSOR, A/TRNS TURB SPD (INCLS 22) (ACDelco #213-958) CK2, 3 (M74) 2001-2005 01
022 29534145 SEAL, VEH SPD SEN (O RING) (PART OF 21) (ORANGE) (I.D. 18MM) (ACDelco #29534145) CK2, 3 (M74) 2001-2005 01
023 29531325 GASKET, PTO CVR CK2, 3 (M74) 2001-2005 02
024 06774322 COVER, PTO CK2, 3 (M74) 2001-2005 02
025 29537510 БОЛТ, PTO CVR (M10X1.5X20) CK2, 3 (M74) 2001-2005 12
026 COVER, SELECTOR SHAFT (SHIPPING ONLY) 2001-2005
027 29541359 SHAFT KIT, MAN SHFT DTNT LVR (INCLS 32) (INCLS SELECTOR SHAFT AND NUT KIT) (4.275) CK2, 3 (M74) 2001-2005 01
028 23010610 SEAL, MAN SHFT SHF CK2, 3 (M74) 2001-2005 01
029 29536593 PIN, MAN VLV (SEL) (4.279) CK2, 3 (M74) 2001-2005 01
030 29537169 LEVER, MAN SHFT DTNT (ACDelco #29537169) CK2, 3 (M74) 2001-2005 01
031 29531294 PIN, MAN SHFT DTNT LVR CK2, 3 (M74) 2001-2005 01
032 ГАЙКА, MAN SHFT DTNT LVR (PART OF 27) 2001-2005
033 COVER, SHIPPING 2001-2005
034 29536922 ПРУЖИНА, MAN SHFT DTNT LVR (INCLS 35-38) (4.218) CK2, 3 (M74) 2001-2005 01
035 ROLLER (PART OF 34) 2001-2005
036 PIN (PART OF 34) 2001-2005
037 ПРУЖИНА, DETENT (PART OF 34) 2001-2005
038 29537509 БОЛТ, MAN SHFT DTNT SPR (PART OF 34) (M6X1.0X12) CK2, 3 (M74) 2001-2005 02
039 29543321 PISTON, 2ND CLU (ACDelco #29543321) CK2, 3 (M74) 2001-2005 01
040 29531055 GEAR, INPUT INTL (4.470) CK2, 3 (M74) 2001-2005 01
041 29542192 PLATE, 3-5-REV CLU SPR (4TH CLUTCH) CK2, 3 (M74) 2001-2005 02
042 29542191 ПРУЖИНА, 2ND CLU PSTN RTN (4TH CLUTCH) CK2, 3 (M74) 2001-2005 03
043 29531049 PLATE, 3-5 REV CLU (4TH CLUTCH) (FIBER) (ACDelco #29531049) CK2, 3 (M74) 2001-2005 09
044 29531048 PLATE, 3-5 REV CLU (4TH CLUTCH) (STEEL) (ACDelco #29531048) CK2, 3 (M74) 2001-2005 07
045 29535640 PLATE, 2ND CLU BKG (ACDelco #29535640) CK2, 3 (M74) 2001-2005 01
046 29535641 RING, 2ND CLU SPR RET (4.166) (ACDelco #29535641) CK2, 3 (M74) 2001-2005 01
047 29531054 RING, 3-5 REV CLU RET (4TH CLUTCH) (4.123) (ACDelco #29531054) CK2, 3 (M74) 2001-2005 01
048 29531058 PLATE, LOW REV CLU BKG CK2, 3 (M74) 2001-2005 01
049 29537393 PLATE, LOW REV CLU (FIBER) CK2, 3 (M74) 2001-2005 06
050 29536482 PLATE, LOW REV CLU (2.435-2.565MM) (STEEL) CK2, 3 (M74) 2001-2005 05
051 29536481 PLATE, LOW REV CLU (1.935-2.065MM) CK2, 3 (M74) 2001-2005 01
051 29536483 PLATE, LOW REV CLU (2.935-3.065MM) CK2, 3 (M74) 2001-2005 01
