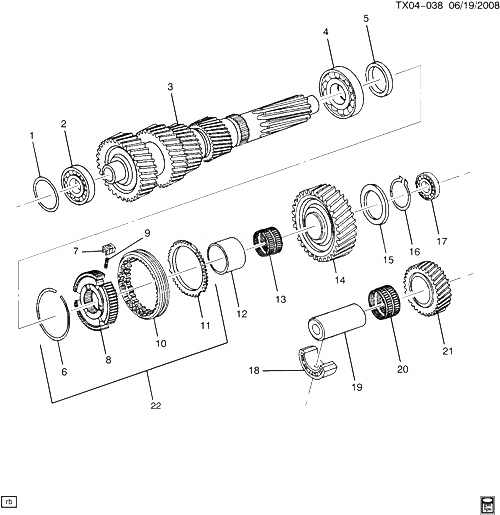

(TX04-038) - 2001-2006 CK2,3 6-ТИ СКОРОСТНАЯ МКПП (ML6) ЧАСТЬ 4 COUNTER SHAFT REVERSE IDLER COMPONENTS CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12479808 SHIM KIT, CNTR GR FRT BRG (4.423) CK2, 3 (ML6) 2001-2006 02
002 89048564 BEARING, CNTR GR FRT CK2, 3 (ML6) 2001-2006 01
003 88996615 SHAFT, CNTR GR CK2, 3 (ML6) 2001-2006 01
004 12479810 BEARING, CNTR GR CK2, 3 (ML6) 2001-2006 01
005 88984345 SPACER, CNTR GR BRG CK2, 3 (ML6) 2001-2006 01
006 88984348 RING, 6TH GR SYN RET (PART OF 22) (4.302) CK2, 3 (ML6) 2001-2006 01
007 88984351 INSERT, 6TH GR SYN (PART OF 22) (4.046) CK2, 3 (ML6) 2001-2006 09
008 88984346 HUB, 6TH GR SYN (PART OF 22) (4.380) CK2, 3 (ML6) 2001-2006 01
009 88984350 ПРУЖИНА, 6TH GR SYN (PART OF 22) (4.027) CK2, 3 (ML6) 2001-2006 09
010 88984349 SLEEVE, 6TH GR SYN (PART OF 22) CK2, 3 (ML6) 2001-2006 02
011 88984347 RING, 6TH GR BLOCKING (PART OF 22) (4.384) CK2, 3 (ML6) 2001-2006 03
012 88984353 BUSHING, 6TH GEAR (4.302) (ACDelco #88984353) CK2, 3 (ML6) 2001-2006 01
013 88984352 BEARING, 6TH GR (63X71X44.5) (4.431) CK2, 3 (ML6) 2001-2006 01
014 88984354 GEAR, 6TH (4.421) CK2, 3 (ML6) 2001-2006 01
015 88984355 WASHER, 6TH GR THR CK2, 3 (ML6) 2001-2006 01
016 12479817 RING KIT, 6TH GR RET CK2, 3 (ML6) 2001-2006 01
017 88984356 BEARING, CNTR GR RR CK2, 3 (ML6) 2001-2006 01
018 88984389 BRACKET, REV IDLER GR SHF CK2, 3 (ML6) 2001-2006 01
019 88984386 SHAFT, REV IDLER GR CK2, 3 (ML6) 2001-2006 01
020 88984387 BEARING, REV IDLER GR CK2, 3 (ML6) 2001-2006 01
021 88996618 GEAR, REV IDLER CK2, 3 (ML6) 2003-2006 01
022 89048565 SYNCHRONIZER, 6TH GR (INCLS 6-11) CK2, 3 (ML6) 2001-2006 01
