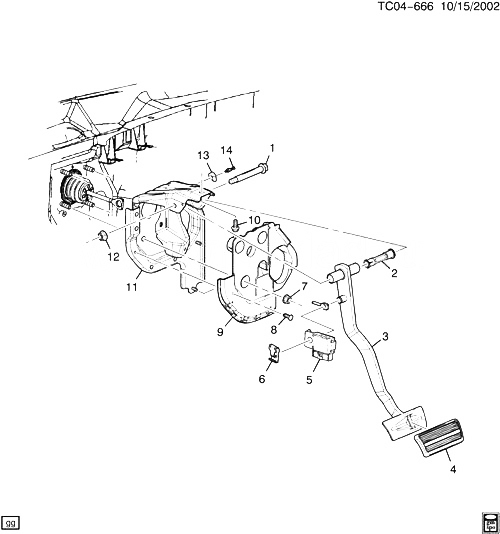

(TC04-666) - 2003-2005 CK ТОРМОЗНАЯ ПЕДАЛЬ (EXC POWER ADJUSTABLE PEDAL JF4) CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15000145 БОЛТ, BRK PED PIV (12X1.75X120, 25) CK1, 2, 3 2003-2007 01
002 15157907 BUSHING, BRK PED PIV CK1 (06-36) (JH2) (EXC JF4) 2003-2006 01
002 15157907 BUSHING, BRK PED PIV CK1 2003-2007 01
002 15157907 BUSHING, BRK PED PIV CK2 (06) (JH6, JH7) (EXC JF4) 2004-2006 01
003 15706034 PEDAL, BRK CK2, 3 (ML6, MW3, JH6, JH7) 2003-2006 01
003 15734409 PEDAL, BRK CK2, 3 (JH6, JH7, MN8, MT1, M74) (EXC JF4) 2003-2005 01
003 15734409 PEDAL, BRK CK1 (06-36) (JH2) (EXC JF4) 2004-2006 01
004 15706041 COVER, BRK PED CK1, 2, 3 (MG5, MW3, ML6, M96) 2003-2006 01
004 15706042 COVER, BRK PED CK2, 3 (MN8, MT1, M74, JH6, JH7) (EXC JF4) 2003-2005 01
004 15706042 COVER, BRK PED CK1 (06-36) (JH2) (EXC JF4) 2004-2006 01
004 15706042 COVER, BRK PED CK1 (M30, M32, JC4, JF3, JF7) (EXC JF4) 2005-2007 01
005 25771554 SWITCH, S/LP (ACDelco #D1588G) CK1, 2, 3 (EXC JF4) 2003-2006 01
006 15048329 RETAINER, BRK PED PUSH ROD (29.13 MM) (WITHOUT BOLT) CK1, 2, 3 2003-2006 01
007 11517996 ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917) CK1, 2, 3 2003-2007 04
008 15188870 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) (BUTTON HEAD) CK1, 2, 3 2003-2005 01
009 INSULATOR, DA PNL (PART OF 11) 2003-2005
010 11517182 БОЛТ, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 2003-2007 01
011 15188775 BRACKET, BRK ACCEL PED (INCLS 9) CK2, 3 (JH6, JH7, ML6, MW3) 2004-2005 01
011 15188778 BRACKET, BRK ACCEL PED (INCLS 9) CK1 (06-36) (JH2) 2004-2005 01
011 15188778 BRACKET, BRK ACCEL PED (INCLS 9) CK2, 3 (JH6, JH7, MN8, MT1, M74) 2004-2005 01
012 11588927 ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, PREVAILING TORQUE (BRK PED PIV) 2003-2007 01
013 WASHER, BRK ACCEL CLU PED BRKT 2003-2005
014 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) 2004-2007
