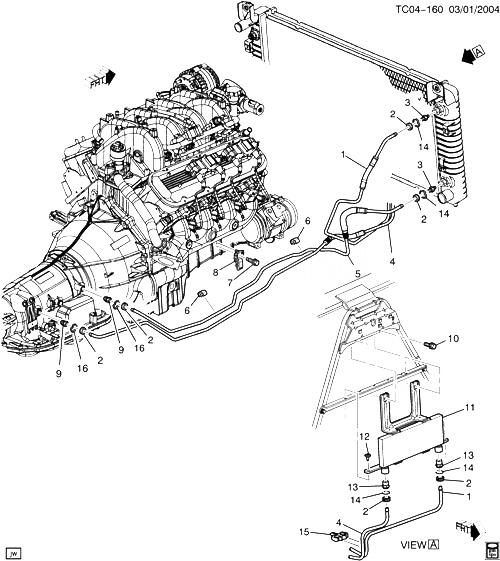

(TC04-160) - 2003-2006 CK2 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА АКПП (L18/8.1G, MN8) CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15812050 HOSE, TRANS FLUID AUX CLR INL (INCLS 2) (CODE CCX, KUW) CK2 (L18, MN8, KNP) 2003-2006 01
002 15052228 CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 4, 5) (PLASTIC RETAINER) (ACDelco #15052228) CK1, 2, 3 2001-2006 06
003 15170226 CONNECTOR, TRANS FLUID CLR PIPE (PRODUCTION CONNECTOR) (TO AUX TRANS COOLER) CK2, 3 (M74, KNP) 2003-2005 02
003 15226661 CONNECTOR, TRANS FLUID CLR PIPE (9/16-18) (3/8 BODY QUICK CONNECT) (AT RAD) (ACDelco #15226661) CK1, 2, 3 (MN8, MT1, M30, M32) 2004-2005 02
003 15724728 CONNECTOR, TRANS FLUID CLR PIPE (3/8 QUICK CONNECT, 3/8 NPTF) (AT COOLER) (ACDelco #15724728) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2006 02
003 15797464 CONNECTOR, TRANS FLUID CLR PIPE (3/4-16) (W/TRANS OIL CLR PIPE W/20.7MM FROM FLAT OF FLARE TO PIPE END) (ACDelco #15797464) CK2, 3 (LB7, LLY, L18, ML6, MN8, M74, KC4) 2004-2005 02
003 19210848 CONNECTOR, TRANS FLUID CLR PIPE (W/O BEVEL WASHER) (ACDelco #19210848) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2005 02
003 89040281 CONNECTOR, TRANS FLUID CLR PIPE (SERVICE ADAPTER CONNECTOR) (AT AUX COOLER ASM) (ACDelco #89040281) CK2, 3 (M74, KNP) 2001-2005 02
004 15812030 PIPE, TRANS FLUID CLR LWR (INCLS 2) (CODE CCZ, KUU, UCH) CK2 (L18, MN8, KNP) 2003-2006 01
005 15812049 PIPE, TRANS FLUID CLR UPR (INCLS 2) (ACDelco #15812049) CK2 (L18, MN8, KNP) 2003-2006 01
006 15068848 CLIP, TRANS FLUID CLR PIPE (HOLDS 2-9.5MM (3/8) DIA ТРУБКИ , CLIP TOP) CK1, 2, 3 2001-2006 02
007 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (BAT POS CBL CLIP) 2001-2006 02
008 15765448 CLIP, BAT POS CBL (BLACK) (HOLDS 2 9.6 OD TUBES, ) CK2 (L18) 2001-2006 01
009 24233366 FITTING, TRANS FLUID CLR PIPE (INCLS O-RING) (1/4-18 NPS THD) (QUICK CONN, NON BALL CK INCLS RETAINER, TRANS END) (STL BODY) (ACDelco #24233366) CK1, 2, 3 (EXC M74) 2001-2005 01
010 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR) 2001-2006 02
011 25877162 COOLER, TRANS FLUID AUX (CODE 4639, 5464, 9344, 7192) (INCLS 13, 14) (ACDelco #25877162) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2005 01
012 15149708 RETAINER, TRANS FLUID AUX CLR (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505) CK1, 2, 3 2001-2006 02
013 15724728 CONNECTOR, TRANS FLUID CLR PIPE (PART OF 11) (INCLS 14) (3/8 QUICK CONNECT, 3/8 NPTF) (AT COOLER) (ACDelco #15724728) CK1, 2, 3 (MN8, MT1, M30, M32, KNP) 2002-2006 02
014 24205103 CLIP, TRANS FLUID AUX CLR PIPE (PART OF 11, 13) (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) CK1, 2, 3 2001-2006 04
015 15049288 CLIP, TRANS FLUID CLR PIPE (BLACK) (37.7X39.3) (DOUBLE SNAIL CLIP) CK1, 2, 3 2001-2006 01
016 24205103 RETAINER, TRANS FLUID CLR PIPE FTG (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103) CK1, 2, 3 2001-2006 02
