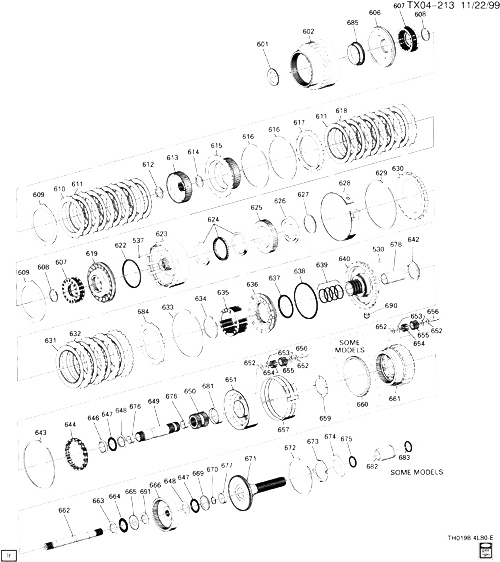

(TX04-213) - 2001-2007 CK1,2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (MT1) ЧАСТЬ 3 (4L80-E) CLUTCH GEARS CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
530 ORIFICE, 4TH CLU (*KIT3) 2001-2007
537 VALVE, OVERRUN CLU BALL CHK (*KIT2) 2001-2007
601 08628202 BEARING, O/D CARR THR (4.176) (ACDelco #8628202) CK1, 2, 3 (MT1) 2001-2007 01
602 24234155 ШЛАНГИ, FWD CLU (INCLS 685) (ACDelco #24234155) CK1, 2, 3 (MT1) 2001-2007 01
606 24204957 PISTON, FWD CLU (ACDelco #24204957) CK1, 2, 3 (LQ4, MT1) 2003-2007 01
607 08661764 ПРУЖИНА, DIR CLU (ACDelco #8661764) CK1, 2, 3 (MT1) 2001-2007 01
607 08661764 ПРУЖИНА, FWD CLU (ACDelco #8661764) CK1, 2, 3 (MT1) 2001-2007 01
608 08623105 RING, DIR CLU SPR RET (ACDelco #8623105) CK1, 2, 3 (MT1) 2001-2007 01
608 08623105 RING, FWD CLU SPR RET (ACDelco #8623105) CK1, 2, 3 (MT1) 2001-2007 01
609 24205560 PLATE, FWD CLU (WAVED) (12 TOOTH REPLACED 14 TOOTH) (ACDelco #24205560) CK1, 2, 3 (MT1) 2001-2007 01
609 24205561 PLATE, DIR CLU (WAVED) (14 TEETH) (ACDelco #24205561) CK1, 2, 3 (MT1) 2003-2007 01
610 08623849 PLATE, FWD CLU (FLAT STL) (.0775 THK) (ACDelco #8623849) CK1, 2, 3 (MT1) 2001-2007 05
611 24202646 PLATE, DIR CLU (FLAT) (FIBER) (*KIT1) (ACDelco #24202646) CK1, 2, 3 (MT1) 2001-2007 05
611 24202646 PLATE, FWD CLU (FLAT) (FIBER) (*KIT1) (ACDelco #24202646) CK1, 2, 3 (MT1) 2001-2007 05
612 08624196 WASHER, FWD CLU HSG THR (ACDelco #8624196) CK1, 2, 3 (MT1) 2001-2007 01
613 08677091 HUB, FWD CLU (ACDelco #8677091) CK1, 2, 3 (MT1) 2001-2007 01
614 08624781 WASHER, DIR CLU HSG THR (ACDelco #8624781) CK1, 2, 3 (MT1) 2001-2007 01
615 08661837 HUB, DIR CLU (ACDelco #8661837) CK1, 2, 3 (MT1) 2001-2007 01
616 08623112 RING, DIR CLU BKG PLT RET (6.24OD X .062) (ACDelco #8623112) CK1, 2, 3 (MT1) 2001-2007 01
616 08623112 RING, DIR CLU HUB RET (6.24OD X .062) (ACDelco #8623112) CK1, 2, 3 (MT1) 2001-2007 01
617 08675557 PLATE, DIR CLU BKG (ACDelco #8675557) CK1, 2, 3 (MT1) 2001-2007 01
618 08625197 PLATE, DIR CLU (.0915 THK) (ACDelco #8625197) CK1, 2, 3 (MT1) 2001-2007 05
619 24204961 PISTON, DIR CLU (ACDelco #24204961) CK1, 2, 3 (MT1) 2001-2007 01
622 SEAL, CLU CTR (*KIT1) 2001-2007
623 ШЛАНГИ, DIR CLU (*KIT2) 2001-2007
624 08633173 SPRAG, INTER CLU (*KIT6) (ACDelco #8633173) CK1, 2, 3 (MT1) 2001-2007 01
625 RACE, INPUT CLU RLR OTR (*KIT6) 2001-2007
626 08627334 RETAINER, INTER CLU RLR (*KIT6) (ACDelco #8627334) CK1, 2, 3 (MT1) 2001-2007 01
627 08675558 RING, INTER CLU RLR RET RET (*KIT2, KIT6) (4.167) (ACDelco #8675558) CK1, 2, 3 (MT1) 2001-2007 01
628 24228967 BAND, MAN 2-1 (ACDelco #24228967) CK1, 2, 3 (MT1) 2005-2007 01
629 08623149 RING, INTER CLU BKG PLT RET (4.164) (ACDelco #8623149) CK1, 2, 3 (MT1) 2001-2007 01
630 24205827 PLATE, INTER CLU BKG (ACDelco #24205827) CK1, 2, 3 (MT1) 2001-2007 01
631 24202966 PLATE, INTER CLU (47 TEETH) (*KIT1) (4.164) (ACDelco #24202966) CK1, 2, 3 (MT1) 2001-2007 04
632 08675522 PLATE, INTER CLU (22 TEETH) (ACDelco #8675522) CK1, 2, 3 (MT1) 2001-2007 04
633 08623437 RING, CTR SUPT RET (ACDelco #8623437) CK1, 2, 3 (MT1) 2001-2007 01
634 08623153 RING, INTER CLU SPR RET (SNAP) (ACDelco #8623153) CK1, 2, 3 (MT1) 2001-2007 01
635 24202976 ПРУЖИНА, INTER CLU (W/RET) (ACDelco #24202976) CK1, 2, 3 (MT1) 2001-2007 01
636 24202552 PISTON, INTER CLU (ACDelco #24202552) CK1, 2, 3 (MT1) 2001-2007 01
637 24202360 SEAL, INTER CLU PSTN INR (*KIT1, KIT9) (ACDelco #24202360) CK1, 2, 3 (MT1) 2001-2007 01
638 24202361 SEAL, INTER CLU PSTN OTR (*KIT1, KIT9) (ACDelco #24202361) CK1, 2, 3 (MT1) 2001-2007 01
639 24205722 RING, DIR CLU HSG FLUID SEAL (*KIT1) (4.131) (ACDelco #24205722) CK1, 2, 3 (MT1) 2001-2007 04
640 SUPPORT, CTR (*KIT3) 2001-2007
642 24241414 WASHER, REACTION CARR THR (4.162) (ACDelco #24241414) CK1, 2, 3 (MT1) 2001-2007 01
643 08626816 SPACER, CTR SUPT (TO CASE) (ACDelco #8626816) CK1, 2, 3 (MT1) 2001-2007 01
644 07471009 ROLLER, LOW CLU (ACDelco #7471009) CK1, 2, 3 (MT1) 2001-2007 01
646 RACE, THR BRG TO SUPT (*KIT4) 2001-2007
647 BEARING, SUN GR TO INT GR (*KIT4, KIT8) 2001-2007
648 RACE, BRG TO SUN GR (*KIT4, KIT8) 2001-2007
649 24207264 SHAFT, SUN GR (INCLS 676) (ACDelco #24207264) CK1, 2, 3 (MT1) 2001-2007 01
650 24209475 GEAR, SUN (ACDelco #24209475) CK1, 2, 3 (MT1) 2001-2007 01
651 24212051 CARRIER, REACTION (INCLS 652-656, 681) (ACDelco #24212051) CK1, 2, 3 (MT1) 2001-2007 01
652 WASHER, PINION THR (STEEL) (PART OF 651, 661) 2001-2007
653 WASHER, PINION THR (BRONZE) (PART OF 651, 661) 2001-2007
654 ROLLER, NDL BRG (PART OF 651, 661) 2001-2007
655 PINION, PLANET (PART OF 651, 661) 2001-2007
656 PIN, PLANET PINION (PART OF 651, 661) 2001-2007
657 24202229 BAND, LOW REV (ACDelco #24202229) CK1, 2, 3 (MT1) 2001-2007 01
659 24214809 WASHER, OUTPUT CARR THR (PLASTIC) CK1, 2, 3 (MT1) 2001-2007 01
660 RING, OUTPUT SPD SEN (PART OF 661) 2001-2007
661 24212052 CARRIER, OUTPUT (COMPL) (INCLS 652-656, 660) (ACDelco #24212052) C1, 2, 3 (MT1) 2005-2007 01
662 24203400 SHAFT, MAIN (ACDelco #24203400) CK1, 2, 3 (MT1) 2001-2007 01
663 RACE, THR BRG TO SUN GR (*KIT5) 2001-2007
664 BEARING, RR INTL GR THR (*KIT5) 2001-2007
665 24204962 RACE, SUN GR RR THR BRG (*KIT5) (ACDelco #24204962) CK1, 2, 3 (MT1) 2001-2007 01
666 24203398 GEAR, RR INTL (HELICAL TYPE) (ACDelco #24203398) CK1, 2, 3 (MT1) 2001-2007 01
669 RACE, THR BRG TO OUTPUT SHF (*KIT8) 2001-2007
670 08623212 RING, MAIN SHF RET (ACDelco #8623212) CK1, 2, 3 (MT1) 2001-2007 01
671 24204289 SHAFT, OUTPUT (INCLS 677) (ACDelco #24204289) C1, 2, 3 (MT1) 2005-2007 01
672 08626173 RING, OUTPUT SHF RET (ACDelco #8626173) CK1, 2, 3 (MT1) 2001-2007 01
673 08625401 WASHER, OUTPUT SHF THR (.075-.078) (ACDelco #8625401) CK1, 2, 3 (MT1) 2001-2007 01
673 08625402 WASHER, OUTPUT SHF THR (.082-.086) (ACDelco #8625402) CK1, 2, 3 (MT1) 2001-2007 01
673 08625403 WASHER, OUTPUT SHF THR (.090-.094) (ACDelco #8625403) CK1, 2, 3 (MT1) 2001-2007 01
673 08625404 WASHER, OUTPUT SHF THR (.098-.102) (ACDelco #8625404) CK1, 2, 3 (MT1) 2001-2007 01
673 08625405 WASHER, OUTPUT SHF THR (.106-.110) (ACDelco #8625405) CK1, 2, 3 (MT1) 2001-2007 01
673 08625406 WASHER, OUTPUT SHF THR (.114-.118) (ACDelco #8625406) CK1, 2, 3 (MT1) 2001-2007 01
673 24214809 WASHER, OUTPUT SHF THR (PLASTIC) CK1, 2, 3 (MT1) 2001-2007 01
674 24214809 WASHER, OUTPUT SHF THR (PLASTIC) CK1, 2, 3 (MT1) 2001-2007 01
675 08675517 SEAL, OUTPUT SHF (ACDelco #8675517) CK1, 2, 3 (MT1) 2001-2007 01
676 BUSHING, SUN GR SHF (PART OF 649) 2001-2007
677 BUSHING, OUTPUT SHF (PART OF 671) 2001-2007
678 SLEEVE, FWD CLU HSG (*KIT3) 2001-2007
681 BUSHING, REACTION DRUM (PART OF 651) 2001-2007
682 08680267 SLEEVE, PROP SHF OIL SEAL (4.404) C2 (06) (LQ4, MT1) 2003-2006 01
683 08680268 SEAL, PROP SHF OIL (4.176) (ACDelco #8680268) C2 (06) (LQ4, MT1) 2003-2006 01
684 24204497 PLATE, INTER CLU (WAVED) CK1, 2, 3 (MT1) 2001-2007 01
685 SEAL, FWD CLU PSTN INTER (PART OF 602) 2001-2007
690 24203511 SEAL, TRANS FLUID CLR PIPE FTG (ACDelco #24203511) CK1, 2, 3 2001-2007 01
691 24211821 WASHER, RR INTL GR THR CK1, 2, 3 (MT1) 2001-2007 01
K01 24210954 TRANSMISSION KIT, AUTO (SERV OVERHAUL W/PLT, GSKT, SEAL) (INCLS 611, 622, 631, 637-639) (ACDelco #24210954) CK1, 2, 3 (MT1) 2001-2007 01
K02 24209311 ШЛАНГИ KIT, DIR CLU ( RACE) (INCLS 537, 623, 627) (ACDelco #24209311) CK1, 2, 3 (MT1) 2001-2007 01
K03 24217454 SUPPORT, CTR (INCLS 530, 640, 678) (ACDelco #24217454) CK1, 2, 3 (MT1) 2001-2007 01
K04 08623920 BEARING, REACTION SUN GR THR FRT (W/RACE) (INCLS 646-648) (ACDelco #8623920) CK1, 2, 3 (MT1) 2001-2007 01
K05 24208848 BEARING, SUN GR (TO INT GR) (W/RACE) (INCLS 663-665) (ACDelco #24208848) CK1, 2, 3 (MT1) 2001-2007 01
K06 24226554 RACE KIT, INTER CLU SPRAG (INCLS 624-627) CK1, 2, 3 (MT1) 2001-2007 01
K07 08683922 BUSHING KIT, PROP SHF FRT SLIP YOKE (INCLS 682, 683) C2 (06) (MT1) 2001-2006 01
K08 08623922 BEARING, OUTPUT SHF THR (W/RACE) (INCLS 647, 648, 669) (4.187) (ACDelco #8623922) CK1, 2, 3 (MT1) 2001-2007 01
K09 24204449 SEAL KIT, INTER CLU PSTN (INCLS 637-638) (ACDelco #24204449) CK1, 2, 3 (MT1) 2001-2007 01
