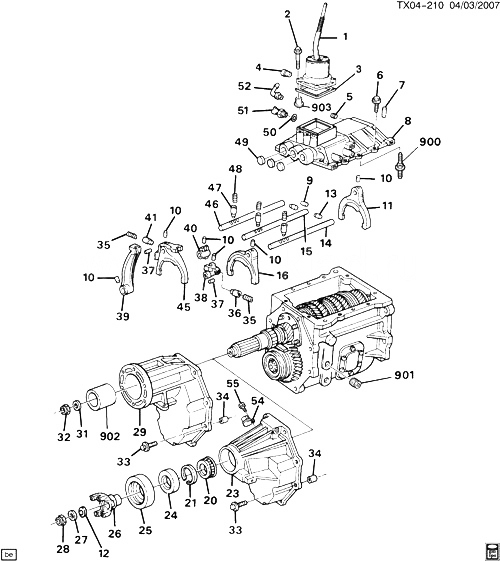

(TX04-210) - 2001-2007 CK2,3 5-ТИ СКОРОСТНАЯ МКПП (MW3) ЧАСТЬ 2 CASE COVER SECTION CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 12478063 LEVER, SHFT CK2, 3 (MW3) 2004-2007 01
002 14096659 БОЛТ, SHFT CONT HSG (HFH, 1/4-20X1.38) (0.137) CK2, 3 (MW3) 2001-2007 04
002 14096659 БОЛТ, SHFT CONT HSG (HFH, 1/4-20X1.38) (0.137) CK2, 3 (MW3) 2001-2007 04
003 12548351 SPACER, SHFT TWR (W/LOAD REACTION PLT) CK2, 3 (MW3) 2001-2007 01
004 TRUNION, TRANS (PART OF 8) 2001-2007
005 09421743 PLUG, (PART OF 8) 1999-2007 01
006 12542559 БОЛТ, BRG RET PLT (5/16-18X1) (HEX W/CON WASHER) (TO CASE) CK2, 3 (MW3) 2001-2007 08
007 15635315 PIN, TRANS CVR LOC (DIA 468, LG 485) CK2, 3 (MW3) 2001-2007 02
008 12478062 COVER, TRANS (INCLS 5, 9-11, 13-16, 35-38, 40, 41, 45-49, 56) CK2, 3 (MW3) 2005-2007 01
009 02462229 PIN, SHFT ROD INTLK (PART OF 8) CK2, 3 (MW3) 2001-2007 01
010 12542972 PIN, SHFT FORK LK (PART OF 8) (HAS 2 CHAMFERED ENDS) CK2, 3 (MW3) 2001-2007 07
011 FORK, 3RD 4TH SHFT (PART OF 8) 2001-2007
012 15635289 WASHER, TRANS MAIN SHF (1.0X1.52X.162MM) (RUBBER) (OUTPUT) (4.085) C2, 3 (MW3) 2001-2007 01
013 PLUNGER, TRANS SHFT INTLK (PART OF 8) 2001-2007
014 SHAFT, 1ST 2ND SHFT (PART OF 8) 2001-2007
015 SHAFT, 3RD 4TH SHFT (PART OF 8) 2001-2007
016 FORK, 1ST 2ND SHFT (PART OF 8) 2001-2007
020 12547173 BEARING, RR OUTPUT MAIN SHF RR (FRT RR OUTPUT SHF RR) (4.520) C2, 3 (MW3) 2001-2007 01
021 15635283 RING, MAIN SHF RR BRG RET (4.319) C2, 3 (MW3) 2001-2007 01
023 12473262 EXTENSION, TRANS (RR OIL) (4.412) C2, 3 (MW3) 2001-2007 01
024 12478060 SEAL, MAIN SHF RR (5.560) C2, 3 (MW3) 2001-2007 01
025 DAMPER, VIBRATION (PART OF 26) 2001-2007
026 12473266 YOKE, PROP SHF TRANS (INCLS 25) C2, 3 (LQ4, MW3) 2005-2007 01
027 12382783 WASHER, PROP SHF TRANS YOKE (1.03X1.75X1.5) (4.412) C2, 3 (LQ4, MW3) 2005-2007 01
028 12544824 ГАЙКА, MAIN SHF (1-20X1.50X.50) C2, 3 (MW3) 2001-2007 01
033 15635285 БОЛТ, TRANS (M10X1.5X333.2, 27.5) CK2, 3 (MW3) 2001-2007 08
034 15635284 PIN, TRANS CASE LOC (ПРУЖИНА PIN 0.555 DIA 0.729 LENGTH STL CHAMFERED END) CK2, 3 (MW3) 2001-2007 02
035 ПРУЖИНА, SHFT FINGER PLGR (PART OF 8) 2001-2007
036 PLUNGER, TRANS BIAS 1ST 2ND SHFT (PART OF 8) 2001-2007
037 00273937 PIN, ПРУЖИНА, 1/8X1 1/4, STL, ZC (PART OF 8) (**VPI 1-877-846-8243) 1999-2007 02
038 LUG, TRANS 1-2 SHFT (PART OF 8) 2001-2007
039 15635200 LUG, TRANS O/D (4.302) CK2, 3 (MW3) 2001-2007 01
040 LUG, TRANS 3-4 SHFT (PART OF 8) 2001-2007
041 PLUNGER, TRANS BIAS REV O/D (PART OF 8) 2001-2007
045 FORK, 5TH REV SHFT (PART OF 8) 2001-2007
045 12382830 INSERT, 5TH REV SHFT FORK (PART OF 8) (W/NOTCHES) (CENTER) CK2, 3 (MW3) 2001-2007 01
045 12382866 INSERT, 5TH REV SHFT FORK (PART OF 8) (OUTER) CK2, 3 (MW3) 2001-2007 02
046 SHAFT, 5TH REV SHFT (PART OF 8) 2001-2007
047 POPPET, SHFT ROD (PART OF 8) 2001-2007
048 ПРУЖИНА, SHFT ROD POPPET BALL (PART OF 8) 2001-2007
049 PLUG, SHFT BAR HSG EXPN (PART OF 8) 2001-2007
050 03929530 GASKET, B/U LP SW CK2, 3 (MW3) 2001-2007 01
051 19152824 SWITCH, PARK/NEU POSN B/U LP (4.054) (ACDelco #D2208D) CK2, 3 (MW3) 2003-2007 01
051 19152824 SWITCH, PARK/NEU POSN B/U LP (ACDelco #D2208D) CK2, 3 (MW3) 2003-2007 01
052 89059625 PIPE, TRFER CASE VENT CK2, 3 (MW3) 2001-2007 01
054 12376520 SENSOR, VEH SPD (SCREW IN WITH O-RING) (2-WAY MALE) (3.682) (ACDelco #213-347) C1, 2, 3 (LU3, LQ4, LR4, MG5, MW3) 2002-2007 01
054 88864358 SENSOR, VEH SPD (16 BOLT TRANS PAN) (ALL MAKES) C159 (06) (LM7) 2000-2005 01
054 88864358 SENSOR, VEH SPD (16 BOLT TRANS PAN) (ALL MAKES) C259 (06) (LQ4) 2000-2005 01
054 88864358 SENSOR, VEH SPD (16 BOLT TRANS PAN) (ALL MAKES) C259 (06) (LQ4) 2000-2006 01
054 88864358 SENSOR, VEH SPD (16 BOLT TRANS PAN) (ALL MAKES) C259 (06) (L18) 2001-2006 01
054 88864358 SENSOR, VEH SPD (16 BOLT TRANS PAN) (ALL MAKES) C157, 159 (06) (L59) 2002-2006 01
054 88864358 SENSOR, VEH SPD (ALL MAKES) C159 (06-36) (LQ9) 2005-2005 01
054 88864358 SENSOR, VEH SPD (ALL MAKES) C259 (06) (LQ9) 2005-2005 01
055 11515755 БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (VEH SPD SEN HOLE PLUG) (T/W 12345493 REPLCS 25534835) 1999-2007 01
900 15635393 STUD, SHFT CONT HSG CK2, 3 (MW3) 2001-2007 01
901 15637304 PLUG, TRANS OIL FIL (3/4-14X.92, .69 THD) (4.510) CK2, 3 (MW3) 2001-2007 01
903 12548355 BUSHING, TRANS SHFT TWR MT CK2, 3 (MW3) 2001-2007 04
