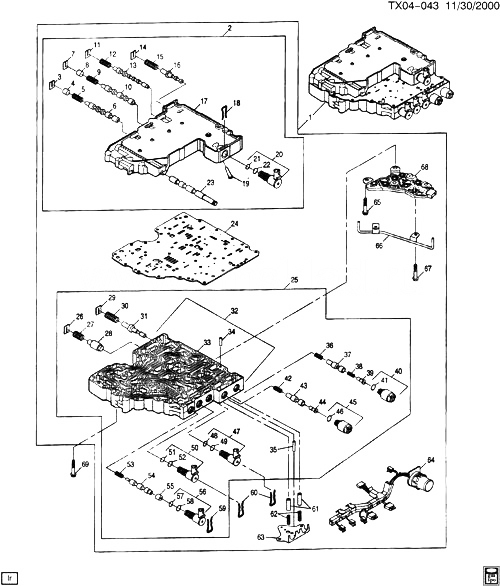

(TX04-043) - 2001-2005 CK2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M74) (ALLISON 1000 SERIES) CONTROL VALVE CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 29541572 VALVE KIT, CONT (W/BODY VLV) (INCLS 2-68) (ACDelco #29541572) CK2, 3 (M74) 2001-2005 01
002 BODY, C/VLV UPR 2001-2005
003 29531022 RETAINER, DTNT REG VLV SPR (4.198) CK2, 3 (M74) 2001-2005 07
004 29536230 PLUG, ACCUM VLV BORE CK2, 3 (M74) 2001-2005 02
005 29536231 ПРУЖИНА, ACCUM VLV CK2, 3 (M74) 2001-2005 02
006 VALVE, D SHFT SOL 2001-2005
007 29531022 RETAINER, DTNT REG VLV SPR (4.198) CK2, 3 (M74) 2001-2005 07
008 PLUG, E SHIFT 2001-2005
009 ПРУЖИНА, SHIFT 2001-2005
010 VALVE, E SHFT SOL 2001-2005
011 29531022 RETAINER, DTNT REG VLV SPR (4.198) CK2, 3 (M74) 2001-2005 07
012 ПРУЖИНА, SHIFT 2001-2005
013 VALVE, F SHFT SOL 2001-2005
014 CLIP, RETAINING 2001-2005
015 ПРУЖИНА, MAIN CONTROL 2001-2005
016 VALVE, MAIN CONTROL 2001-2005
017 BODY, SHIFT VALVE 2001-2005
018 RETAINER, SHFT SOL 2001-2005
019 08661834 SCREEN, TCC SOL VLV (4.122) (ACDelco #8661834) CK2, 3 (M74) 2001-2005 01
020 29536833 VALVE, SHFT SOL (W/PRESS SW) (INCLS 21, 22) (C, D, E, G) CK2, 3 (M74) 2001-2005 04
021 29503381 SEAL, SHFT SOL VLV (O RING) (PART OF 20) (11MM I.D.) (OUTER SEAL) CK2, 3 (M74) 2001-2005 01
022 29503382 SEAL, SHFT SOL VLV (O RING) (PART OF 20) (14MM I.D.) (INNER SEAL) CK2, 3 (M74) 2001-2005 01
023 VALVE, MANUAL SELECTOR 2001-2005
024 PLATE, C/VLV BODY SPCR 2001-2005
025 BODY, C/VLV LWR 2001-2005
026 29531022 RETAINER, DTNT REG VLV SPR (4.198) CK2, 3 (M74) 2001-2005 07
027 ПРУЖИНА, EXHAUST BACKFILL 2001-2005
028 VALVE, EXHAUST BACKFILL 2001-2005
029 29531022 RETAINER, DTNT REG VLV SPR (4.198) CK2, 3 (M74) 2001-2005 07
030 ПРУЖИНА, CONTROL RELIEF 2001-2005
031 VALVE, CONTROL RELIEF 2001-2005
032 BODY, C/VLV LWR 2001-2005
033 BODY, MAIN VALVE 2001-2005
034 PIN, DOWEL 2001-2005
035 PIN, DOWEL 2001-2005
036 ПРУЖИНА, A TRIM VALVE 2001-2005
037 VALVE, PRESS CONT SOL 2001-2005
038 ПРУЖИНА, A TRIM VALVE 2001-2005
039 VALVE, TRIM GRAIN 2001-2005
040 29533074 VALVE, PRESS CONT SOL (INCLS 41) (ACDelco #29533074) CK2, 3 (M74) 2001-2005 01
041 29535518 SEAL, PRESS CONT SOL VLV (O RING) (PART OF 40) CK2, 3 (M74) 2001-2005 01
042 ПРУЖИНА, B TRIM VALVE 2001-2005
043 VALVE, B TRIM 2001-2005
044 VALVE, TRIM GAIN 2001-2005
045 29533075 VALVE, PRESS CONT SOL (INCLS 46) (ACDelco #29533075) CK2, 3 (M74) 2001-2005 01
046 29535517 SEAL, PRESS CONT SOL VLV (O RING) (PART OF 45) CK2, 3 (M74) 2001-2005 01
047 29536833 VALVE, SHFT SOL (W/PRESS SW) (INCLS 48, 49) (C, D, E, G) CK2, 3 (M74) 2001-2005 04
048 29503381 SEAL, SHFT SOL VLV (O RING) (PART OF 47) (11MM I.D.) (OUTER SEAL) CK2, 3 (M74) 2001-2005 01
049 29503382 SEAL, SHFT SOL VLV (O RING) (PART OF 47) (14MM I.D.) (INNER SEAL) CK2, 3 (M74) 2001-2005 01
050 29536833 VALVE, SHFT SOL (W/PRESS SW) (INCLS 51, 52) (C, D, E, G) CK2, 3 (M74) 2001-2005 04
051 29503381 SEAL, SHFT SOL VLV (O RING) (PART OF 50) (11MM I.D.) (OUTER SEAL) CK2, 3 (M74) 2001-2005 01
052 29503382 SEAL, SHFT SOL VLV (O RING) (PART OF 50) (14MM I.D.) (INNER SEAL) CK2, 3 (M74) 2001-2005 01
053 ПРУЖИНА, F TRIM VALVE 2001-2005
054 VALVE, F TRIM 2001-2005
055 SLEEVE, F TRIM 2001-2005
056 08683187 VALVE, TCC PWM SOL (INCLS 57, 58) (4.122) (ACDelco #8683187) CK2, 3 (M74) 2001-2005 01
057 29503381 SEAL, SHFT SOL VLV (O RING) (PART OF 56) (11MM I.D.) (OUTER SEAL) CK2, 3 (M74) 2001-2005 01
058 29503382 SEAL, SHFT SOL VLV (O RING) (PART OF 56) (14MM I.D.) (INNER SEAL) CK2, 3 (M74) 2001-2005 01
059 RETAINER, SHFT SOL 2001-2005
060 RETAINER, SHFT SOL 2001-2005
061 29536230 PLUG, ACCUM VLV BORE CK2, 3 (M74) 2001-2005 02
062 29536231 ПРУЖИНА, ACCUM VLV CK2, 3 (M74) 2001-2005 02
063 29536945 BRACKET, TCC PWM SOL VLV RET (A/B) (4.265) CK2, 3 (M74) 2001-2005 01
064 HARNESS, A/TRNS WRG (PROCURE THROUGH ALLISON DISTRIBUTION NETWORK) 2001-2005 01
064 24213704 SEAL, A/TRNS WRG CONN (O RING) (PART OF HARNESS) (2.559) (ACDelco #24213704) CK1, 2, 3 2001-2005 01
065 29537508 БОЛТ, A/TRNS FLUID PRESS MAN VLV POSN SW (M6X1.0X65) CK2, 3 (M74) 2001-2005 01
066 29536314 DETENT, MAN SHFT (REVERSE SIGNAL TUBE) (ACDelco #29536314) CK2, 3 (M74) 2001-2005 01
067 29537508 БОЛТ, A/TRNS FLUID PRESS MAN VLV POSN SW (M6X1.0X65) CK2, 3 (M74) 2001-2005 01
068 29542585 SWITCH, TRANS FLUID PRESS (INCLS TEMP SENSOR) (ACDelco #29542585) CK2, 3 (M74) 2001-2005 01
069 24573779 БОЛТ, VLV BODY (HFH, M6X1X50) (0.659) CK2, 3 (M74) 2001-2005 38
