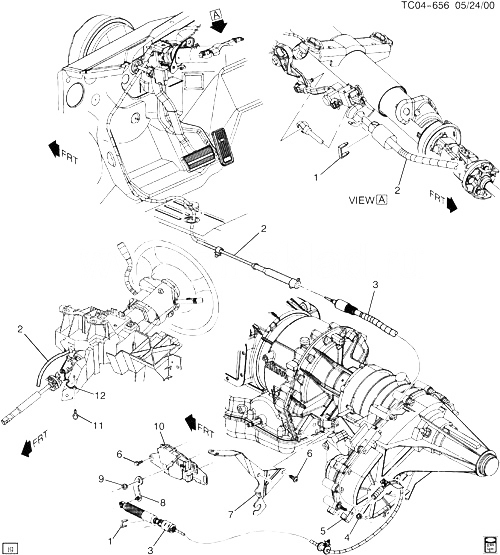

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15116345 |
RETAINER, A/TRNS RANGE SEL LVR CBL
| CK1, 2, 3 (MN8, MT1, M30, M32, M33, M74) |
2004-2005 |
02 |
|
| 002 |
|
CABLE, A/TRNS RANGE SEL LVR (*KIT1) |
|
2001-2005 |
|
| 003 |
|
CABLE, A/TRNS RANGE SEL LVR (AT TRNS) (*KIT1) |
|
2001-2005 |
|
| 004 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (8.915) (ACDelco #11514596) |
|
2001-2005 |
01 |
| 006 |
11561015 |
SCREW-M8X1.25X21.5, 15 THD, 17 OD, 9.8, GMW4700ZNNI BLACK |
|
2001-2005 |
03 |
| 007 |
15150104 |
BRACKET, A/TRNS RANGE SEL LVR CBL |
CK2, 3 (M74) |
2001-2005 |
01 |
| 008 |
15252696 |
LEVER, A/TRNS RANGE SEL LVR EQLZR |
CK2, 3 (M74) |
2005-2005 |
01 |
| 009 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (2.383) |
|
2001-2005 |
01 |
| 010 |
29541852 |
SWITCH KIT, PARK/NEU POSN B/U LP (W/SHIELD) (4.054) (ACDelco #D2262C) (DO NOT USE FOR ALLISON MEDIUM DUTY, MUST SEE AUTHORIZED ALLISON DLR) |
CK2, 3 (M74) |
2005-2005 |
01 |
| 010 |
29541852 |
SWITCH KIT, PARK/NEU POSN B/U LP (W/SHIELD) (ACDelco #D2262C) (DO NOT USE FOR ALLISON MEDIUM DUTY, MUST SEE AUTHORIZED ALLISON DLR) |
CK2, 3 (M74) |
2005-2005 |
01 |
| 011 |
11516567 |
BOLT/SCREW, HEX W/FL WA 17 OD, M6X1X20, 9.8, 4345M, DOG PT |
|
2001-2005 |
01 |
| 012 |
15042027 |
SUPPORT, A/TRNS RANGE SEL LVR CBL |
CK1, 2, 3 |
2001-2005 |
01 |
| K01 |
31028404 |
CABLE KIT, A/TRNS RANGE SEL LVR (CONTAINS BOTH ПРОВОДА) (INCLS 2, 3) |
CK2, 3 (M74) |
2001-2005 |
01 |
