| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

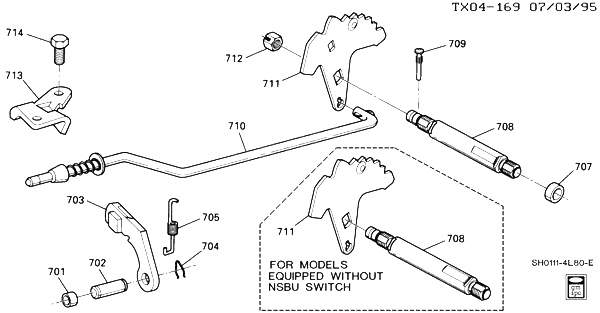

| 701 |
24200224 |
PLUG, PARK PAWL SHF HOLE (.38 DIA) (*KIT1) (ACDelco #24200224) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 702 |
08661692 |
SHAFT, PARK PAWL (ACDelco #8661692) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 703 |
08661693 |
PAWL, PARK (ACDelco #8661693) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 704 |
00148148 |
ПРУЖИНА - TYPE A RETAINER (PARK PAWL SHF) (ACDelco #148148) |
|
1999-2007 |
01 |
| 705 |
24202611 |
ПРУЖИНА, PARK PAWL (ACDelco #24202611) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 707 |
08657163 |
SEAL, MAN SHFT SHF (*KIT1, KIT2) (ACDelco #8657163) |
CK1, 2, 3 (MT1) |
2003-2007 |
01 |
| 708 |
24233978 |
SHAFT, MAN SHFT (USED W/LEVER WHICH HAS A SQUARE HOLE NEUTRAL SWITCH) (ACDelco #24233978) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 709 |
08678347 |
PIN, MAN SHFT SHF (ACDelco #8678347) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 710 |
24200173 |
ACTUATOR, PARK PAWL (ACDelco #24200173) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 711 |
24201000 |
LEVER, MAN SHFT DTNT (SHAFT STICKS OUT OF TRANS FOR SWITCH) (USED W/NEUTRAL SW) (W/SQUARE HOLE USED W/5.555 IN LG YELLOW SHAFT) (ACDelco #24201000) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 712 |
08648178 |
ГАЙКА, MAN SHFT DTNT LVR (M10X1.5X8.0, 1.2) (SLOTTED) (ACDelco #8648178) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 713 |
24200347 |
BRACKET, PARK PAWL ACTR (ACDelco #24200347) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| 714 |
11508687 |
БОЛТ, HEX, M8X1.25X20, 16.88THD, 10.9, PZOR (ACDelco #11508687) |
|
1999-2007 |
01 |
| K01 |
24210954 |
TRANSMISSION KIT, AUTO (SERV OVERHAUL W/PLT, GSKT, SEAL) (INCLS 701, 707) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2, 3, 5, 6 OF THIS TRANSMISSION ASSEMBLY.) (ACDelco #24210954) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
| K02 |
24210955 |
GASKET KIT, A/TRNS SERV (INCLS 707) (FOR ADDITIONAL CONTENTS OF THIS KIT SEE PARTS 2, 5 OF THIS TRANSMISSION ASSEMBLY.) (ACDelco #24210955) |
CK1, 2, 3 (MT1) |
2001-2007 |
01 |
