| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

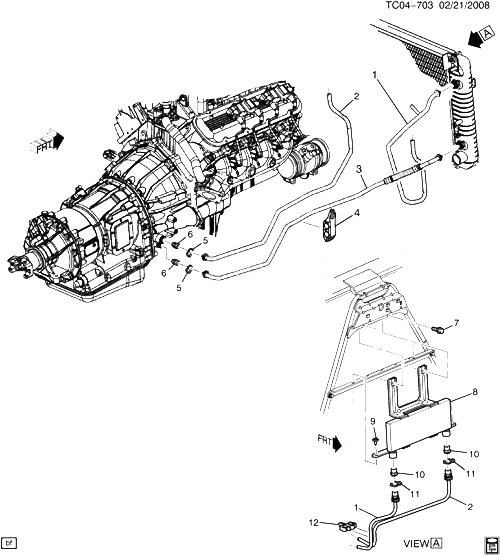

| 001 |
15809056 |
HOSE, TRANS FLUID AUX CLR INL (CODE UCY) |
CK2, 3 (L18, M74, KNP) |
2003-2005 |
01 |
| 002 |
15809052 |
PIPE, TRANS FLUID CLR UPR (OUTLET) (CODE UKA, UDA) |
CK2, 3 (L18, M74, KNP) |
2003-2005 |
01 |
| 003 |
15809061 |
PIPE, TRANS FLUID CLR LWR (INLET) (CODE UNN, UCW) |
CK2, 3 (L18, M74, KNP) |
2003-2005 |
01 |
| 004 |
15753763 |
CLIP, TRANS FLUID CLR PIPE (61.1MM LONG) |
CK2, 3 (M74) |
2001-2005 |
01 |
| 005 |
24205103 |
RETAINER, TRANS FLUID CLR PIPE FTG (EXPANDING ПРУЖИНА WIRE) (ACDelco #24205103)
| CK1, 2, 3 |
2001-2007 |
02 |
|
| 006 |
88996645 |
CONNECTOR KIT, TRANS FLUID CLR INL HOSE (ALSO USED FOR OUTLET) (HAS WHITE RETAINER 88996648) |
CK2, 3 |
2003-2007 |
02 |
| 007 |
11516521 |
БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR) |
|
2001-2007 |
02 |
| 008 |
89040217 |
COOLER, TRANS FLUID AUX (INCLS 10, 11) (CODE 7445, 3959) (ACDelco #89040217) |
CK2, 3 (M74, KNP) |
2001-2005 |
01 |
| 009 |
15149708 |
RETAINER, TRANS FLUID AUX CLR (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505)
| CK1, 2, 3 (KNP) |
2001-2005 |
02 |
|
| 010 |
89040281 |
CONNECTOR, TRANS FLUID CLR PIPE (PART OF 8) (INCLS 11) (AT AUX COOLER ASM) (ACDelco #89040281) |
CK2, 3 (M74, KNP) |
2001-2005 |
02 |
| 011 |
88996647 |
RETAINER, TRANS FLUID CLR PIPE (PART OF 8, 10) (BLUE RETAINER CLIP) |
CK2, 3 |
2001-2007 |
01 |
| 012 |
15767603 |
CLIP, TRANS FLUID CLR PIPE (61.7MM LONG) |
CK1, 2, 3 |
2001-2005 |
01 |
