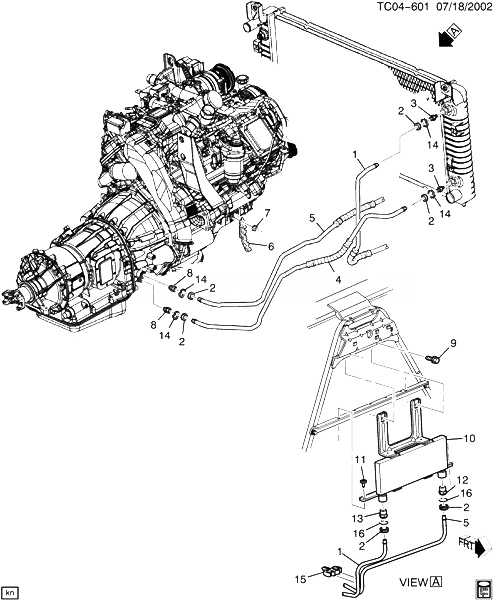

(TC04-601) - 2005 CK2,3 АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ ТРУБКИ МАСЛОРАДИАТОРА АКПП (LLY/6.6-2, M74) CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15170217 HOSE, TRANS FLUID AUX CLR INL (INCLS 2) (CODE UCX) CK2, 3 (LLY, M74, KNP) 2004-2005 01
002 CAP, TRANS FLUID CLR PIPE CONN (PART OF 1, 4, 5) 2005-2005
003 15797464 CONNECTOR, TRANS FLUID CLR PIPE (3/4-16) (W/TRANS OIL CLR PIPE W/20.7MM FROM FLAT OF FLARE TO PIPE END) (ACDelco #15797464) CK2, 3 (LB7, LLY, L18, ML6, MN8, M74, KC4) 2004-2005 02
004 15170215 PIPE, TRANS FLUID CLR LWR (INCLS 2) (INLET) (CODE UCU) (HAS ONE 90 DEGREE BEND AT COOLER END) (ACDelco #15170215) CK2, 3 (LLY, M74, KNP) 2004-2005 01
005 15170219 PIPE, TRANS FLUID CLR UPR (OTLT) (INCLS 2) (CODE UCZ) (HAS TWO 90 DEGREE BENDS AT COOLER END) CK2, 3 (LLY, M74, KNP) 2004-2005 01
006 15753763 CLIP, TRANS FLUID CLR PIPE (61.1MM LONG) CK2, 3 2001-2005 01
007 11514517 ГАЙКА, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (BAT POS NEG CBL CLIP) 2001-2005 01
008 CONNECTOR, TRANS FLUID CLR PIPE (*KIT1) 2005-2005
009 11516521 БОЛТ, HFH M6X1X20, 9.8, 7114M, DOG PT, 14.2 OD (TRANS FLUID CLR) 2001-2005 02
010 89040217 COOLER, TRANS FLUID AUX (INCLS 12, 13, 16) (CODE 7445, 3959) (ACDelco #89040217) CK2, 3 (M74, KNP) 2001-2005 01
011 15149708 RETAINER, TRANS FLUID AUX CLR (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505) CK1, 2, 3 (KNP) 2001-2005 02
012 89040281 CONNECTOR, TRANS FLUID CLR PIPE (SERVICE ADAPTER CONNECTOR) (PART OF 10) (INCLS 16) (AT AUX COOLER ASM) (ACDelco #89040281) CK2, 3 (M74, KNP) 2001-2005 02
013 89040281 CONNECTOR, TRANS FLUID CLR PIPE (SERVICE ADAPTER CONNECTOR) (PART OF 10) (INCLS 16) (AT AUX COOLER ASM) (ACDelco #89040281) CK2, 3 (M74, KNP) 2001-2005 02
014 88996647 RETAINER, TRANS FLUID CLR PIPE (BLUE RETAINER CLIP) CK2, 3 2001-2005 01
014 88996648 RETAINER, TRANS FLUID CLR PIPE (5/8) (E-STYLE) (WHITE RETAINER CLIP) CK2, 3 (LB7, ML6, MN8, M74) 2003-2005 01
014 88996648 RETAINER, TRANS FLUID CLR PIPE (5/8) (E-STYLE) (WHITE RETAINER CLIP) CK2, 3 (LLY, ML6, MN8, M74, MW7) 2004-2005 01
015 15767603 CLIP, TRANS FLUID CLR PIPE (61.7MM LONG) CK1, 2, 3 2001-2005 01
016 RETAINER, TRANS FLUID CLR PIPE FTG (PART OF 10) 2003-2005
K01 88996645 CONNECTOR KIT, TRANS FLUID CLR INL HOSE (ALSO USED FOR OUTLET) (INCLS 8) (HAS WHITE RETAINER 88996648) CK2, 3 2003-2005 02
