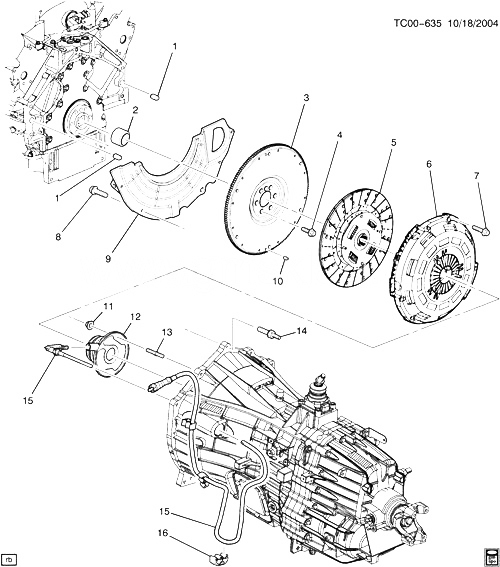

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2001-2006 |
02 |
| 002 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
CK2, 3 (L18, ML6) |
2001-2006 |
01 |
| 003 |
12582964 |
FLYWHEEL, ENG (INCLS 10) |
CK2, 3 (L18, ML6) |
2001-2006 |
01 |
| 004 |
12563485 |
БОЛТ, FLYWHL (M11X1.5X29) |
CK2, 3 (L18, ML6) |
2001-2006 |
06 |
| 005 |
12582970 |
PLATE, CLU DRVN (PART OF 6) |
CK2, 3 (L18, ML6) |
2004-2006 |
01 |
| 006 |
12582965 |
PLATE, CLU PRESS DRVN (W/CVR) (INCLS 5) |
CK2, 3 (L18, ML6) |
2004-2006 |
01 |
| 007 |
12561465 |
БОЛТ, CLU PRESS PLT (HFH M10X1.5X25 10.9 7114M HDR PT, 17.3 FLANGE) |
CK2, 3 (L18, ML6) |
2001-2006 |
06 |
| 008 |
12337828 |
SCREW, HEX W/FLAT WA, TAP, M6.3X1.81X20, 13.2 O.D., AB PT, STL, PZ0R (TRANS CONV CVR) |
|
2001-2006 |
03 |
| 009 |
15150109 |
COVER, TRANS CONV |
CK2, 3 (L18, ML6, M74) |
2001-2005 |
01 |
| 010 |
11505820 |
PIN, DOWEL, M6X20, PL (PART OF 3) |
|
2001-2006 |
02 |
| 011 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (CLU ACTR CYL)
|
2001-2006 |
02 |
|
| 012 |
15019756 |
CYLINDER, CLU ACTR (INCL THROWOUT BEARING) (INCLS 15, 16) |
CK2, 3 (ML6) |
2001-2006 |
01 |
| 013 |
88984332 |
STUD, TRANS |
CK2, 3 (ML6) |
2001-2006 |
02 |
| 014 |
15724226 |
STUD, TRANS (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| CK2, 3 (ML6) |
2002-2006 |
07 |
|
| 015 |
|
HOSE, CLU ACTR CYL (PART OF 12) |
|
2001-2006 |
|
| 016 |
88958852 |
CLIP, CLU ACTR CYL (PART OF 12) (LENGTH 27.6MM) |
CK2, 3 (ML6) |
2001-2006 |
01 |
