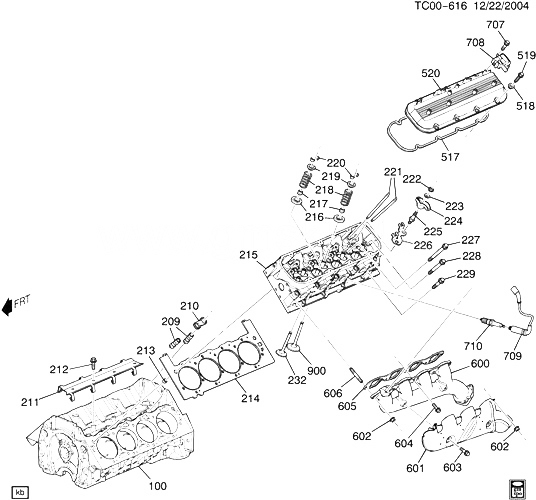

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 100 |
|
BLOCK, ENG (MCHG) |
|
2004-2007 |
|
| 209 |
17120060 |
LIFTER, VLV (ACDelco #HL121) |
CK2, 3 (L18) |
2004-2007 |
16 |
| 210 |
12551397 |
GUIDE, VLV LFTR (ACCOMMODATES 2 VLV LFTRS EACH) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 211 |
12551399 |
RETAINER, VLV LFTR GDE (1 PC) (RESTRICTOR) |
CK2, 3 (L18) |
2004-2007 |
01 |
| 212 |
11570082 |
БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (VLV LFTR GDE RET) (ACDelco #11570082)
|
2004-2007 |
04 |
|
| 213 |
12558081 |
PIN, CYL HD LOC (1/2 X 5/8 O.D.) |
CK2, 3 (L18) |
2004-2007 |
04 |
| 214 |
12558163 |
GASKET, CYL HD |
CK2, 3 (L18) |
2004-2007 |
01 |
| 214 |
12558164 |
GASKET, CYL HD |
CK2, 3 (L18) |
2004-2007 |
01 |
| 215 |
12581476 |
HEAD, CYL (INCLS SEATS, GUIDES) (USE SILVER INTAKE BOLTS WHEN USING INTAKE GASKET WITHOUT SNOUTS, USE BLACK INTAKE BOLTS WHEN USING GASKET WITH SNOUTS) |
CK2, 3 (L18) |
2004-2007 |
01 |
| 215 |
12581477 |
HEAD, CYL (INCLS SEATS, GUIDES) (USE SILVER INTAKE BOLTS WHEN USING INTAKE GASKET WITHOUT SNOUTS, USE-BLACK INTAKE BOLTS WHEN USING GASKET WITH SNOUTS) |
CK2, 3 (L18) |
2004-2007 |
01 |
| 216 |
10240899 |
ROTATOR, VLV |
CK2, 3 (L18) |
2004-2007 |
16 |
| 217 |
12555601 |
SEAL, VLV STEM OIL |
CK2, 3 (L18) |
2004-2007 |
16 |
| 218 |
12565763 |
ПРУЖИНА, VLV |
CK2, 3 (L18) |
2004-2007 |
16 |
| 219 |
10213464 |
CAP, VLV SPR |
CK2, 3 (L18) |
2004-2007 |
16 |
| 220 |
03947880 |
KEY, VLV STEM |
CK2, 3 (L18) |
2004-2007 |
32 |
| 221 |
12556295 |
ROD, VLV PUSH (INTAKE) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 221 |
12556296 |
ROD, VLV PUSH (EXHAUST) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 222 |
14102542 |
ГАЙКА, VLV RKR ARM (13MM HEX, M8X1.0-6H) (NON-ADJUSTABLE)
| CK2, 3 (L18) |
2004-2007 |
16 |
|
| 223 |
12556299 |
BALL, VLV RKR ARM |
CK2, 3 (L18) |
2004-2007 |
16 |
| 224 |
12556298 |
ARM, VLV RKR |
CK2, 3 (L18) |
2004-2007 |
16 |
| 225 |
12569721 |
STUD, VLV RKR ARM PIV (HEX SPL, M10X1.5X19, M8X1.0X18, 20.8L X11 OD SHLD, 65.4 TL, 10.9) |
CK2, 3 (L18) |
2004-2007 |
16 |
| 226 |
12562369 |
GUIDE, VLV LFTR PUSH ROD |
CK2, 3 (L18) |
2004-2007 |
08 |
| 227 |
11519111 |
БОЛТ, CYL HD (M10X1.5X103) |
CK2, 3 (L18) |
2004-2007 |
24 |
| 228 |
11519112 |
БОЛТ, CYL HD (M10X1.5X86) |
CK2, 3 (L18) |
2004-2007 |
04 |
| 229 |
11519113 |
БОЛТ, CYL HD (M10X1.5X52) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 232 |
12558849 |
VALVE, EXH (STD) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 232 |
12559084 |
VALVE, EXH (0.003 O.S.) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 232 |
12559085 |
VALVE, EXH (0.015 O.S.) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 232 |
12559086 |
VALVE, EXH (0.030 O.S.) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 517 |
12559597 |
GASKET, VLV RKR ARM CVR |
CK2, 3 (L18) |
2004-2007 |
02 |
| 518 |
12557831 |
GASKET, VLV RKR ARM CVR BOLT (GRAY) (0.413) |
CK2, 3 (L18) |
2004-2007 |
14 |
| 519 |
12559598 |
БОЛТ, VLV RKR ARM CVR (M6X1.0XX26) |
CK2, 3 (L18) |
2004-2007 |
14 |
| 520 |
12570555 |
COVER, VLV RKR ARM (INCLS COVER, GASKET) (PART IS COATED BLACK) (FOR 2ND DES SEE 12591507) |
CK2, 3 (L18) (1ST DES) |
2004-2005 |
02 |
| 520 |
12591507 |
COVER, VLV RKR ARM (INCL GASKET, COVER) (PART IS ALUMINUM) (FOR 1ST DES SEE 12570555) |
CK2, 3 (L18) (2ND DES) |
2004-2005 |
02 |
| 600 |
12557287 |
MANIFOLD, EXH (WITHOUT A.I.R.) |
CK2, 3 (L18) |
2004-2007 |
01 |
| 600 |
12601751 |
MANIFOLD, EXH |
CK2, 3 (L18) |
2004-2007 |
01 |
| 601 |
12555623 |
SHIELD, EXH MANIF HT |
CK2, 3 (L18) |
2004-2007 |
01 |
| 601 |
12576124 |
SHIELD, EXH MANIF HT |
CK2, 3 (L18) |
2004-2007 |
01 |
| 602 |
11516076 |
ГАЙКА, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MANIF)
|
2004-2007 |
14 |
|
| 603 |
11515755 |
БОЛТ, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (EXH MANIF H/SHLD) (T/W 12345493 REPLCS 25534835)
|
2004-2007 |
04 |
|
| 604 |
11570082 |
БОЛТ, EXH MANIF (8.900) (ACDelco #11570082)
| CK2, 3 (L18) |
2004-2006 |
02 |
|
| 605 |
12558275 |
GASKET, EXH MANIF |
CK2, 3 (L18) |
2004-2007 |
02 |
| 606 |
11609296 |
STUD, EXH MANIF (STRAIGHT, M8X1.25X30, M8X1.25XX12.5, EXT) (USED AT #1, 2, 3, 5, 6, 7, 8 RH 1, 2, 3, 4, 6, 7, 8 LH) |
CK2, 3 (L18) |
2004-2007 |
14 |
| 707 |
11516480 |
БОЛТ, IGN COIL (M6X1X25-10MM SOC) |
CK2, 3 (L18) |
2004-2005 |
16 |
| 708 |
12558693 |
COIL, IGN (STAMPED 12556393) (CONSISTS OF A COIL ONLY) (MITSUBISHI) (ACDelco #D581)
| CK2, 3 (L18) |
2004-2007 |
08 |
|
| 709 |
88984270 |
WIRE, SPLG (STYLE 12HHH, 7MM DIA, 12IN LG) (ACDelco #355E) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 710 |
12578277 |
СВЕЧА, (ACDelco #41-983) (PLATINUM PLUG)
| CK2, 3 (L18) |
2004-2007 |
08 |
|
| 900 |
12556317 |
VALVE, INT (STD) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 900 |
12562343 |
VALVE, INT (0.003 O.S.) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 900 |
12562344 |
VALVE, INT (0.015 O.S.) |
CK2, 3 (L18) |
2004-2007 |
08 |
| 900 |
12562345 |
VALVE, INT (0.030 O.S.) |
CK2, 3 (L18) |
2004-2007 |
08 |
