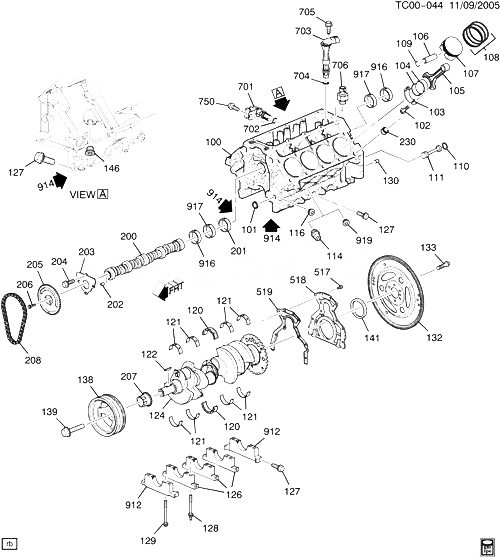

(TC00-044) - 2005-2007 CK1 ДВИГАТЕЛЬ В СБОРЕ-5.3L V8 ЧАСТЬ 1 БЛОК ЦИЛИНДРОВ СОПРЯЖЕННЫЕ ДЕТАЛИ (L59/5.3Z) CADILLAC - ESCALADE ESV (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
100 BLOCK, ENG 2005-2007
101 09427693 PLUG, CUP 5/8, CORROSION RESISTANT STL (ENG BLK OIL GAL) (1.531) 2005-2007 01
102 11570662 БОЛТ, CONN ROD (PART OF 105) (MJ9X44, 13 THD, 15.5 OD, 12.9, PL) CK1 (L59) 2005-2007 02
102 12568069 БОЛТ, CONN ROD (PART OF 105) (M9X1X43) CK1 (L59) 2005-2007 16
103 CAP, CONN ROD (PART OF 105) 2005-2007
104 12493712 BEARING KIT, CONN ROD (STD) CK1 (L59) 2005-2007 08
105 12607475 ROD, CONN (INCLS 102, 103) (USED WITH FLOATING PIN PISTON) (WITH PIN RETAINING CLIP) CK1 (L59) 2005-2007 08
106 PIN, PSTN (PART OF 107) 2005-2007
107 89017579 PISTON, (W/PIN) (INCLS 106, 109) (STD) CK1 (L59) 2005-2007 08
107 89017580 PISTON, (W/PIN) (INCLS 106, 109) (0.5MM O.S.) CK1 (L59) 2005-2007 08
108 12456338 RING KIT, PSTN (STD) CK1 (L59) 2005-2007 08
108 12456339 RING KIT, PSTN (.5MM O.S.) CK1 (L59) 2005-2007 08
109 12569638 RETAINER, PSTN PIN (PART OF 107) CK1 (L59) 2005-2007 16
110 SEAL, ENG BLK OIL GAL PLUG (O RING) (PART OF 111) 2005-2007
111 12573460 PLUG, ENG BLK OIL GAL (INCLS 110) (15.68MM DIA) (INCLS O-RING SEAL (N.S.S.) CK1 (L59) 2005-2007 01
114 12560179 HEATER, ENG COOL (W/3-PIN AND BRASS COLORED2ND DES 12586687.) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, K05) (1ST DES) 2005-2005 01
114 12586687 HEATER, ENG COOL (W/2-PIN AND SILVER COLORED 1ST DESIGN 12560179.) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, K05) (2ND DES) 2005-2005 01
116 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2005-2007 01
120 89017572 BEARING KIT, CR/SHF THR (STD) (#3) CK1 (L59) 2005-2007 01
121 89017571 BEARING KIT, CR/SHF (#1, 2, 4, 5) (STD) CK1 (L59) 2005-2007 04
122 12561513 KEY, CR/SHF BALR (4.8MMX37.5MM) CK1 (L59) 2005-2007 01
124 12574522 CRANKSHAFT, CK1 (L59) 2005-2007 01
126 CAP, CR/SHF BRG 2005-2007
127 12556127 БОЛТ, CR/SHF BRG CAP (SIDE) (SHORT) (M8X1.25X24) CK1 (L59) 2005-2007 10
128 12560273 STUD, CR/SHF BRG CAP (HFH, M10X2X23, M8X1.25X11, 113.5 TOTAL LONG) CK1 (L59, M30) 2005-2007 10
129 12560272 БОЛТ, CR/SHF BRG CAP (LONG) (M10X2X102.5, 24.5) CK1 (L59) 2005-2007 10
130 01453658 PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) 2005-2007 02
132 12606620 PLATE, A/TRNS FLEX (AUTO TRANSMISSION) CK1 (L59, M30) 2005-2006 01
133 11569956 БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER) CK1 (L59, M30) 2005-2005 06
138 12576652 BALANCER, CR/SHF CK1 (L59) 2005-2007 01
139 12557840 БОЛТ, CR/SHF BALR (M16X2.0X103) CK1 (L59) 2005-2007 01
141 89060436 SEAL KIT, CR/SHF RR OIL (REVERSE LIP SEAL, INCL INSTRUCTION SHEET) CK1 (L59) 2005-2007 01
146 11588949 PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) 2005-2007 02
200 12560967 CAMSHAFT, ENG (INCLS 202) CK1 (L59) 2005-2007 01
201 19167218 BEARING, CM/SHF (POSN #3) CK1 (L59) 2005-2007 01
202 12554553 PIN, CM/SHF SPKT LOC (PART OF 200) (1/4X5/8) CK1 (L59) 2005-2007 01
203 12589016 RETAINER, CM/SHF (USE WITH BOLT 11561455) CK1 (L59) 2005-2007 01
204 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF RET) 2005-2007 04
205 12576407 SPROCKET, CM/SHF CK1 (L59) 2005-2007 01
206 12556127 БОЛТ, CM/SHF SPKT (M8X1.25X24) (0.056) CK1 (L59) 2005-2007 03
207 12556582 SPROCKET, CR/SHF CK1 (L59) 2005-2007 01
208 12586482 CHAIN, CM/SHF TMG CK1 (L59) 2005-2007 01
230 12570326 PIN, CYL HD LOC CK1 (L59) 2005-2007 04
517 12556127 БОЛТ, CR/SHF RR OIL SEAL HSG (M8X1.25X24) (0.056) CK1 (L59) 2005-2006 12
518 ШЛАНГИ, CR/SHF RR OIL SEAL 2005-2006
519 12593587 GASKET, CR/SHF RR OIL SEAL HSG CK1 (L59) 2005-2007 01
701 12560228 SENSOR, CR/SHF POSN (INCLS 702) (ACDelco #213-354) CK1 (L59) 2005-2007 01
702 SEAL, O-RING CR/SHF POSN (PART OF 701) 2005-2007
703 12561211 SENSOR, CM/SHF POSN (INCLS 704) (ACDelco #213-363) CK1 (L59) 2005-2007 01
704 SEAL, CM/SHF SENSOR (PART OF 703) 2005-2007
705 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (CM/SHF POSN SEN) 2005-2007 01
706 12616646 SENSOR, ENG OIL PRESS (ACDelco #D1846A) CK1, 2, 3 (LM7, LR4, LQ4, LQ9, L59) 2005-2007 01
750 11515756 БОЛТ, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (BOLT, CR/SHF POSN SEN) 2005-2007 01
912 CAP, CR/SHF BRG 2005-2007
914 12346004 SEALANT, LOCTITE PIPE-W/TEFLON 50CC TUBE (МАСЛЯНЫЙ ПОДДОН) 2005-2007 AR
916 19167383 BEARING, CM/SHF (POSN #1, 5) CK1 (L59) 2005-2007 02
917 12453167 BEARING, CM/SHF (# 2, 4) CK1 (L59) 2005-2007 02
