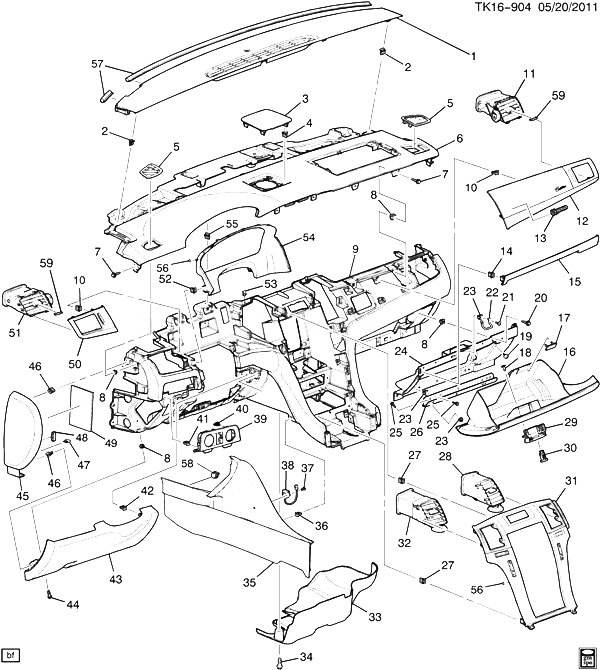

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20844035 |
PANEL, I/P UPR TR (W/ W/S DEFR NOZ GRL) (INCLS 2, 57) (EBONY) (W/O SI OUTLET GRILLES) |
CK1, 2, 3 (19I, 85I) |
2012-2013 |
01 |
| 001 |
20844038 |
PANEL, I/P TR (INCLS 2, 57) (COCOA) (16.080) (W/ W/S DEFR NOZ GRL) |
CK1, 2 (39I, 41I) |
2012-2013 |
01 |
| 002 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1) |
|
2009-2013 |
07 |
| 003 |
15221850 |
GRILLE, RDO FRT SPKR (INCLS 4) (EBONY) |
CK1 (06-36) (Z75, 19I) |
2009-2013 |
01 |
| 003 |
15221851 |
GRILLE, RDO FRT SPKR (INCLS 4) (COCOA) |
CK1 (06-36) (Z75, 39I, 41I) |
2009-2013 |
01 |
| 004 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 3) |
|
2009-2013 |
04 |
| 005 |
15813116 |
GRILLE, SI WDO DEFG OTLT (EBONY) (*KIT2) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| 005 |
15813143 |
GRILLE, SI WDO DEFG OTLT (EBONY) (*KIT2) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| 005 |
15813144 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| 005 |
15813144 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (ULT, Z75, 41I) |
2009-2013 |
01 |
| 005 |
15813117 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| 005 |
15813117 |
GRILLE, SI WDO DEFG OTLT (COCOA) (*KIT2) |
CK1 (ULT, Z75, 41I) |
2009-2013 |
01 |
| 006 |
|
PANEL, I/P UPR TR (*KIT2) |
|
2009-2013 |
|
| 007 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P UPR TR PAD) (9.665) |
|
2009-2013 |
08 |
| 008 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (PART OF 9) (10.701) |
|
2009-2013 |
08 |
| 009 |
22845822 |
PANEL, I/P LWR TR (INCLS 8, 53) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2009-2013 |
01 |
| 009 |
22845823 |
PANEL, I/P LWR TR (INCLS 8, 53) (EBONY) |
CK1 (06) (ULT, Z75, 19I) |
2013-2013 |
01 |
| 009 |
22845825 |
PANEL, I/P LWR TR (INCLS 8, 53) (EBONY) |
CK1 (Z75, 19I) (EXC ULT) |
2013-2013 |
01 |
| 009 |
22845826 |
PANEL, I/P LWR TR (INCLS 8, 53) (CASHMERE) |
CK1 (Z75, 39I) |
2013-2013 |
01 |
| 010 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12, 50) |
|
2009-2013 |
08 |
| 011 |
20935580 |
DEFLECTOR, I/P OTR AIR OTLT (INCLS 59) (PART OF 12) (EBONY) |
CK1 (Z75) |
2009-2013 |
01 |
| 012 |
20935552 |
PLATE, I/P TR (INCLS 10, 11, 59) (RUBY) |
CK1 (Z75, 19I) (EXC HP2) |
2009-2013 |
01 |
| 012 |
20935553 |
PLATE, I/P TR (INCLS 10, 11, 59) (CHOCOLATE) |
CK1 (Z75, 39I) (EXC HP2) |
2009-2013 |
01 |
| 012 |
20935569 |
PLATE, I/P TR (INCLS 10, 11, 13) (CHOCOLATE) |
CK1 (HP2, Z75, 39I) (EXC AX4) |
2009-2013 |
01 |
| 012 |
20935568 |
PLATE, I/P TR (INCLS 10, 11, 13) (RUBY) |
CK1 (HP2, Z75, 19I) (EXC AX4, ULT) |
2009-2013 |
01 |
| 012 |
20935555 |
PLATE, I/P TR (INCLS 10, 11, 59) (OLIVE) |
CK1 (06) (ULT, Z75, 19I, 41I) |
2012-2013 |
01 |
| 012 |
20935552 |
PLATE, I/P TR (INCLS 10, 11) (RUBY) |
CK1 (AX4, HP2, Z75, 19I) (EXPORT) |
2009-2013 |
01 |
| 012 |
20935553 |
PLATE, I/P TR (INCLS 10, 11) (CHOCOLATE) |
CK1 (AX4, HP2, Z75, 39I) (EXPORT) |
2009-2013 |
01 |
| 013 |
25971121 |
EMBLEM, I/P (PART OF 12) |
CK1 (HP2, Z75) (EXC AX4, ULT) |
2009-2013 |
01 |
| 014 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 15) |
|
2009-2013 |
03 |
| 015 |
15854787 |
COVER, I/P COMPT ACC HOLE (INCLS 14) (EBONY) (GLOVE BOX) |
CK1, 2, 3 |
2010-2013 |
01 |
| 016 |
|
DOOR, I/P COMPT (*KIT1) |
|
2009-2013 |
|
| 017 |
15854854 |
BUMPER, I/P COMPT DR STOP (BIN) (*KIT1) (16.110) |
CK1, 2, 3 |
2009-2013 |
01 |
| 018 |
11609509 |
SCREW, LG RD WA HD, C/R, HI-LO, 4.2X1.41X13, 11.35-OD, B PT, 6010, GMW4205 (I/P COMPT DR) (*KIT1) |
|
2009-2013 |
03 |
| 019 |
10446032 |
BUMPER, I/P COMPT (8.80 DIA) (CLOSED-STOP) (FRAME) (*KIT1) (10.263) |
CK1 (Z75) |
2009-2013 |
02 |
| 020 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P COMPT DR) (9.665) |
|
2009-2013 |
05 |
| 021 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (I/P COMPT DR LAT STKR) (*KIT1) |
|
2009-2013 |
02 |
| 022 |
|
STRIKER, I/P COMPT DR LAT (*KIT1) |
|
2009-2013 |
|
| 023 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P LWR TIE BAR) (*KIT1) (10.701) |
|
2009-2013 |
05 |
| 024 |
|
FRAME, I/P COMPT DR OPG (*KIT1) |
|
2009-2013 |
|
| 025 |
11589015 |
BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (I/P COMPT DR HGE) (*KIT1) |
|
2009-2013 |
05 |
| 026 |
|
HINGE, I/P COMPT DR (*KIT1) |
|
2009-2013 |
|
| 027 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (I/P ACSRY CTR TR PLT) (*KIT3) |
|
2009-2013 |
07 |
| 028 |
20935618 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3) |
CK1 (ULT, 41I, Z75) |
2009-2013 |
01 |
| 028 |
20935618 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3) |
CK1 (Z75, 19I, 39I) |
2009-2013 |
01 |
| 029 |
25960443 |
LATCH, I/P COMPT DR (EBONY) (W/LOCK HOLE) (*KIT1) (10.268) |
CK1, 2, 3 (19I, 85I) |
2010-2013 |
01 |
| 029 |
25960448 |
LATCH, I/P COMPT DR (CASHMERE) (W/LOCK) (*KIT1) (10.268) |
CK1, 2, 3 (ULT, Z75, 41I) |
2013-2013 |
01 |
| 029 |
25960448 |
LATCH, I/P COMPT DR (CASHMERE) (W/LOCK) (*KIT1) (10.268) |
CK1, 2, 3 (33I, 39I) |
2013-2013 |
01 |
| 030 |
22819134 |
CYLINDER KIT, I/P COMPT DR LK (UNCODED) |
CK1, 2, 3 |
2009-2013 |
01 |
| 031 |
|
PLATE, I/P ACSRY CTR TR (*KIT3) |
CK (41I) |
2009-2013 |
|
| 031 |
25878605 |
PLATE, I/P ACSRY CTR TR (RUBY BURLWOOD) (W/O DEFLECTORS) (*KIT3) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| 031 |
25878606 |
PLATE, I/P ACSRY CTR TR (CHOCOLATE BURL) (W/O DEFLECTORS) (*KIT3) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| 032 |
20935616 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3) |
CK1 (ULT, 41I, Z75) |
2009-2013 |
01 |
| 032 |
20935616 |
DEFLECTOR, I/P CTR AIR OTLT (EBONY) (*KIT3) |
CK1 (Z75, 19I, 39I) |
2009-2013 |
01 |
| 033 |
10365827 |
INSULATOR, I/P (W/O FELT TAPE) |
CK1, 2, 3 (EXC D07) |
2009-2013 |
01 |
| 033 |
25790726 |
INSULATOR, I/P (W/FELT TAPE) |
CK1, 2, 3 (D07) |
2009-2013 |
01 |
| 034 |
11517774 |
BOLT, HEX, M4.2X1.41X20, 14.25 OD, 6010M, 6138M, TAP, AB-PT (I/P INSL) |
|
2009-2013 |
03 |
| 035 |
15238666 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36) (EBONY) (16.081) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| 035 |
25901544 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36) (CASHMERE) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| 035 |
25844279 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36-38, 58) (EBONY) |
CK1 (Z75, 19I) |
2010-2013 |
01 |
| 035 |
25901545 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36-38, 58) (CASHMERE) |
CK1 (Z75, 39I) |
2010-2013 |
01 |
| 035 |
20999321 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36-38, 58) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2011-2013 |
01 |
| 035 |
20999322 |
PANEL, F/FLR CNSL SI TR FRT (INCLS 36) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2011-2013 |
01 |
| 036 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 35) |
|
2009-2013 |
04 |
| 037 |
11588920 |
SCREW, W/RND WA, M3.5X1.59X9.5, 6 THD, 7 O.D., GM512M, GMW3044 (PART OF 35) |
|
2009-2013 |
02 |
| 039 |
15221547 |
PLATE, HDLP SW TR (INCLS 40, 41) (EBONY) |
CK1 (06-36) (Z75, 19I, 39I, 41I) (EXC HP2) |
2009-2013 |
01 |
| 039 |
15907806 |
PLATE, HDLP SW TR (INCLS 40, 41) (EBONY) |
K107 (06) (HP2, Z75, 19I, 39I, 41I) |
2009-2013 |
01 |
| 040 |
11610112 |
CLIP, HDLP (PART OF 39) (10.4 X 13 X 9) (14.683) |
CK107 (06) (HP2, Z75) |
2009-2013 |
02 |
| 040 |
11610112 |
CLIP, HDLP (PART OF 39) (10.4 X 13 X 9) (14.683) |
CK1 (06-36) (Z75) (EXC HP2) |
2009-2013 |
02 |
| 041 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 39) |
|
2009-2013 |
02 |
| 042 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 43) |
|
2009-2013 |
03 |
| 043 |
22773450 |
BOLSTER, I/P KNEE (INCLS 42) (LINEN) |
CK1 (06) (ULT, Z75, 41I) (EXC JL1) |
2010-2013 |
01 |
| 043 |
22773443 |
BOLSTER, I/P KNEE (INCLS 42) (EBONY) |
CK1, 2 (06-36) (JL1, 19I) |
2010-2013 |
01 |
| 043 |
22773448 |
BOLSTER, I/P KNEE (INCLS 42) (CASHMERE) |
CK1 (06-36) (33I, 39I) (EXC JL1) |
2010-2013 |
01 |
| 043 |
22773444 |
BOLSTER, I/P KNEE (INCLS 42) (CASHMERE) |
CK1, 2 (06-36) (JL1, 33I, 39I) |
2010-2013 |
01 |
| 043 |
22773447 |
BOLSTER, I/P KNEE (INCLS 42) (EBONY) |
CK1 (06-36) (19I) (EXC JL1) |
2010-2013 |
01 |
| 044 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P DRVR KNEE BOLS) (9.665) |
|
2009-2013 |
02 |
| 045 |
25901548 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46) (CASHMERE) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| 045 |
25896366 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46) (LINEN) |
CK1, 2 (41I) |
2010-2013 |
01 |
| 045 |
25855840 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46) (EBONY) |
CK1, 2, 3 (19I, 85I) |
2012-2013 |
01 |
| 045 |
22925343 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (EBONY) (IF VEH HAS 30 AMP FUSE ORDER LABEL 25940508) |
CK1, 2, 3 (19I, 85I) |
2012-2013 |
01 |
| 045 |
22925347 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (LINEN) (IF VEH HAS 30 AMP FUSE ORDER LABEL 25940508) |
CK1, 2, 3 (41I) |
2009-2013 |
01 |
| 045 |
22925348 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 46-49) (CASHMERE) (IF VEH HAS 30 AMP FUSE ORDER LABEL 25940508) |
CK1, 2, 3 (Z75, 39I) |
2012-2013 |
01 |
| 046 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 45) |
|
2009-2013 |
06 |
| 047 |
88909749 |
FUSE, 3A, MINI, VIOLET (PART OF 45) (8.965) (ACDelco #ATM3-25) |
|
2009-2013 |
01 |
| 047 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 45) (ACDelco #ATM15-25) |
|
2009-2013 |
01 |
| 047 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 45) (ACDelco #ATM25-25) |
|
2009-2013 |
01 |
| 047 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 45) |
|
2009-2013 |
01 |
| 047 |
88861352 |
FUSE, 20A, MINI, YELLOW (PART OF 45) (ACDelco #ATM20) |
|
2009-2013 |
01 |
| 048 |
12084791 |
PULLER, FUSE (PART OF 45) (MINI) (I/P COVER) |
CK1, 2, 3 |
2009-2013 |
01 |
| 049 |
22925349 |
LABEL, I/P WRG HARN FUSE BLK IDENT (PART OF 45) |
CK1, 2, 3 |
2012-2013 |
01 |
| 050 |
15876619 |
PLATE, I/P TR (INCLS 10, 51, 59) (BURL) |
CK1 (06) (ULT, Z75, 41I) |
2009-2013 |
01 |
| 050 |
20935548 |
PLATE, I/P TR (INCLS 10, 51, 59) (CHOCOLATE) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| 050 |
20935547 |
PLATE, I/P TR (INCLS 10, 51, 59) (RUBY) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| 051 |
20935578 |
DEFLECTOR, I/P OTR AIR OTLT (PART OF 50) (INCLS 59) (EBONY) |
CK1 (Z75) |
2009-2013 |
01 |
| 052 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 54) |
|
2009-2013 |
04 |
| 053 |
11513599 |
NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 9) (ACDelco #11513599) |
|
2009-2013 |
04 |
| 054 |
25914313 |
PLATE, I/P CSTR TR (INCLS 52, 56) (EBONY) |
CK1 (06) (ULT, Z75, 41I) |
2009-2013 |
01 |
| 054 |
25914313 |
PLATE, I/P CSTR TR (INCLS 52, 56) (EBONY) |
CK1 (Z75, 19I, 39I) |
2009-2013 |
01 |
| 055 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (I/P UPR TR PLT) (*KIT2) |
|
2009-2013 |
05 |
| 056 |
25603681 |
INSULATOR, I/P CSTR TR PLT (PART OF 54) (*KIT3) |
CK1 (Z75) |
2009-2013 |
06 |
| 057 |
|
SEAL, I/P UPR T/PNL (PART OF 1) |
|
2009-2013 |
|
| 058 |
11562257 |
RETAINER, I/P LWR TR PAD BRKT (PUSH ON) (PART OF 35) (19.5 X 30.4 X 1.8) (14.683) |
CK1 (Z75) |
2009-2013 |
03 |
| 059 |
22792288 |
KNOB, I/P OTR AIR OTLT (PART OF 11, 12, 50, 51) |
CK1 (06-36) (Z75) |
2009-2013 |
01 |
| K01 |
25965505 |
DOOR, I/P COMPT (INCLS 16-19, 21-26, 29) (CASHMERE) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| K01 |
25965502 |
DOOR, I/P COMPT (INCLS 16-19, 21-26, 29) (LINEN) |
CK1 (06) (ULT, Z75, 41I) |
2009-2013 |
01 |
| K01 |
20925891 |
DOOR, I/P COMPT (INCLS 16-19, 21-26, 29) (EBONY) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| K02 |
22845828 |
PANEL, I/P UPR TR (INCLS 5, 6, 55) (COCOA) |
CK1 (06) (ULT, Z75, 41I) |
2009-2013 |
01 |
| K02 |
22845829 |
PANEL, I/P UPR TR (INCLS 5, 6, 55) |
CK1 (06) (ULT, Z75, 19I) |
2013-2013 |
01 |
| K02 |
22845831 |
PANEL, I/P UPR TR (INCLS 5, 6, 55) (EBONY) |
CK1 (Z75, 19I) (EXC ULT) |
2013-2013 |
01 |
| K02 |
22845832 |
PANEL, I/P UPR TR (INCLS 5, 6, 55) (COCOA) |
CK1 (Z75, 39I) |
2013-2013 |
01 |
| K02 |
22845831 |
PANEL, I/P UPR TR (INCLS 5, 6, 55) (EBONY) |
CK1 (Z75, 19I) (EXC ULT) |
2012-2013 |
01 |
| K03 |
25878605 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 56) (RUBY BURLWOOD) (W/O DEFLECTORS) |
CK1 (Z75, 19I) |
2009-2013 |
01 |
| K03 |
25878606 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 56) (CHOCOLATE BURL) (W/O DEFLECTORS) |
CK1 (Z75, 39I) |
2009-2013 |
01 |
| K03 |
22815508 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 56) (PLATINUM) (W/PLATE DEFLECTORS) |
CK1 (06) (ULT, Y91, Z75, 19I, 41I) (EXC SLT, STZ) |
2013-2013 |
01 |
| K03 |
22815510 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 56) (RUBY) (W/PLATE DEFLECTORS) |
CK1 (Z75, 19I) (EXC ULT) |
2013-2013 |
01 |
| K03 |
22815511 |
PLATE, I/P ACSRY CTR TR (INCLS 27, 28, 31, 32, 56) (CHOCOLATE) (W/PLATE DEFLECTORS) |
CK1 (Z75, 39I) |
2013-2013 |
01 |
