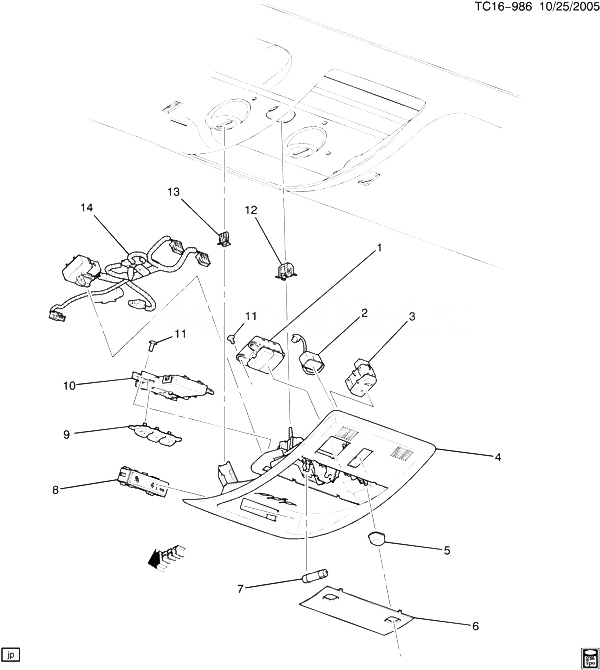

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25786403 |
SWITCH, SUN RF (PART OF 4) (EBONY) (BLUE LAGOON BACK LIGHTING) |
CK1, 2 (06-36) (DK8) |
2008-2013 |
01 |
| 001 |
25786404 |
SWITCH, SUN RF (PART OF 4) (TRUE WHITE BACK LIGHTING) |
K1 (06) (CF5, DK8, Z75) |
2008-2013 |
01 |
| 002 |
13576669 |
MICROPHONE, MOBILE TEL (PART OF 4) (2-CAVITY) |
CK1, 2, 3 (DK8) |
2012-2013 |
01 |
| 003 |
25845571 |
SWITCH, L/GATE ACTR (PART OF 4) (PART OF RF CONSOLE) |
CK1 (06) (DK8, Z75) |
2007-2013 |
01 |
| 004 |
22780442 |
CONSOLE, RF (INCLS 1-3, 5-7, 9-14) (GRAY) |
CK1 (06) (CF5, DK8, UG1, Z75, 19I) |
2012-2013 |
01 |
| 004 |
22780443 |
CONSOLE, RF (INCLS 1-3, 5-7, 9-14) (CASHMERE) |
CK1 (06) (CF5, DK8, UG1, Z75, 39I) |
2012-2013 |
01 |
| 004 |
22780444 |
CONSOLE, RF (INCLS 1-3, 5-7, 9-14) (LINEN) |
CK1 (06) (CF5, DK8, UG1, Z75, 41I) |
2012-2013 |
01 |
| 005 |
15853948 |
PUSHBUTTON, RDG LP SW (PART OF 4) (AT CONSOLE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 006 |
15911049 |
LENS, DM LP (PART OF 4) (1ST ROW) |
CK1, 2, 3 (DK8) |
2007-2013 |
01 |
| 007 |
09431809 |
BULB, 6CP TRADE #212-2 (PART OF 4) (ACDelco #L212-2) |
|
2007-2013 |
02 |
| 008 |
25828898 |
DISPLAY, I/P AIRBAG ARMING STATUS (W/WORDS ON AND OFF FOR AIRBAG) |
CK1, 2, 3 (EXC UC2, U19) |
2007-2013 |
01 |
| 008 |
25828899 |
DISPLAY, I/P AIRBAG ARMING STATUS (W/AIRBAG SYMBOLS FOR ON AND OFF) |
CK1, 2, 3 (UC2, U19) (EXPORT) |
2007-2013 |
01 |
| 009 |
|
PUSHBUTTON, GARAGE DR OPENER XMTR (PART OF 4) |
|
2010-2013 |
|
| 010 |
22784270 |
TRANSMITTER, GARAGE DR OPENER (PART OF 4) (WHITE BACKLITE) |
CK1, 2 (06) (Z75) |
2009-2013 |
01 |
| 011 |
11516630 |
BOLT, RF CNSL (PART OF 4) (M4.2X1.41X20) (8.977) |
CK1, 2, 3 |
2007-2013 |
01 |
| 012 |
11609345 |
NUT, PUSH-IN, 4.2, SAE 1050 STL, GMW3179 (PART OF 4) |
|
2007-2013 |
02 |
| 013 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 4) |
|
2007-2013 |
02 |
| 014 |
|
HARNESS, CONSOLE JUMPER (PART OF 4) |
|
2010-2013 |
|
