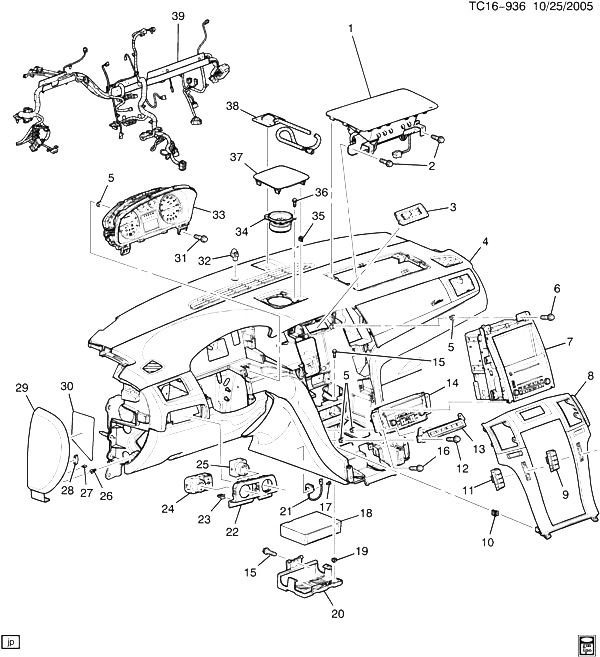

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20919203 |
AIRBAG, I/P (COCOA) (DUAL LEVEL) |
CK1 (41I) |
2011-2013 |
01 |
| 001 |
22762682 |
AIRBAG, I/P (EBONY) (DUAL LEVEL) |
CK1 (06) (ULT, Z75, 19I) |
2012-2013 |
01 |
| 001 |
22744316 |
AIRBAG, I/P (EBONY) (DUAL LEVEL) |
CK1, 2 (06) (19I) (EXC ULT) |
2012-2013 |
01 |
| 001 |
22744319 |
AIRBAG, I/P (COCOA) (DUAL LEVEL) |
CK1 (06-36) (39I) |
2011-2013 |
01 |
| 002 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (I/P AIRBAG) |
|
2007-2013 |
04 |
| 003 |
25949881 |
CLOCK, DISPLAY (ROMAN NUMERALS ON CLOCK FACE.) |
CK1 (Z75) |
2007-2013 |
01 |
| 004 |
|
PANEL, INST (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P) (10.701) |
|
2007-2013 |
06 |
| 006 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) |
|
2007-2013 |
06 |
| 007 |
|
RADIO, AM/FM STEREO NAVN (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
|
RADIO, AM/FM STEREO CLK AUDIO/VIDEO DISC PLYR (SEE GROUP 09.000 RADIO MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 008 |
|
PLATE, I/P ACSRY CTR TR (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
22815632 |
SWITCH, RR PARK ASST ALARM CONT MDL |
CK1 (06) (ULT, Y91, Z75) (EXC SLT, STZ) |
2012-2013 |
01 |
| 009 |
22815632 |
SWITCH, RR PARK ASST ALARM CONT MDL |
CK1 (Z75) (EXC ULT) |
2012-2013 |
01 |
| 010 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (I/P ACSRY CTR TR PLT) |
|
2007-2013 |
07 |
| 011 |
15859232 |
SWITCH, DRVR INFO DISPLAY |
CK1 (Z75) |
2007-2013 |
01 |
| 012 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (ACSRY SW BZL) (9.665) |
|
2007-2013 |
02 |
| 013 |
20820629 |
SWITCH, ACSRY (1 BUTTON) (ADJ PED) |
CK1 (JL4, Z75) (EXC BRS) |
2009-2013 |
01 |
| 013 |
20820630 |
SWITCH, ACSRY (2 BUTTON) (ADJ PED, SONIC/PARK) (W/PWR ASSIST STEP DISABLE SWITCH) |
CK1 (BRS, JL4, Z75) |
2009-2013 |
01 |
| 014 |
20921720 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (ACDelco #15-74161) |
CK1 (06) (CJ2, KB6, Z75) (EXC HP2, JAA) |
2012-2013 |
01 |
| 014 |
22866555 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (ACDelco #15-74259) |
CK1 (06) (CJ2, HP2, KB6, Z75) (EXC JAA) |
2013-2013 |
01 |
| 014 |
20921722 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (ACDelco #15-74163) |
K1 (06) (CJ2, JAA, KB6, Z75) (EXC HP2) (EXPORT) |
2012-2013 |
01 |
| 014 |
22866554 |
CONTROL, HTR A/C (W/ F/SEAT HTR CUSH VENT FAN) (ACDelco #15-74258) |
K1 (06) (CJ2, HP2, JAA, KB6, Z75) (EXPORT) |
2013-2013 |
01 |
| 015 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (COMN INTERFACE MDL BRKT) (9.665) |
|
2007-2013 |
03 |
| 016 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (HTR A/C CONT) (9.665) |
|
2007-2013 |
04 |
| 017 |
11588920 |
SCREW, W/RND WA, M3.5X1.59X9.5, 6 THD, 7 O.D., GM512M, GMW3044 (RDO VOL COMP INTR NOISE MIC) |
|
2007-2013 |
02 |
| 018 |
22767376 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (ACDelco #22767376) |
CK1, 2, 3 (UE1) (EXC FCN, UPF) |
2012-2013 |
01 |
| 018 |
22898335 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 22898335) (ACDelco #22898335) |
CK1, 2, 3 (UE1, UPF) (EXC FCN) |
2012-2013 |
01 |
| 018 |
22898336 |
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (LABELED 22898336) (ACDelco #22898336) |
K1 (06) (FCN, UE1, UPF) |
2013-2013 |
01 |
| 019 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (COMMUNICATION INTERFACE MDL BRKT) (10.701) |
|
2007-2013 |
02 |
| 020 |
25791895 |
BRACKET, COMMUNICATION INTERFACE MDL |
CK1, 2 (06) (UE1) |
2007-2013 |
01 |
| 021 |
25783504 |
MICROPHONE, RDO VOL COMP INTR NOISE (HEADLINER PANEL) |
CK107, 109 (06) (ASF, CJ2, Y91) |
2011-2013 |
03 |
| 022 |
15221547 |
PLATE, HDLP SW TR (INCLS 23) (EBONY) |
CK1 (06-36) (Z75, 19I, 39I, 41I) (EXC HP2) |
2009-2013 |
01 |
| 022 |
15907806 |
PLATE, HDLP SW TR (INCLS 23) (EBONY) |
K107 (06) (HP2, Z75, 19I, 39I, 41I) |
2009-2013 |
01 |
| 023 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 22) |
|
2007-2013 |
02 |
| 024 |
25858706 |
SWITCH, HDLP I/P LP DIMR DM LP (HAS DOME OFF) (INCLS FRT FOG LAMP SWITCH) (ACDelco #D1528J) |
CK1 (06-36) (T96, Z75) (EXC T79) |
2007-2013 |
01 |
| 024 |
25858707 |
SWITCH, HDLP I/P LP DIMR DM LP (HAS DOME OFF) (INCLS FRT RR FOG LAMP SWITCH) (ACDelco #D1529J) |
K1 (06) (T79, T96, Z75) (EXPORT) |
2007-2013 |
01 |
| 026 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 29) |
|
2007-2013 |
03 |
| 027 |
88909749 |
FUSE, 3A, MINI, VIOLET (PART OF 29) (8.965) (ACDelco #ATM3-25) |
|
2007-2013 |
01 |
| 027 |
88909754 |
FUSE, 15A, MINI, BLUE (PART OF 29) (ACDelco #ATM15-25) |
|
2007-2013 |
01 |
| 027 |
88909756 |
FUSE, MINI (25 AMP) (CLEAR) (QTY 25 (PART OF 29) (ACDelco #ATM25-25) |
|
2007-2013 |
01 |
| 027 |
12092079 |
FUSE, 10A, MINI, RED (PART OF 29) |
|
2007-2013 |
01 |
| 027 |
88861352 |
FUSE, 20A, MINI, YELLOW (PART OF 29) (ACDelco #ATM20) |
|
2007-2013 |
01 |
| 028 |
12084791 |
PULLER, FUSE (PART OF 29) (MINI) (I/P COVER) |
CK1, 2, 3 |
2007-2013 |
01 |
| 029 |
22925343 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (EBONY) (IF VEH HAS 30 AMP FUSE ORDER LABEL 25940508) |
CK1, 2, 3 (19I, 85I) |
2012-2013 |
01 |
| 029 |
22925347 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (LINEN) (IF VEH HAS 30 AMP FUSE ORDER LABEL 25940508) |
CK1, 2, 3 (41I) |
2009-2013 |
01 |
| 029 |
22925348 |
COVER, I/P FUSE BLK ACC HOLE (INCLS 26-28, 30) (CASHMERE) (IF VEH HAS 30 AMP FUSE ORDER LABEL 25940508) |
CK1, 2, 3 (Z75, 39I) |
2012-2013 |
01 |
| 030 |
22925349 |
LABEL, I/P WRG HARN FUSE BLK IDENT (PART OF 29) |
CK1, 2, 3 |
2012-2013 |
01 |
| 031 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (INST CSTR) (9.665) |
|
2007-2013 |
04 |
| 032 |
25713063 |
SENSOR, HDLP AUTO CONT AMB LGT (DUAL SOLAR TWILIGHT) (ACDelco #25713063) |
CK1, 2, 3 (CJ2) |
2007-2013 |
01 |
| 033 |
22806774 |
CLUSTER, INST (CAN BE USED FOR MY12 W/2012 SOFTWARE/CALIBRATIONS) (ACDelco #22806774) |
CK1 (06) (L94, MYC, ULT, Y91, Z75) (EXC UC2, U19) |
2013-2013 |
01 |
| 033 |
22806776 |
CLUSTER, INST (CAN BE USED FOR MY12 W/2012 SOFTWARE/CALIBRATIONS) (ACDelco #22806776) |
CK1 (06-36) (L94, MYC, Y91, Z75) (EXC UC2, ULT, U19) |
2013-2013 |
01 |
| 033 |
22806775 |
CLUSTER, INST (CAN BE USED FOR MY12 W/2012 SOFTWARE/CALIBRATIONS) (ACDelco #22806775) |
CK1 (06) (L94, MYC, UC2, U19, ULT, Y91, Z75) (EXPORT) |
2013-2013 |
01 |
| 033 |
22806777 |
CLUSTER, INST (CAN BE USED FOR MY12 W/2012 SOFTWARE/CALIBRATIONS) (ACDelco #22806777) |
CK1 (06-36) (L94, MYC, UC2, U19, Y91, Z75) (EXC ULT) (EXPORT) |
2013-2013 |
01 |
| 034 |
25798963 |
SPEAKER, RDO FRT (3.5) (9.665) (ACDelco #25798963) |
CK1, 2, 3 (UQA, UQS, Y91, Z75, Z88) |
2011-2013 |
01 |
| 035 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 37) |
|
2007-2013 |
04 |
| 036 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) |
|
2007-2013 |
02 |
| 037 |
15221850 |
GRILLE, RDO FRT SPKR (INCLS 35) (EBONY) |
CK1 (06-36) (Z75, 19I) |
2007-2013 |
01 |
| 037 |
15221851 |
GRILLE, RDO FRT SPKR (INCLS 35) (COCOA) |
CK1 (06-36) (Z75, 39I, 41I) |
2009-2013 |
01 |
| 037 |
15248601 |
GRILLE, RDO FRT SPKR (INCLS 35) (EBONY) |
CK1 (06-36) (STZ, 19I) |
2009-2013 |
01 |
| 038 |
15859569 |
ANTENNA, ELEK NAVIGATION (ACDelco #15859569) |
CK1 (GMQ) |
2011-2013 |
01 |
| 038 |
25918632 |
ANTENNA, ELEK NAVIGATION (ACDelco #25918632) |
CK1, 2, 3 (UYS) |
2012-2013 |
01 |
| 039 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
