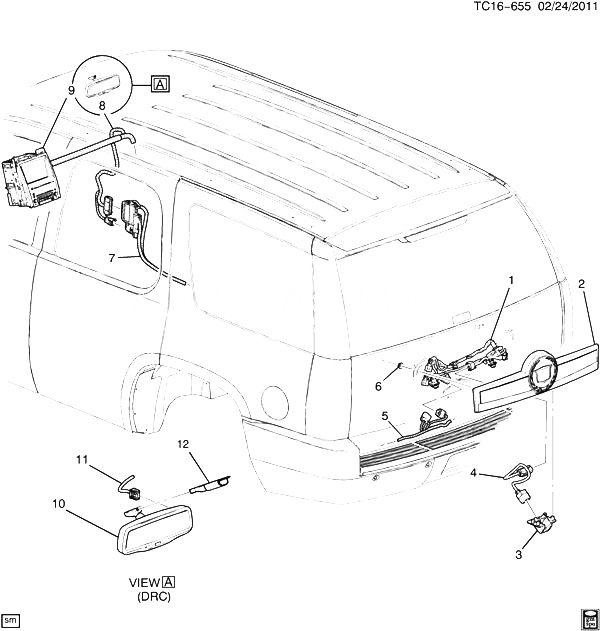

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25872958 |
HARNESS, RR LIC PLT LP WRG |
CK1 (06) (UVC, Z75) |
2012-2013 |
01 |
| 002 |
22756400 |
APPLIQUE, RR CLSR CTR (SEE GROUP 17.000 LIFTGATE HARDWARE/CENTER APPLIQUE FOR DETAILED ILLUSTRATED VIEW) (INCLS 3-4) (PAINT TO MATCH) (INCL RR VIEW DRVR INFO CAMERA) |
CK1 (06) (UVC, WHN, Z75) |
2012-2013 |
01 |
| 003 |
|
BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (PART OF 2) |
|
2012-2013 |
|
| 004 |
|
CAMERA, RR VIEW DRVR INFO (PART OF 2) |
|
2012-2013 |
|
| 005 |
|
HARNESS, L/GATE WRG (SEE GROUP 02.000 WIRING HARNESS/LIFTGATE FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 006 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG) |
|
2012-2013 |
04 |
| 007 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 008 |
15127940 |
HARNESS, I/P WRG HARN EXTN (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 009 |
|
RADIO, AM/FM STEREO NAVN (SEE GROUP 09.000 RADIO MOUNTINGS FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 010 |
20945096 |
MIRROR, I/S RR VIEW (10.185) |
|
2012-2013 |
|
| 011 |
|
HARNESS, RF ACSRY WRG (SEE GROUP 16.000 TRIM/INTERIOR-ROOF FOR DETAILED ILLUTRATED VIEW) |
|
2012-2013 |
|
| 012 |
15779345 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN ISRVM HDLNG TRIM) |
CK1, 2, 3 |
2012-2013 |
01 |
