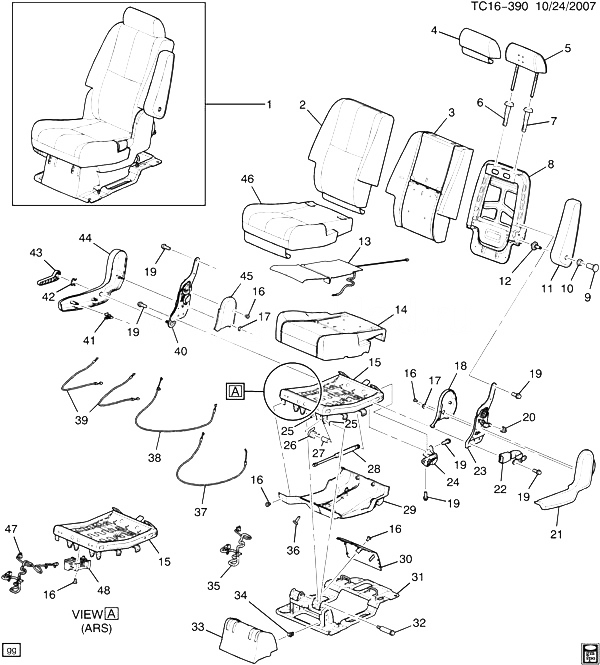

(TC16-390) 2007-2013 CK107(06) ЗАДНЕЕ СИДЕНЬЕ/BUCKET-RH (BUCKET AL4) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
011 22785453 ARMREST, R/SEAT (EBONY) CK1 (06) (AL4, KA6, Z75, 194) 2013-2013 01
011 22785454 ARMREST, R/SEAT (CASHMERE) CK1 (06) (AL4, KA6, Z75, 394) 2013-2013 01
011 22785458 ARMREST, R/SEAT (COCOA) CK1 (06) (AL4, ULT, Z75, 415) 2013-2013 01
012 11570115 STUD, R/SEAT A/RST (T/W 11570119 NUT) CK1, 2 (06) (AL4) 2007-2013 02
013 15824761 HEATER, R/SEAT CUSH CK1, 2 (06) (KA6) 2007-2013 01
014 22771040 PAD, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2013 01
015 15269765 FRAME, R/SEAT CUSH CK1, 2 (06) (AL4) 2007-2013 01
016 11570116 SCREW, PAN HD, M6X1X10, 10 THD, 12 OD, STL SAE J1237, S424, TAPTITE ITE (R/SEAT LAT FIN CVR) (8.913) 2007-2013 09
017 11562384 NUT, HFH, M4X.7 THD, 4.75 THK, 10.5 OD, GM510M (9)STL, GM4435M-CODE A (R/SEAT FLR FIL T/PNL) 2007-2013 02
018 15280113 COVER, R/SEAT RECL INR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I) 2009-2013 01
018 15280114 COVER, R/SEAT RECL INR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
018 15280115 COVER, R/SEAT RECL INR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2013 01
018 25858451 COVER, R/SEAT RECL INR FIN (COCOA) (INNER) CK1 (06) (AL4, 41I) 2008-2013 01
019 11562378 BOLT, HFH, M10X1.5X30, 18 THD, 22.3 OD, 10.9, GMW3359, W/ADH GM6175M (R/SEAT LAT) 2007-2013 12
020 20963265 KNOB, R/SEAT LAT (EBONY) (INNER) CK1, 2 (06) 2011-2013 02
021 15279719 COVER, R/SEAT RECL INR FIN ( INCLS 41) (EBONY) (OUTER) CK107 (06) (AL4, 19I) 2009-2013 01
021 15279720 COVER, R/SEAT RECL INR FIN (INCLS 41) (CASHMERE) (OUTER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
021 15279721 COVER, R/SEAT RECL INR FIN (INCLS 41) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2013 01
021 25858450 COVER, R/SEAT RECL INR FIN (INCLS 41) (COCOA) (OUTER) CK1 (06) (AL4, 41I) 2008-2013 01
022 19121596 BELT KIT, R/SEAT (BKL SI) (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2013 01
022 19180585 BELT KIT, R/SEAT (BKL SI) (COCOA) CK107 (06) (AL4, ULT, Z75, 415) 2009-2013 01
001 20842202 SEAT, RR (INCLS 2-48) (COCOA) CK107 (06) (AL4, ULT, Z75, 415) (EXC AX4) 2011-2013 01
001 20842307 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, KA6, Z75, 194) (EXC ARS, AX4) 2011-2013 01
001 20842308 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, KA6, Z75, 394) (EXC ARS, AX4) 2011-2013 01
001 20842334 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, ARS, KA6, Z75, 194) (EXC AX4) 2011-2013 01
001 20842335 SEAT, RR (INCLS 2-48) (CASHMERE) CK107 (06) (AL4, ARS, KA6, Z75, 394) (EXC AX4) 2011-2013 01
001 22784384 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, ULT, Z75, 195) (EXC AX4) 2012-2013 01
001 20842289 SEAT, RR (INCLS 2-48) (EBONY) K107 (06) (AL4, ARS, AX4, KA6, Z75, 194) (EXPORT) 2011-2013 01
001 20842290 SEAT, RR (INCLS 2-48) (CASHMERE) K107 (06) (AL4, ARS, AX4, KA6, Z75, 394) (EXPORT) 2011-2013 01
001 20842295 SEAT, RR (INCLS 2-48) (EBONY) K107 (06) (AL4, AX4, KA6, Z75, 194) (EXC ARS) (EXPORT) 2011-2013 01
001 20842296 SEAT, RR (INCLS 2-48) (CASHMERE) K107 (06) (AL4, AX4, KA6, Z75, 394) (EXC ARS) (EXPORT) 2011-2013 01
001 20842446 SEAT, RR (INCLS 2-48) (COCOA) CK107 (06) (AL4, AX4, ULT, Z75, 415) (EXPORT) 2011-2013 01
001 22784381 SEAT, RR (INCLS 2-48) (EBONY) CK107 (06) (AL4, AX4, ULT, Z75, 195) (EXPORT) 2012-2013 01
002 25858418 COVER, R/SEAT BK (COCOA) CK1 (06) (AL4, ULT, Z75, 415) 2008-2013 01
002 15865722 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AL4, 196) (EXC KA6) 2009-2013 01
002 15865723 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AL4, 336) (EXC KA6) 2009-2013 01
002 15865724 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AL4, 836) (EXC KA6) 2009-2013 01
002 25908028 COVER, R/SEAT BK (CASHMERE) CK1 (06) (AL4, KA6, Z75, 394) 2009-2013 01
002 25931441 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AL4, KA6, KB6, 196) 2009-2013 01
002 25931442 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AL4, KA6, KB6, 336) 2009-2013 01
002 25931443 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AL4, KA6, KB6, 836) 2009-2013 01
002 15865722 COVER, R/SEAT BK (EBONY) CK1, 2 (06) (AL4, 193) 2009-2013 01
002 15865723 COVER, R/SEAT BK (CASHMERE) CK1, 2 (06) (AL4, 333) 2009-2013 01
002 15865724 COVER, R/SEAT BK (TITANIUM) CK1, 2 (06) (AL4, 833) 2009-2013 01
002 25899570 COVER, R/SEAT BK (EBONY) CK1 (06) (AL4, KA6, Z75, 194) 2007-2013 01
002 22784394 COVER, R/SEAT BK (EBONY) CK107, 109 (06) (AL4, ULT, Z75, 195) 2012-2013 01
003 22771055 PAD, R/SEAT BK CK1, 2 (06) (AL4) 2007-2013 01
004 COVER, R/SEAT H/RST SUPT (PART OF 5) 2007-2013
005 PAD, R/SEAT H/RST (INCLS 4) K 2007-2013
005 20960657 RESTRAINT, R/SEAT HD (INCLS 4) (COCOA) CK107, 109 (06) (AL4, ULT, Z75, 415) 2011-2013 02
005 20960662 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) K107, 109 (06) (AL4, KA6, Z75, 194) 2011-2013 02
005 20960663 RESTRAINT, R/SEAT HD (INCLS 4) (CASHMERE) K107, 109 (06) (AL4, KA6, Z75, 394) 2011-2013 02
005 22784399 RESTRAINT, R/SEAT HD (INCLS 4) (EBONY) CK1 (06) (AL4, ULT, Z75, 195) 2012-2013 01
006 20912675 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (33I) 2007-2013 02
006 20912675 GUIDE, R/SEAT H/RST (CASHMERE) (W/BUTTON) CK1, 2 (06-36) (39I) 2007-2013 02
006 20912677 GUIDE, R/SEAT H/RST (COCOA) (W/BUTTON) CK1 (06) (AL4, 41I) 2008-2013 02
006 15279347 GUIDE, R/SEAT H/RST (EBONY) (W/BUTTON) CK1 (06) (19I) 2007-2013 02
006 20912676 GUIDE, R/SEAT H/RST (TITANIUM) (W/BUTTON) CK1, 2 (06) (83I) 2007-2013 02
007 20912679 GUIDE, R/SEAT H/RST (EBONY) (W/O BUTTON) CK1, 2 (06) (AL4, 19I) 2007-2013 02
007 20912680 GUIDE, R/SEAT H/RST (CASHMERE) (W/O BUTTON) CK1, 2 (06) (33I, 39I) 2007-2013 02
007 15279353 GUIDE, R/SEAT H/RST (TITANIUM) (W/O BUTTON) CK1, 2, 3 (83I) 2007-2013 02
007 25851751 GUIDE, R/SEAT H/RST (COCOA) (W/O BUTTON) CK1 (06-36) (41I) 2008-2013 02
008 22939879 FRAME, R/SEAT BK CK107, 109 (06) (AL4, ULT, Z75, 415) 2013-2013 01
008 22939879 FRAME, R/SEAT BK CK107, 109 (06) (AL4, KA6, Z75, 194, 394) 2013-2013 01
008 22939879 FRAME, R/SEAT BK CK107, 109 (06) (AL4, ULT, Z75, 195) 2013-2013 01
009 15279691 CAP, R/SEAT ACTR FIN CVR BOLT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2013 02
009 25858335 CAP, R/SEAT ACTR FIN CVR BOLT (COCOA) CK1, 2 (06) (AL4, 41I) 2008-2013 02
009 15279689 CAP, R/SEAT ACTR FIN CVR BOLT (EBONY) CK1, 2 (06) (AL4, 19I) 2009-2013 02
009 15279690 CAP, R/SEAT ACTR FIN CVR BOLT (CASHMERE) CK1, 2 (06) (AL4, 33I, 39I) 2007-2013 02
010 11570119 NUT, R/SEAT A/RST (T/W 11570115 STUD) CK1, 2 (06) (AL4) 2007-2013 02
011 22784390 ARMREST, R/SEAT (EBONY) CK107 (06) (AL4, ULT, Z75, 195) 2012-2013 01
011 22785446 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 193) 2013-2013 01
011 22785446 ARMREST, R/SEAT (EBONY) CK1, 2 (06) (AL4, 196) 2013-2013 01
011 22785447 ARMREST, R/SEAT (CASHMERE) CK1, 2 (06) (AL4, 333, 336) 2013-2013 01
011 22785448 ARMREST, R/SEAT (TITANIUM) CK1, 2 (06) (AL4, 833, 836) 2013-2013 01
022 19121595 BELT KIT, R/SEAT (BKL SI) (CASHMERE) CK1, 2 (06) (AL4, 33I, 39I) 2009-2013 01
022 19121593 BELT KIT, R/SEAT (BKL SI) (EBONY) CK1, 2 (06) (AL4, 19I) 2007-2013 01
023 25896462 RECLINER, R/SEAT INR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2008-2013 01
024 15275888 LATCH, R/SEAT RSR (INNER OUTER) CK107 (06) (AL4) 2007-2013 02
025 11562380 BUSHING, R/SEAT HGE CK1, 2 (06) (AL4) 2007-2013 08
026 15275901 SPRING, R/SEAT RECL (TUMBLE) CK1, 2 (06) (AL4) 2007-2013 02
027 15275903 SPRING, R/SEAT RECL (MANDREL) CK1, 2 (06) (AL4) 2007-2013 02
028 15275905 STRUT, R/SEAT (USED ON BOTH LH/RH) CK1, 2 (06) (AL4) 2007-2013 02
029 22772267 PANEL, R/SEAT CUSH TR (EBONY) CK107 (06) (AL4, 19I) 2007-2013 01
029 22772268 PANEL, R/SEAT CUSH TR (CASHMERE) CK107 (06) (AL4, 33I, 39I) 2007-2013 01
029 22772269 PANEL, R/SEAT CUSH TR (TITANIUM) CK107 (06) (AL4, 833) 2007-2013 01
029 22906167 PANEL, R/SEAT CUSH TR CK107 (06) (AL4, 41I) 2011-2013 01
030 15279609 COVER, R/SEAT RSR FIN (EBONY) (REAR) CK107 (06) (AL4, 19I) 2007-2013 01
030 15279610 COVER, R/SEAT RSR FIN (CASHMERE) (REAR) CK107 (06) (AL4, 33I, 39I) 2007-2013 01
030 15279611 COVER, R/SEAT RSR FIN (TITANIUM) (REAR) CK107 (06) (AL4, 83I) 2007-2013 01
030 25858447 COVER, R/SEAT RSR FIN (COCOA) (REAR) CK1 (06) (AL4, 41I) 2008-2013 01
031 22741877 RISER, R/SEAT CK107 (06) (AL4) 2007-2013 01
032 11562379 BOLT, R/SEAT HGE (M10X1.5X92) CK1, 2 2007-2013 02
033 COVER, R/SEAT RSR FIN (AL4, 41I) 2008-2013
033 15279599 COVER, R/SEAT RSR FIN (INCLS 34) (EBONY) (FRONT) CK107 (06) (AL4, 19I) 2007-2013 02
033 15279600 COVER, R/SEAT RSR FIN (INCLS 34) (CASHMERE) (FRONT) CK107 (06) (AL4, 33I, 39I) 2007-2013 02
033 15279601 COVER, R/SEAT RSR FIN (INCLS 34) (TITANIUM) (FRONT) CK107 (06) (AL4, 83I) 2007-2013 02
034 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 33) 2007-2013
035 15843762 HARNESS, R/SEAT HTR (2.480) CK107, 109 (06) (Z75, 195, 415) 2011-2013 01
035 15843764 HARNESS, R/SEAT HTR CK1 (06) (Z75, 194, 394) 2011-2013 01
036 15279408 PIN, R/SEAT H/RST ADJ ROD LAT (TITANIUM) CK1, 2 (06) (AL4, 83I) 2007-2013 02
036 25858342 PIN, R/SEAT H/RST ADJ ROD LAT (COCOA) CK1 (06) (AL4, 41I) 2008-2013 02
036 15279406 PIN, R/SEAT H/RST ADJ ROD LAT (EBONY) CK1, 2 (06) (AL4, 19I) 2009-2013 02
036 15279407 PIN, R/SEAT H/RST ADJ ROD LAT (CASHMERE) CK1, 2 (06) (33I, 39I) 2007-2013 02
037 25816415 CABLE, R/SEAT BK LAT (OUTBOARD MASTER SYNC) CK1, 2 (06) (AL4) 2007-2013 02
038 25816416 CABLE, R/SEAT LAT (INBOARD) (INBOARD MASTER SYNC) CK1, 2 (06) (AL4) 2007-2013 02
039 15275914 CABLE, R/SEAT LAT (OUTBOARD) (FLOOR LATCH) CK1, 2 (06) (AL4) 2007-2013 02
040 25896460 RECLINER, R/SEAT OTR (WHEN SERVICING VEHICLES BUILT PRIOR TO 06/01/06, DEALER NEEDS TO REPLACE BOTH INNER OUTER IN SETS) CK1, 2 (06) (AL4) 2007-2013 01
041 RETAINER, R/SEAT FLR FIL T/PNL (PART OF 21, 44) 2007-2013
042 RETAINER, R/SEAT ADJR RLR (PART OF 43) 2007-2013
043 15279429 HANDLE, R/SEAT RECL (INCLS 42) (TITANIUM) CK1, 2 (06) (83I) 2007-2013 01
043 15279419 HANDLE, R/SEAT RECL (INCLS 42) (EBONY) CK1, 2 (06) (19I) 2007-2013 01
043 15279420 HANDLE, R/SEAT RECL (INCLS 42) (CASHMERE) CK1, 2 (06) (33I) 2007-2013 01
043 15279420 HANDLE, R/SEAT RECL (INCLS 42) (CASHMERE) CK1 (06) (39I) 2007-2013 01
043 25858446 HANDLE, R/SEAT RECL (INCLS 42) (COCOA) CK1 (06) (AL4, 41I) 2008-2013 01
044 15279699 COVER, R/SEAT RECL OTR FIN (INCLS 41) (EBONY) (OUTER) CK107 (06) (AL4, 19I) 2010-2013 01
044 15279700 COVER, R/SEAT RECL OTR FIN ( INCLS 41) (CASHMERE) (OUTER) CK107 (06) (AL4, 33I, 39I) 2009-2013 01
044 15279701 COVER, R/SEAT RECL OTR FIN (INCLS 41) (TITANIUM) (OUTER) CK107 (06) (AL4, 83I) 2007-2013 01
044 25858448 COVER, R/SEAT RECL OTR FIN (INCLS 41) (COCOA) (OUTER) CK1 (06) (AL4, 41I) 2008-2013 01
045 15279709 COVER, R/SEAT RECL OTR FIN (EBONY) (INNER) CK107 (06) (AL4, 19I) 2007-2013 01
045 15279710 COVER, R/SEAT RECL OTR FIN (CASHMERE) (INNER) CK107 (06) (AL4, 33I, 39I) 2007-2013 01
045 15279711 COVER, R/SEAT RECL OTR FIN (TITANIUM) (INNER) CK107 (06) (AL4, 83I) 2007-2013 01
045 25858449 COVER, R/SEAT RECL OTR FIN (COCOA) (INNER) CK1 (06) (AL4, 41I) 2008-2013 01
046 15865730 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, 193) (EXC KB6) 2007-2013 01
046 25858420 COVER, R/SEAT CUSH (COCOA) CK1 (06) (AL4, ULT, Z75, 415) 2008-2013 01
046 15865731 COVER, R/SEAT CUSH (CASHMERE) CK107 (06) (AL4, 336) (EXC KB6) 2009-2013 01
046 25931447 COVER, R/SEAT CUSH (EBONY) CK1, 2 (06) (AL4, KA6, KB6, 196) 2009-2013 01
046 25931449 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, KA6, KB6, 836) 2009-2013 01
046 15865732 COVER, R/SEAT CUSH (TITANIUM) CK1, 2 (06) (AL4, 833) (EXC KB6) 2009-2013 01
046 25899558 COVER, R/SEAT CUSH (EBONY) CK1 (06) (AL4, KA6, Z75, 194) 2007-2013 01
046 15865731 COVER, R/SEAT CUSH (CASHMERE) CK1, 2 (06) (AL4, 333) (EXC KB6) 2009-2013 01
046 22784398 COVER, R/SEAT CUSH (EBONY) CK107, 109 (06) (AL4, ULT, Z75, 195) 2012-2013 01
046 20905470 COVER, R/SEAT CUSH (CASHMERE) CK1 (06) (AL4, KA6, Z75, 394) 2009-2013 01
047 15843763 HARNESS, ST RECL WRG (ELEMENT) CK107, 109 (06) (AL4, ULT, Z75) 2008-2013 01
047 15843763 HARNESS, ST RECL WRG (ELEMENT) CK107, 109 (06) (AL4, ARS, KA6, Z75) 2009-2013 01
048 15824750 ACTUATOR, R/SEAT RECL (INCLS CABLE) CK1, 2 (06) (AL4) 2007-2013 01
