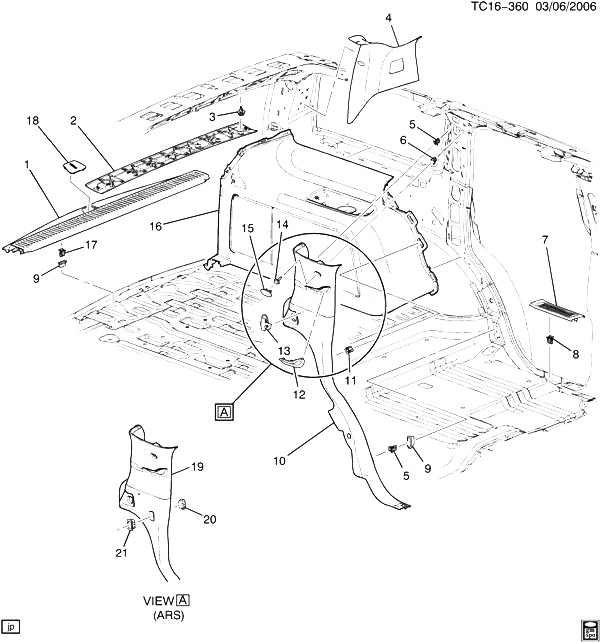

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15877373 |
PLATE, R/FLR RR TR (INCLS 17, 18) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2013 |
01 |
| 001 |
25902618 |
PLATE, R/FLR RR TR (INCLS 17, 18) (CASHMERE) |
CK1 (06) (Y91, Z75, 39I) |
2009-2013 |
01 |
| 001 |
15931763 |
PLATE, R/FLR RR TR (INCLS 17, 18) (EBONY) (W/ CADILLAC INSERT) |
CK1 (06) (Y91, Z75, 19I) (EXC ULT) |
2012-2013 |
01 |
| 001 |
22762394 |
PLATE, R/FLR RR TR (INCLS 17, 18) (EBONY) |
CK1 (06) (ULT, 19I) |
2012-2013 |
01 |
| 002 |
15905683 |
MOLDING, BK BODY OPG GARN (INCLS 3) (GRAY) |
CK1, 2 (06) (Z75, 19I) |
2007-2013 |
01 |
| 002 |
15936713 |
MOLDING, BK BODY OPG GARN (INCLS 3) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2013 |
01 |
| 002 |
15905684 |
MOLDING, BK BODY OPG GARN (INCLS 3) (CASHMERE) |
CK1, 2 (06) (Z75, 39I) |
2009-2013 |
01 |
| 003 |
11561654 |
RETAINER, BODY RR COR G/MLDG (PART OF 2) (PLAIN) (BIRDS BEAK SINGLE) (FITS 8.5 DIA HOLE) (12.800) |
CK1, 2 (06) |
2007-2013 |
06 |
| 004 |
|
MOLDING, BODY RR COR UPR GARN (SEE GROUP 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 10, 19) |
|
2007-2013 |
10 |
| 006 |
11609651 |
CLIP, BODY L/PLR G/MLDG (PART OF 10, 19) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) |
CK1, 2 (06) |
2007-2013 |
02 |
| 007 |
15877412 |
PLATE, RR S/D SILL TR (INCLS 8) (LINEN) |
CK107 (ULT, 41I) |
2008-2013 |
02 |
| 007 |
25902616 |
PLATE, RR S/D SILL TR (INCLS 8) (CASHMERE) |
CK107 (06) (Y91, Z75, 39I) |
2009-2013 |
02 |
| 007 |
15873285 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY) (W/CADILLAC INSERT) |
CK107 (Y91, Z75, 19I) (EXC ULT) |
2012-2013 |
02 |
| 007 |
22762398 |
PLATE, RR S/D SILL TR (INCLS 8) (EBONY) |
CK107 (06) (ULT, 19I) |
2012-2013 |
02 |
| 008 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 7) |
|
2007-2013 |
04 |
| 009 |
15043000 |
PLUG, R/CMPT SILL TR PLT HOLE (38.0 X 17.0 X 18.0MM) (OBLONG) (16.600) |
CK1, 2 (06) |
2007-2013 |
10 |
| 010 |
15877445 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (LINEN) |
CK107 (06) (ULT, 41I) |
2008-2013 |
01 |
| 010 |
20844007 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (LINEN) |
CK107 (06) (HP2, ULT, 41I) |
2009-2013 |
02 |
| 010 |
20844008 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (LINEN) |
CK107 (06) (HP2, ULT, 41I) |
2009-2013 |
02 |
| 010 |
22762400 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (GRAY) |
CK107 (06) (ULT, 19I) (EXC HP2) |
2012-2013 |
01 |
| 010 |
22762401 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (GRAY) |
CK107 (06) (ULT, 19I) (EXC HP2) |
2012-2013 |
01 |
| 010 |
22762404 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (GRAY) |
CK107 (06) (HP2, ULT, 19I) |
2012-2013 |
01 |
| 010 |
22762405 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (GRAY) |
CK107 (06) (HP2, ULT, 19I) |
2012-2013 |
01 |
| 010 |
22871307 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (EBONY) |
CK107 (06) (19I) (EXC ARS, ULT) |
2013-2013 |
01 |
| 010 |
22871308 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (CASHMERE) |
CK107 (06) (39I) (EXC ARS) |
2013-2013 |
01 |
| 010 |
22871312 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (EBONY) |
CK107 (06) (19I) (EXC ARS, ULT) |
2013-2013 |
01 |
| 010 |
22871313 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (CASHMERE) |
CK107 (06) (39I) (EXC ARS) |
2013-2013 |
01 |
| 010 |
15877443 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15) (LINEN) |
CK107 (06) (ULT, 41I) (EXC HP2) |
2009-2013 |
01 |
| 011 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10, 19) |
|
2007-2013 |
08 |
| 012 |
15295390 |
BEZEL, R/SEAT BELT OPG (PART OF 10, 19) (EBONY) |
CK107 (06) (Z75, 19I) |
2007-2013 |
01 |
| 012 |
15295394 |
BEZEL, R/SEAT BELT OPG (PART OF 10, 19) (EBONY) |
CK107 (06) (Z75, 19I) |
2007-2013 |
01 |
| 012 |
25827829 |
BEZEL, R/SEAT BELT OPG (PART OF 10, 19) (LINEN) |
CK107 (06) (ULT, 41I) |
2008-2013 |
01 |
| 012 |
25827831 |
BEZEL, R/SEAT BELT OPG (PART OF 10, 19) (LINEN) |
CK107 (06) (ULT, 41I) |
2008-2013 |
01 |
| 012 |
25903597 |
BEZEL, R/SEAT BELT OPG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (Z75, 39I) |
2009-2013 |
01 |
| 012 |
25903598 |
BEZEL, R/SEAT BELT OPG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (Z75, 39I) |
2009-2013 |
01 |
| 013 |
25827828 |
GUIDE, R/SEAT SHLDR BELT INTER (PART OF 10, 19) (LINEN) |
CK1 (ULT, 41I) |
2008-2013 |
02 |
| 013 |
15214079 |
GUIDE, R/SEAT SHLDR BELT INTER (PART OF 10, 19) (CASHMERE) |
CK1, 2 (06) (Z75, 39I) |
2009-2013 |
02 |
| 013 |
15214081 |
GUIDE, R/SEAT SHLDR BELT INTER (PART OF 10, 19) (EBONY) |
CK1, 2 (06) (19I) |
2009-2013 |
02 |
| 014 |
11609465 |
BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (PART OF 10, 19) (8.977) |
|
2007-2013 |
02 |
| 015 |
25827826 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (LINEN) |
CK107 (06) (ULT, 41I) |
2008-2013 |
01 |
| 015 |
25827830 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (LINEN) |
CK107 (06) (ULT, 41I) |
2008-2013 |
01 |
| 015 |
15278075 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (GRAY) |
CK107 (06) (19I, 83I) |
2009-2013 |
01 |
| 015 |
15278076 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (GRAY) |
CK107 (06) (19I, 83I) |
2009-2013 |
01 |
| 015 |
15278083 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (39I) |
2009-2013 |
01 |
| 015 |
15278084 |
PLUG, BODY L/PLR GARN MLDG (PART OF 10, 19) (CASHMERE) |
CK107 (06) (39I) |
2009-2013 |
01 |
| 016 |
|
PANEL, BODY SI TR (SEE GROUP 16.000 TRIM/INTERIOR-BODY SIDE-QUARTER DETAIL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 017 |
11589329 |
CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1) |
|
2007-2013 |
10 |
| 018 |
15940206 |
COVER, L/GATE LK STKR (PART OF 1) (LINEN) |
CK1 (06) (41I) |
2008-2013 |
01 |
| 018 |
15274516 |
COVER, L/GATE LK STKR (PART OF 1) (EBONY) |
CK1, 2 (06) (19I) |
2009-2013 |
01 |
| 018 |
20986776 |
COVER, L/GATE LK STKR (PART OF 1) (CASHMERE) |
CK1, 2 (06) (33I, 39I) |
2009-2013 |
01 |
| 019 |
15877445 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (LINEN) |
CK107 (06) (ULT, 41I) |
2008-2013 |
01 |
| 019 |
22762400 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (GRAY) |
CK107 (06) (ULT, 19I) (EXC HP2) |
2012-2013 |
01 |
| 019 |
22762401 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (GRAY) |
CK107 (06) (ULT, 19I) (EXC HP2) |
2012-2013 |
01 |
| 019 |
22871322 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (EBONY) |
CK107 (06) (ARS, 19I) (EXC ULT) |
2013-2013 |
01 |
| 019 |
22871323 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (CASHMERE) |
CK107 (06) (ARS, 39I) |
2013-2013 |
01 |
| 019 |
22871317 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (EBONY) (DUAL TONE PART) (GRANITE OPEL UPR) |
CK107 (06) (ARS, 19I) (EXC ULT) |
2013-2013 |
01 |
| 019 |
22871318 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (CASHMERE) (DUAL TONE PART)CASHMERE UPR) |
CK107 (06) (ARS, 39I) |
2013-2013 |
01 |
| 019 |
15877443 |
MOLDING, BODY L/PLR GARN (INCLS 5, 6, 11-15, 20, 21) (LINEN) |
CK107 (06) (ULT, 41I) (EXC HP2) |
2009-2013 |
01 |
| 020 |
10388598 |
SWITCH, R/SEAT ADJR (PART OF 19) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2013 |
01 |
| 020 |
15113408 |
SWITCH, R/SEAT ADJR (PART OF 19) (ON GARNISH MOLDING) |
CK1, 2 (06) |
2007-2013 |
01 |
| 021 |
25827827 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (LINEN) |
CK1 (06) (ULT, 41I) |
2008-2013 |
02 |
| 021 |
15214084 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (EBONY) |
CK1, 2 (06) (ARS, 19I) |
2009-2013 |
02 |
| 021 |
15214082 |
BEZEL, BODY L/PLR G/MLDG (PART OF 19) (CASHMERE) |
CK1, 2 (06) (ARS, 33I, 39I) |
2007-2013 |
02 |
