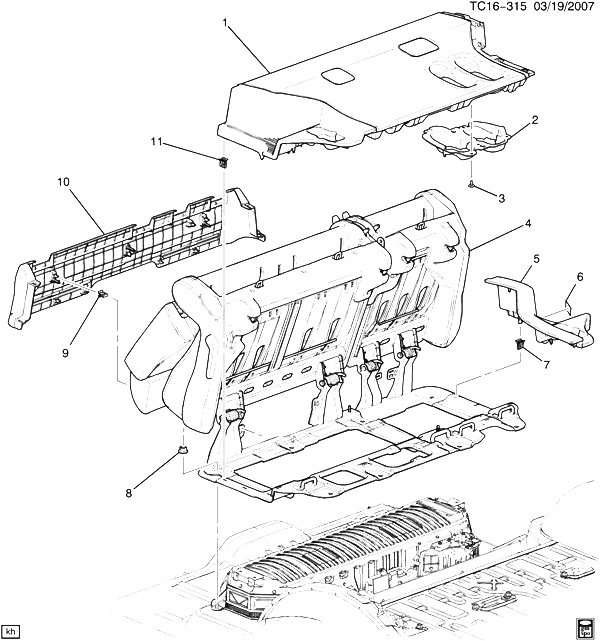

(TC16-315) 2008-2013 CK107(06) КРЕПЛЕНИЕ ЗАДНЕГО СИДЕНЬЯ (60/40 BENCH AM8, HYBRID HP2) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20986821 COVER, R/SEAT RSR FIN (INCLS 2, 3, 11) (CASHMERE) (MAIN COVER) CK1 (06) (AM8, HP2, 33I, 39I) 2012-2013 01
001 20986822 COVER, R/SEAT RSR FIN (INCLS 2, 3, 11) (EBONY) CK1 (06) (AM8, HP2, 19I) 2008-2013 01
001 20986823 COVER, R/SEAT RSR FIN (INCLS 2, 3, 11) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2012-2013 01
002 25813593 COVER, R/SEAT RSR INR FIN (PART OF 1) (EBONY) CK1 (06) (AM8, HP2, 19I) 2008-2013 01
002 25813595 COVER, R/SEAT RSR INR FIN (PART OF 1) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2008-2013 01
002 25813594 COVER, R/SEAT RSR INR FIN (PART OF 1) (CASHMERE) CK1 (06) (AM8, HP2, 33I, 39I) 2009-2013 01
002 20897776 COVER, R/SEAT RSR INR FIN (PART OF 1) (COCOA) CK1 (06) (AM8, HP2, ULT, 41I) 2011-2013 01
003 11509253 SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 1) 2008-2013 05
004 20841912 SEAT, RR (EBONY) CK107 (06) (AM8, 19C, 5T5) 2011-2013 01
004 20841912 SEAT, RR (EBONY) CK107 (06) (AM8, 19V) 2011-2013 01
004 20841914 SEAT, RR (EBONY) CK107 (06) (AM8, 19C, 5T5) 2011-2013 01
004 20841914 SEAT, RR (EBONY) CK107 (06) (AM8, 19V) 2011-2013 01
004 20841984 SEAT, RR (EBONY) CK107 (06) (AM8, HP2, 193) 2011-2013 01
004 20841985 SEAT, RR (CASHMERE) CK107 (06) (AM8, HP2, 333) 2011-2013 01
004 20841986 SEAT, RR (TITANIUM) CK107 (06) (AM8, HP2, 833) 2011-2013 01
004 20841988 SEAT, RR (EBONY) CK107 (06) (AM8, HP2, 193) 2011-2013 01
004 20841989 SEAT, RR (CASHMERE) CK107 (06) (AM8, HP2, 333) 2011-2013 01
004 20841990 SEAT, RR (TITANIUM) CK107 (06) (AM8, HP2, 833) 2011-2013 01
004 20841992 SEAT, RR (EBONY) CK1 (06) (AM8, HP2, KA6, Z75, 194) (EXC AX4) 2011-2013 01
004 20841993 SEAT, RR (CASHMERE) CK1 (06) (AM8, HP2, KA6, Z75, 394) (EXC AX4) 2011-2013 01
004 20841995 SEAT, RR (EBONY) CK1 (06) (AM8, HP2, KA6, Z75, 194) (EXC AX4) 2011-2013 01
004 20841996 SEAT, RR (CASHMERE) CK1 (06) (AM8, HP2, KA6, Z75, 394) (EXC AX4) 2011-2013 01
004 20841998 SEAT, RR (COCOA) CK1 (06) (AM8, HP2, ULT, Z75, 415) 2011-2013 01
004 20842000 SEAT, RR (COCOA) CK1 (06) (AM8, HP2, ULT, Z75, 415) 2011-2013 01
004 20842370 SEAT, RR (EBONY) CK107 (06) (AM8, KA6, Z75, 194) (EXC ARS, AX4, HP2) 2011-2013 01
004 20842371 SEAT, RR (CASHMERE) CK107 (06) (AM8, KA6, Z75, 394) (EXC ARS, AX4, HP2) 2011-2013 01
004 20842373 SEAT, RR (EBONY) CK107 (06) (AM8, KA6, Z75, 194) (EXC ARS, AX4, HP2) 2011-2013 01
004 20842374 SEAT, RR (CASHMERE) CK107 (06) (AM8, KA6, Z75, 394) (EXC ARS, AX4, HP2) 2011-2013 01
004 20842408 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, KA6, Z75, 194) (EXC AX4, HP2) 2011-2013 01
004 20842409 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, KA6, Z75, 394) (EXC AX4, HP2) 2011-2013 01
004 20842411 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, KA6, Z75, 194) (EXC AX4, HP2) 2011-2013 01
004 20842412 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, KA6, Z75, 394) (EXC AX4, HP2) 2011-2013 01
004 20842450 SEAT, RR (EBONY) CK107 (06) (AM8, 19C) (EXC 5T5) 2011-2013 01
004 20842451 SEAT, RR (CASHMERE) CK107 (06) (AM8, 33C) 2011-2013 01
004 20842454 SEAT, RR (EBONY) CK107 (06) (AM8, 19C) (EXC 5T5) 2011-2013 01
004 20842455 SEAT, RR (CASHMERE) CK107 (06) (AM8, 33C) 2011-2013 01
004 22784377 SEAT, RR (EBONY) CK1 (06) (AM8, HP2, ULT, Z75, 195) (EXC AX4) 2012-2013 01
004 22784378 SEAT, RR (EBONY) CK1 (06) (AM8, HP2, ULT, Z75, 195) (EXC AX4) 2012-2013 01
004 20842432 SEAT, RR (EBONY) CK107 (06) (AM8, AX4, KA6, Z75, 194) (EXC ARS, HP2) (EXPORT) 2011-2013 01
004 20842433 SEAT, RR (CASHMERE) CK107 (06) (AM8, AX4, KA6, Z75, 394) (EXC ARS, HP2) (EXPORT) 2011-2013 01
004 20842435 SEAT, RR (EBONY) CK107 (06) (AM8, AX4, KA6, Z75, 194) (EXC ARS, HP2) (EXPORT) 2011-2013 01
004 20842436 SEAT, RR (CASHMERE) CK107 (06) (AM8, AX4, KA6, Z75, 394) (EXC ARS, HP2) (EXPORT) 2011-2013 01
004 20842438 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, AX4, KA6, Z75, 194) (EXPORT) 2011-2013 01
004 20842439 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, AX4, KA6, Z75, 394) (EXPORT) 2011-2013 01
004 20842441 SEAT, RR (EBONY) CK107 (06) (AM8, ARS, AX4, KA6, Z75, 194) (EXPORT) 2011-2013 01
004 20842442 SEAT, RR (CASHMERE) CK107 (06) (AM8, ARS, AX4, KA6, Z75, 394) (EXPORT) 2011-2013 01
004 22751156 SEAT, RR (EBONY) CK1 (06) (AM8, AX4, HP2, KA6, Z75, 194) (EXPORT) 2011-2013 01
004 22751157 SEAT, RR (CASHMERE) CK1 (06) (AM8, AX4, HP2, KA6, Z75, 394) (EXPORT) 2011-2013 01
004 22751159 SEAT, RR (EBONY) CK1 (06) (AM8, AX4, HP2, KA6, Z75, 194) (EXPORT) 2011-2013 01
004 22751160 SEAT, RR (CASHMERE) CK1 (06) (AM8, AX4, HP2, KA6, Z75, 394) (EXPORT) 2011-2013 01
004 22827131 SEAT, RR (COCOA) CK1 (06) (AM8, AX4, HP2, ULT, Z75, 415) (EXPORT) 2012-2013 01
004 22827132 SEAT, RR (EBONY) CK1 (06) (AM8, AX4, HP2, ULT, Z75, 195) (EXPORT) 2012-2013 01
004 22827134 SEAT, RR (COCOA) CK1 (06) (AM8, AX4, HP2, ULT, Z75, 415) (EXPORT) 2012-2013 01
004 22827135 SEAT, RR (EBONY) CK1 (06) (AM8, AX4, HP2, ULT, Z75, 195) (EXPORT) 2012-2013 01
005 20986842 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (COCOA) CK1 (06) (AM8, HP2, ULT, 41I) 2012-2013 01
005 20986843 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (EBONY) CK1 (06) (AM8, HP2, 19I) 2012-2013 01
005 20986844 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (CASHMERE) CK1 (06) (AM8, HP2, 33I, 39I) 2012-2013 01
005 20986845 COVER, R/SEAT FRM OTR FIN (INCLS 6, 7) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2012-2013 01
006 15894130 LABEL, BAT (PART OF 5) CK1 (06) (AM8, HP2) 2008-2013 01
007 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) 2008-2013 11
008 03537772 NUT, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2008-2013 08
009 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 10) 2008-2013 08
010 20986872 COVER, R/SEAT FRM FRT FIN (INCLS 9) (COCOA) CK1 (06) (AM8, HP2, ULT, 41I) 2012-2013 01
010 20986873 COVER, R/SEAT FRM FRT FIN (INCLS 9) (EBONY) CK1 (06) (AM8, HP2, 19I) 2012-2013 01
010 20986874 COVER, R/SEAT FRM FRT FIN (INCLS 9) (CASHMERE) CK1 (06) (AM8, HP2, 33I, 39I) 2012-2013 01
010 20986875 COVER, R/SEAT FRM FRT FIN (INCLS 9) (TITANIUM) CK1 (06) (AM8, HP2, 83I) 2012-2013 01
011 11589329 CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 1) 2008-2013 09
