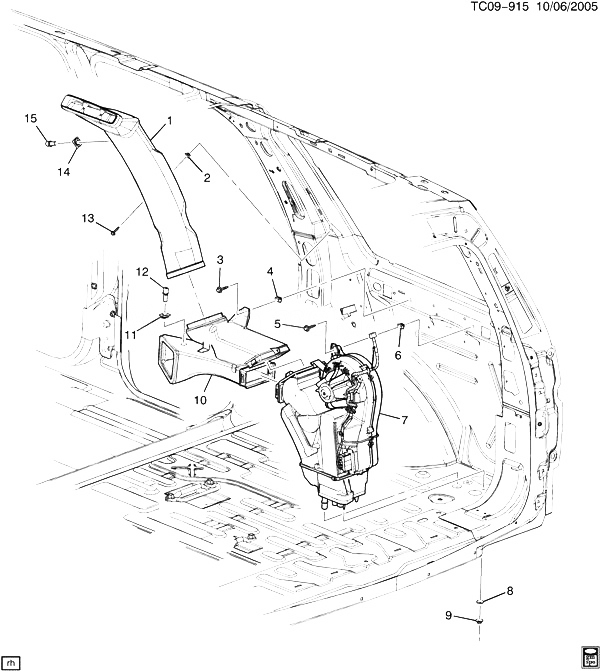

(TC09-915) 2007-2013 CK107(06) ВОЗДУХОРАСПРЕДЕЛИТЕЛЬНАЯ СИСТЕМА/REAR DUCTS(C69) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25897954 DUCT, AUX A/C AIR OTLT (INCLS 14) CK107 (06) (C69) 2007-2013 01
002 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (AUX A/C AIR OTLT DUCT) (10.512) 2007-2013 01
003 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (FLR RR AIR DISTR) (9.665) 2007-2013 01
004 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (FLR RR AIR DISTR) (10.512) 2007-2013 01
005 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AUX HTR A/C EVPR BLO MDL) (9.665) 2007-2013 01
006 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (AUX HTR A/C EVPR BLO MDL) (10.512) 2007-2013 01
007 MODULE, AUX HTR A/C EVPR BLO (SEE GROUP 09.000 AUXILIARY A/C EVAPORATOR BLOWER HEATER ASM FOR DETAILED ILLUSTRATED VIEW) 2007-2013
008 20733729 WASHER, SEALING, M5, 4 I.D., 25MM O.D., 4MM THK, RUB (RR BPR OTR FIL) (ACDelco #20733729) 2007-2013 02
009 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX HTR A/C EVPR BLO MDL) 2007-2013 02
010 15864151 DISTRIBUTOR, FLR RR AIR (INCLS 11) CK107 (06) (C69) 2007-2013 01
011 15152429 RETAINER, AMB AIR TEMP SEN (PUSH IN) (PART OF 10) (HOLE LINER TYPE) CK1, 2, 3 2007-2013 02
012 12160947 SENSOR, DUCT AIR TEMP (37.54MM) (TWIST LOCK STYLE) (ACDelco #15-5632) CK1, 2, 3 2007-2013 02
012 25885451 SENSOR, DUCT AIR TEMP (PUSH PIN STYLE) (ACDelco #15-51259) CK1, 2, 3 2008-2013 02
013 11589012 BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (AUX A/C AIR OTLT DUCT) (9.665) 2007-2013 01
014 15152429 RETAINER, AMB AIR TEMP SEN (PUSH IN) (PART OF 1) (HOLE LINER TYPE) CK1, 2, 3 2007-2013 02
015 12160947 SENSOR, DUCT AIR TEMP (TWIST LOCK STYLE) (ACDelco #15-5632) CK1, 2, 3 2007-2013 02
