| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

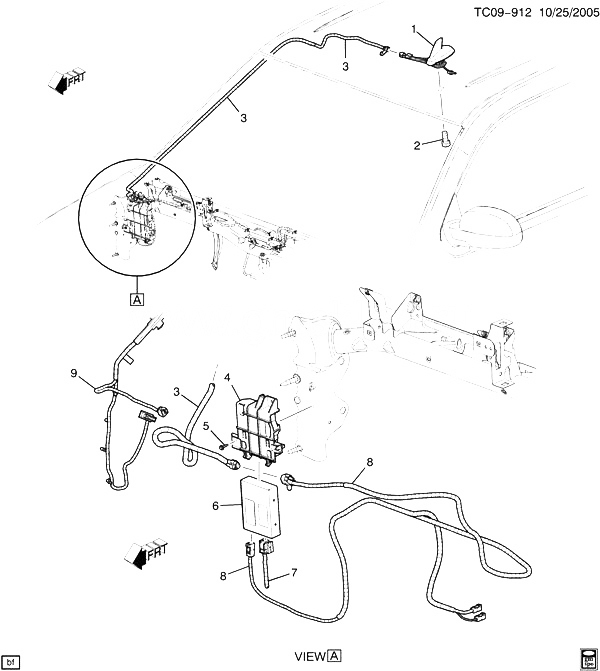

| 001 |
25775201 |
ANTENNA, RDO DIGITAL (INCLS 2) (XM ONLY ANTENNA) (ACDelco #25775201) |
CK1, 2, 3 (U2K) (EXC UE1) |
2007-2013 |
01 |
| 001 |
20791465 |
ANTENNA, DIGITAL RDO M/TEL VEH LOC (INCLS 2) (ACDelco #20791465) |
CK1, 2, 3 (UBS, U2K, UE1) |
2011-2013 |
01 |
| 002 |
|
BOLT, RDO ANT (PART OF 1) |
|
2009-2013 |
|
| 003 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) (PART OF 9) |
|
2012-2013 |
|
| 004 |
15201868 |
BRACKET, DIGITAL RDO RCVR |
CK1, 2, 3 |
2007-2013 |
01 |
| 005 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P CARR SUPT) (9.665) |
|
2007-2013 |
01 |
| 006 |
20938347 |
RECEIVER, DIGITAL RDO (ACDelco #20938347) |
CK1, 2, 3 (U2K) |
2007-2013 |
01 |
| 006 |
22737640 |
RECEIVER, DIGITAL RDO (ACDelco #22737640) |
CK1, 2, 3 (GMQ, UBS) |
2012-2013 |
01 |
| 007 |
|
HARNESS, I/P WRG HARN EXTN (INCLS 8) (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL EXTENSION FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 008 |
|
CABLE KIT, (SEE GROUP 09.000 CABLE KIT FOR DETAILED ILLUSTRATED VIEW) (PART OF 7) |
|
2011-2013 |
|
| 009 |
|
HARNESS, RF WRG (INCLS 3) (SEE GROUP 02.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
