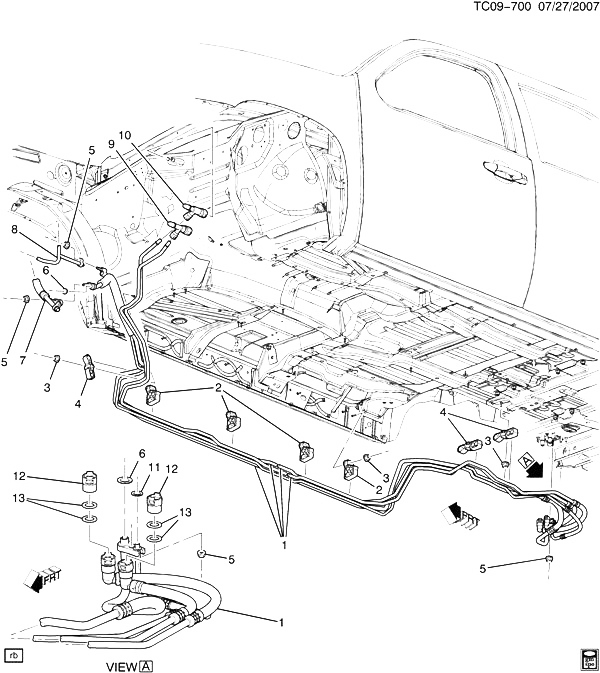

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
19130058 |
HOSE, AUX A/C EVPR AUX HTR (INCLS 2, 4, 6, 9-13) (8.846) (ACDelco #19130058) |
CK107 (06) (CJ2, C36, C69, HP2) |
2008-2013 |
01 |
| 001 |
19257318 |
HOSE, AUX A/C EVPR AUX HTR (INCLS 2, 4, 6, 9-13) (KENT-MORE TUBING REPAIR KIT J41425 REQD FOR INSTALLATION) (ACDelco #15-33439) |
CK107 (06) (CJ2, CJ3, C36, C69) (EXC HP2) |
2008-2013 |
01 |
| 002 |
15102168 |
CLIP, AUX A/C EVPR HOSE (PART OF 1) (2X2 PLASTIC) (SLOT ON SIDE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
CK107, 109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2013 |
04 |
| 003 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AUX A/C EVPR CMPR HOSE CLIP) |
|
2007-2013 |
07 |
| 004 |
15102169 |
CLIP, AUX A/C EVPR HOSE (PART OF 1) (SLOT IN MIDDLE WITH DIAMETERS OF 19.05, 9.52, AND 2 AT 12.7MM) |
CK107, 109, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2013 |
03 |
| 005 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) |
|
2007-2013 |
03 |
| 006 |
02724966 |
SEAL, A/C CMPR CNDSR HOSE (PART OF 1) (ACDelco #15-31101) |
CK1, 2 (CJ2, CJ3, C36, C67, C69) |
2007-2013 |
02 |
| 007 |
22876355 |
HOSE, A/C CMPR (SEE GROUP 09.000 A/C REFRIGERATION SYSTEM/FRONT FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-34529) |
CK1, 2 (06) (LC9, LMG, L20, L94, L96, CJ2, CJ3, C69) |
2011-2013 |
01 |
| 008 |
22876353 |
TUBE, A/C EVPR (SEE GROUP 09.000 A/C REFRIGERATION SYSTEM/FRONT FOR DETAILED ILLUSTRATED VIEW) (ACDelco #15-34538) |
CK1 (06) (LC9, LMG, L20, L94, CJ2, CJ3, C69) |
2011-2013 |
01 |
| 009 |
15055343 |
TEE, AUX HTR INL HOSE (PART OF 1) (NATURAL) (111MM LONG) |
CK1, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2013 |
01 |
| 010 |
15055342 |
TEE, AUX HTR INL HOSE (PART OF 1) (BLACK) (113MM LONG) |
CK1, 2 (06) (CJ2, CJ3, C36, C69) |
2007-2013 |
01 |
| 011 |
52474373 |
SEAL, A/C EVPR TUBE (19MM OD X 11MM ID) (PART OF 1) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
CK1, 2 (CJ2, CJ3, C36, C69) |
2007-2013 |
AR |
| 012 |
19130031 |
RETAINER KIT, AUX HTR INL OTLT HOSE CONN (INCLS 13) (PART OF 1) (INCL RETAINER, SEAL, SPACER, INSTRUCTION) |
CK1, 2 (06) |
2007-2013 |
01 |
| 013 |
|
SEAL, HTR INL OTLT PIPE (O-RING) (PART OF 1, 12) |
|
2007-2013 |
|
