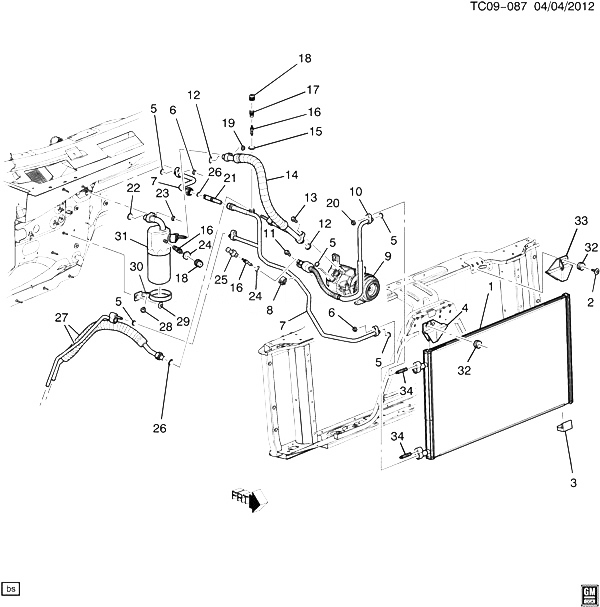

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20913751 |
CONDENSER, A/C (INCLS 4, 32-34) (ACDelco #15-63666) |
CK1 (06) (LC9, LMG, L20, L94, CJ2, CJ3, C69) |
2011-2013 |
01 |
| 002 |
11589039 |
BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (A/C CNDSR BRKT) |
|
2010-2013 |
02 |
| 003 |
15044225 |
INSULATOR, A/C CNDSR (LOWER) (ACDelco #15-63283) |
CK1, 2, 3 |
2010-2013 |
02 |
| 004 |
52481715 |
BRACKET, A/C CNDSR UPR (INLET/OUTLET) (PART OF 1) (INCLS 32) (114.5MM LONG) |
CK1, 2, 3 |
2010-2013 |
01 |
| 004 |
52482006 |
BRACKET, A/C CNDSR UPR (PART OF 1) (INCLS 32) (77.0MM LONG) (9.242) |
CK1, 2, 3 |
2010-2013 |
01 |
| 005 |
52474373 |
SEAL, A/C CMPR CNDSR HOSE (19MM OD X 11MM ID) (PART OF 7, 10) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
CK1, 2, 3 |
2010-2013 |
AR |
| 005 |
13579648 |
SEAL, A/C CMPR CNDSR HOSE (19MM OD X 11MM ID) (PART OF 7, 10) (SLIMLINE WASHER, 1/2) (MULTI-SIDED) |
CK1 (LC9, LMG, L20, L94, L9H) |
2012-2013 |
03 |
| 006 |
12477570 |
NUT, HFH, M8X1.25X8, 10.9 (A/C EVPR TUBE) |
|
2010-2013 |
02 |
| 007 |
22876353 |
TUBE, A/C EVPR (INCLS 5, 8, 15-18, 21, 26) (ACDelco #15-34538) |
CK1 (06) (LC9, LMG, L20, L94, CJ2, CJ3, C69) |
2011-2013 |
01 |
| 008 |
15734255 |
CLIP, A/C EVPR TUBE (PART OF 7) (HOLD ONE 12.6 DIAM PIPE, W/ PUSHIN RETAINER) |
CK1, 2, 3 |
2010-2013 |
01 |
| 009 |
|
COMPRESSOR, A/C (SEE GROUP 09.000 AC/ COMPRESSOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 010 |
22876350 |
HOSE, A/C CNDSR (INCLS 5, 16, 24, 25) (ACDelco #15-34531) |
CK1 (06) (LC9, LMG, L20, L94, CJ2, CJ3, C69) |
2010-2013 |
01 |
| 011 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C CNDSR HOSE) (ACDelco #11570082) |
|
2010-2013 |
01 |
| 012 |
13579646 |
SEAL, A/C ACCUM FRT HOSE (PART OF 14) (AT A/C COMPR HOSE) |
CK1, 2, 3 |
2012-2013 |
02 |
| 013 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C ACCUM HOSE) (ACDelco #11570082) |
|
2010-2013 |
01 |
| 014 |
22876355 |
HOSE, A/C CMPR (INCLS 12, 26) (ACDelco #15-34529) |
CK1, 2 (06) (LC9, LMG, L20, L94, L96, CJ2, CJ3, C69) |
2011-2013 |
01 |
| 015 |
52458183 |
SEAL, A/C REFRIG SERV VLV (O RING) (9.25MM ID) (PART OF 7) (BLACK) (RUBBER) (ACDelco #15-30572) |
CK1, 2, 3 |
2010-2013 |
01 |
| 016 |
03041827 |
CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 7, 10, 17, 31) (W/O FITTING) (ACDelco #15-1119) |
CK1, 2, 3 |
2010-2013 |
AR |
| 017 |
52458184 |
VALVE, A/C REFRIG SERV (PART OF 7) (INCLS 16) (M12X1.5 THD) (INCLS FITTING SEAL) (ACDelco #15-5438) |
CK1, 2, 3 |
2010-2013 |
01 |
| 018 |
52458768 |
CAP, A/C REFRIG SERV VLV (HIGH SIDE CHARGE PORT, ACCUMULATOR EVAP TUBE) (PART OF 7, 31) (M8X1.0) (WITH SEAL) (LONG THREADED, NON-TETHERED CAP) (ACDelco #15-33289) |
CK1, 2, 3 |
2010-2013 |
02 |
| 019 |
12477570 |
NUT, HFH, M8X1.25X8, 10.9 (A/C CMPR CNDSR HOSE) |
|
2010-2013 |
02 |
| 020 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CMPR CNDSR HOSE) (8.915) (ACDelco #11514596) |
|
2010-2013 |
01 |
| 021 |
19259601 |
ORIFICE, A/C CNDSR (PART OF 7) (ACDelco #15-33410) |
CK1, 2, 3 |
2011-2013 |
01 |
| 022 |
13579646 |
SEAL, A/C ACCUM FRT TUBE (PART OF 31) (AT A/C COMPR HOSE) (9.222) |
CK1, 2, 3 |
2012-2013 |
01 |
| 023 |
12477570 |
NUT, HFH, M8X1.25X8, 10.9 (A/C ACCUM RET) |
|
2010-2013 |
01 |
| 024 |
19188397 |
O-RING, 7.65MM ID, 1.78 MM THK, NEOPRENE (PART OF 10, 31) (ACDelco #15-3592) |
|
2010-2013 |
01 |
| 025 |
22678731 |
SENSOR, A/C REFRIG PRESS (PART OF 10) (HIGH PRESSURE) (ALUMINUM W/O COATING) (ACDelco #15-50147) |
CK1, 2, 3 |
2010-2013 |
01 |
| 026 |
03094214 |
O-RING, ID .426X.070 THK, MATERIAL-NEOPRENE (PART OF 7, 14) (ACDelco #15-3614) |
|
2010-2013 |
01 |
| 027 |
|
HOSE, AUX A/C EVPR AUX HTR (SEE GROUP 09.000 A/C REFRIGERATION SYSTEM-REAR FOR DETAILED ILLUSTRATED VIEW)) |
|
2010-2013 |
|
| 028 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (A/C ACCUM BRKT) |
|
2010-2013 |
01 |
| 029 |
11588331 |
NUT, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (A/C ACCUM BRKT) |
|
2010-2013 |
01 |
| 030 |
15194317 |
BRACKET, A/C ACCUM |
CK1, 2 (06) (LC9, LMG, L20, L94, L96, CJ2, CJ3) |
2011-2013 |
01 |
| 031 |
20828233 |
ACCUMULATOR, A/C (INCLS 16, 18, 22, 24) (INCLS CORE CAP) (ACDelco #15-11067) |
CK1, 2, 3 (LC9, LMG, LU3, L20, L9H, L94, CJ2, CJ3, C67, C69) |
2011-2013 |
01 |
| 032 |
52476687 |
INSULATOR, A/C CNDSR (PART OF 1, 4, 33) (UPPER) (6.602) |
CK1, 2, 3 |
2010-2013 |
01 |
| 033 |
52481716 |
BRACKET, A/C CNDSR UPR (RETURN) (INLET/OUTLET) (PART OF 1) (INCLS 32) (114.5MM LONG) |
CK1, 2, 3 |
2010-2013 |
01 |
| 033 |
52482008 |
BRACKET, A/C CNDSR UPR (INLET/OUTLET) (PART OF 1) (INCLS 32) (77.0MM LONG) (RETURN SIDE) (9.242) |
CK1, 2, 3 |
2010-2013 |
01 |
| 034 |
11561065 |
STUD, A/C CNDSR (PART OF 1) (STRAIGHT M8X1.25X13.5, M8X1.25X27) |
CK1, 2, 3 |
2010-2013 |
02 |
