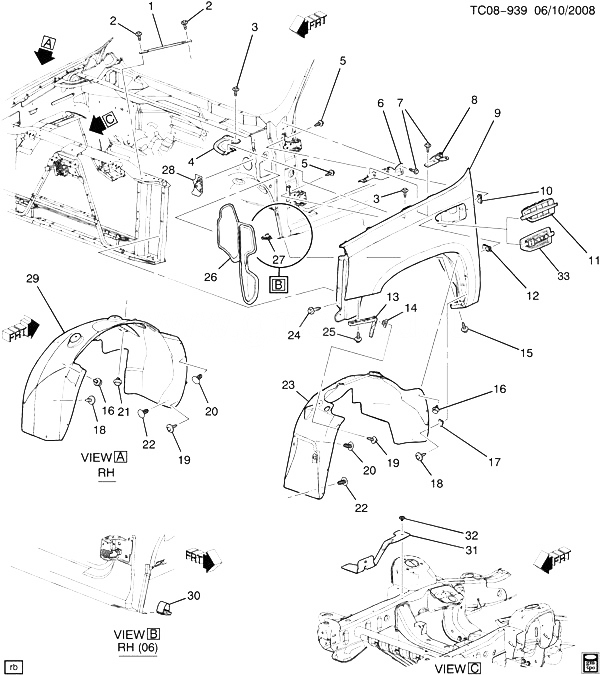

(TC08-939) 2009-2013 CK1(06-36) КРЫЛО И КОЛЕСНАЯ АРКА/ПЕРЕДНЯЯ ЧАСТЬ (CADILLAC Z75) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25815065 BRACE, F/END SH MET DIAG CK1, 2, 3 2009-2013 01
002 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (F/END SH MET DIAG BR) 2009-2013 02
003 11515755 BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (F/FDR RR UPR BR) (T/W 12345493 REPLCS 25534835) 2009-2013 08
004 15185449 BRACE, F/FDR RR UPR CK1, 2, 3 2009-2013 01
004 15185450 BRACE, F/FDR RR UPR CK1, 2, 3 2009-2013 01
005 11610010 BOLT, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (F/FDR INR PNL) 2009-2013 04
006 15870422 BRACKET, F/FDR UPR CK1, 2, 3 2009-2013 01
006 15951192 BRACKET, F/FDR UPR CK1, 2 (06) 2009-2013 01
007 11570082 BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (F/FDR UPR BRKT) (ACDelco #11570082) 2009-2013 06
008 15887401 BRACKET, HOOD HGE LWR (PART OF 9) CK1, 2, 3 2009-2013 01
008 15887400 BRACKET, HOOD HGE LWR (PART OF 9) CK1, 2, 3 2009-2013 01
009 25992408 FENDER, FRT (INCLS 8) CK1 (06-36) (Z75) (EXC TR2) 2010-2013 01
009 25992409 FENDER, FRT (INCLS 8) CK1 (06-36) (Z75) (EXC TR2) 2010-2013 01
009 22900197 FENDER, FRT (INCLS 8) CK1 (06) (TR2, Z75) (EXPORT) 2013-2013 01
009 25819535 FENDER, FRT (INCLS 8) CK1 (06) (TR2, Z75) (EXPORT) 2013-2013 01
010 11516149 NUT, U, 8X1.25, MULTI THD, .08-4.0 THK PNL, PZ (F/FDR RR UPR BRKT) 2009-2013 02
011 15860253 INSERT, F/FDR CTR RR UPR MLDG (CHROME) CK1 (06-36) (Z75) (EXC HP2, WHN) 2012-2013 01
011 15860254 INSERT, F/FDR CTR RR UPR MLDG (CHROME) CK1 (06-36) (Z75) (EXC HP2, WHN) 2012-2013 01
012 11569854 NUT, U SPECIAL, M8X1.25, SAE 1050 STL, GMW3359 (SILVER) (F/FDR RR CTR BRKT) 2009-2013 02
013 25948814 BRACKET, FRT BPR FASCIA SI (INCLS 14) CK1 (06-36) (Z75) 2009-2013 01
013 25948815 BRACKET, FRT BPR FASCIA SI (INCLS 14) CK1 (06-36) (Z75) 2009-2013 01
014 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 13) (10.512) 2009-2013 02
015 11517164 SCREW, HEX M8X1.25X20 W/CON WA (F/FDR LWR) 2009-2013 02
016 11589292 RETAINER, PUSH-IN, FITS 8.5 DIA HOLE IN 2-4.5 THK PNL, NYLON 6/6 GMP.PA66.015 (FRT W/H LNR (PUSH IN)) 2009-2013 10
017 11609952 NUT, U-STYLE M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (FRT W/H LNR) 2009-2013 04
018 11562172 BOLT, FRT W/H LNR CK1, 2 (06-36) 2009-2013 AR
019 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FRT BPR FASCIA OTR BRKT) 2009-2013 04
020 11609489 BOLT, HEX W/ WASHER, 4.2X1.41X25, 14.5 THD17 OD, GM6010M STL, GMW4205 (FRT BPR FASCIA OTR BRKT) 2009-2013 04
021 01605396 RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (FRT W/H LNR (PUSH IN)) 2009-2013 AR
022 11562024 RETAINER, PUSH IN, 7.5X36.5, FITS 6.35 HOLE IN 2.29-18.34 THK PNL (FRT W/H LNR (PUSH IN)) 2009-2013 02
023 22860081 LINER, FRT W/H CK1 (06-36) (Z75) (EXC HP2, ULT) 2009-2013 01
023 22860081 LINER, FRT W/H CK1 (06-36) (T84, ULT, Z75) (EXC HP2) 2009-2013 01
023 22860097 LINER, FRT W/H CK1 (06-36) (HP2, Z75) (EXC ULT) 2009-2013 01
023 22860097 LINER, FRT W/H CK1 (06-36) (HP2, T84, ULT, Z75) 2012-2013 01
023 22860089 LINER, FRT W/H CK1 (06) (WHN) 2012-2013 01
023 22860089 LINER, FRT W/H CK1 (06) (ULT, Z75) (EXC HP2, V76) 2012-2013 01
023 22860095 LINER, FRT W/H CK1 (06) (HP2, ULT, Z75) (EXC V76) 2012-2013 01
024 11610010 BOLT, HEX W/ CON WA, M8X1.25X40, 32 THD, 28 OD, 9.8, 7114M, MACH, P-PT (F/FDR INR PNL) 2009-2013 06
025 11610055 BOLT, HWASH, M6X1X23 (FRT BPR FASCIA SI BRKT) 2009-2013 04
026 20906466 INSULATOR, COWL S/PNL CK1, 2, 3 2009-2013 01
026 20906467 INSULATOR, COWL S/PNL CK1, 2, 3 2009-2013 01
027 11570321 NUT, F/FDR LWR CK1, 2 (06) 2009-2013 02
028 15862261 BRACKET, FRT W/H PNL UPR CK1, 2, 3 2009-2013 01
029 22860082 LINER, FRT W/H CK1 (06-36) (Z75) (EXC ULT) 2009-2013 01
029 22860082 LINER, FRT W/H CK1 (06-36) (T84, ULT, Z75) 2009-2013 01
029 22860090 LINER, FRT W/H CK1 (06) (ULT, Z75) (EXC V76) 2012-2013 01
029 22860090 LINER, FRT W/H CK1 (06) (WHN) 2012-2013 01
030 11519360 NUT, U, W/PLASTISOL, M8X1.25, 35.8X25, 21 C/E, 2.5-5 PNL, 1050, 6173M (F/FDR LWR) 2009-2013 01
031 15893710 SHIELD, ENG LWR FRT SPH CK1 (06-36) 2009-2013 01
031 15893711 SHIELD, ENG LWR FRT SPH CK1 (06-36) 2009-2013 01
032 11517560 SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (ENG LWR FRT SPH SHLD) 2009-2013 04
033 25961847 ORNAMENT, F/FDR (CHROME) CK1 (06) (HP2, Z75) 2009-2013 01
033 25961848 ORNAMENT, F/FDR (CHROME) CK1 (06) (HP2, Z75) 2009-2013 01
033 22890976 ORNAMENT, F/FDR (PAINT TO MATCH) CK1 (06) (WHN, Z75) 2012-2013 01
033 22890977 ORNAMENT, F/FDR (PAINT TO MATCH) CK1 (06) (WHN, Z75) 2012-2013 01
