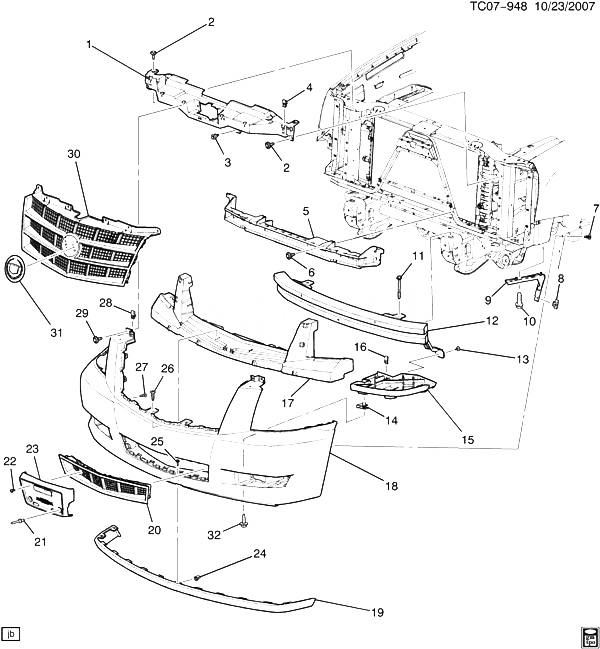

(TC07-948) 2012-2013 CK1(06) БАМПЕР ПЕРЕДНИЙ (CADILLAC Z75, PLATINUM EDITION ULT, SPECIAL EDITION WHN, EXC T84) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
015 21996230 FILLER, FRT BPR OTR FRT (INCLS 14, 16) CK1 (06) (TCB) 2013-2013 01
015 21996231 FILLER, FRT BPR OTR FRT (INCLS 14, 16) CK1 (06) (TCB) 2013-2013 01
015 15907626 FILLER, FRT BPR OTR FRT (INCLS 14, 16) CK1 (06) (CZ2, CZ3, ULT, Z75) (EXC V76) 2013-2013 01
016 11609385 NUT, U-TYPE, M6X1, 29.5 LEN, 12.5 WID, 19.5 CEN-END, 1050, GMW3359 (PART OF 15) 2008-2013 01
017 15907623 SUPPORT, FRT BPR FASCIA CK1 (06) (WHN, Z75) (EXC T84) 2012-2013 01
017 15907623 SUPPORT, FRT BPR FASCIA CK1 (06) (ULT, Z75) (EXC V76) 2012-2013 01
018 25975452 FASCIA, FRT BPR (PAINT TO MATCH) CK1 (06) (ULT, VGD, Z75) 2008-2013 01
019 15907627 DEFLECTOR, FRT AIR CK1 (06) (ULT, Z75) (EXC T84) 2009-2013 01
019 15907627 DEFLECTOR, FRT AIR CK1 (06) (WHN, Z75) (EXC T84) 2012-2013 01
020 GRILLE, FRT LWR (SEE GROUP 01.000 GRILLE/RADIATOR FOR DETAILED ILLUSTRATED VIEW) 2008-2013
021 22579423 RIVET, FRT LIC PLT BRKT (5 X 25) (10.710) CK1 (06-36) (VK3, Z75) 2008-2013 04
022 09423101 SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (FRT LIC PLT) 2008-2013 04
023 25782363 BRACKET, FRT LIC PLT (PAINT TO MATCH) CK1 (06) (ULT, VK3, WHN, Z75) 2012-2013 01
024 11515637 SCREW, FLT CSK, M4.2X1.41X13, 9.2 OD, 6172M, CC, TAP-BSSD, C/R (FRT OTR A/DFL) (**VPI 1-877-846-8243) 2008-2013 06
025 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT OTR A/DFL) 2008-2013 06
026 25705182 BOLT, FRT BPR FASCIA CTR SUPT (M9.5X6.0 HI-LO, TL 47MM, 22 OD) (12.249) CK1 (06-36) 2008-2013 AR
027 22549046 SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (FRT GRL CTR PNL) 2008-2013 26
028 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT UPR GRL) 2008-2013 02
029 11589039 BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (PART OF 30) 2008-2013 06
030 GRILLE, FRT UPR (INCLS 29, 31) (SEE GROUP 01.000 GRILLE/RADIATOR FOR DETAILED ILLUSTRATED VIEW) 2008-2013
031 22860589 EMBLEM, FRT GRL (PART OF 30) (MEDALLION) CK1 (06) (WHN, Z75) (EXC T84) 2012-2013 01
031 22860589 EMBLEM, FRT GRL (PART OF 30) (MEDALLION) CK1 (06) (ULT, Z75) (EXC T84) 2009-2013 01
001 15904442 BRACKET, FRT GRL UPR (INCLS 3, 4) CK1 (Z75) 2008-2013 01
002 11610055 BOLT, HWASH, M6X1X23 (FRT GRL SUPT REINF) 2008-2013 06
003 22581725 CLIP, HOOD PRIM LAT REL CBL (PART OF 1) (7.0 MM DIA) (HOLDS (1) PIPE 4.76 TO 6.35) (3.145) CK1 (Z75) 2008-2013 01
004 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 1) 2008-2013 01
005 22742861 BRACKET, FRT BPR FASCIA CK1 (06-36) (X88, Z75) 2012-2013 01
006 11610055 BOLT, HWASH, M6X1X23 (FRT BPR FASCIA) 2008-2013 06
007 10121502 RETAINER, FITS .250 HOLE, 1.01LG.700-OD NYLON BLACK (FRT BPR FASCIA OTR BRKT) 2008-2013 04
008 11518531 NUT, PUSH-IN, M4.2X1.41, 15.9X8.4, .7-2.1 PNL, SAE 1050 STL, 7111M, 8.65 SQ HOL (PART OF 9) (10.512) 2008-2013 01
009 25948814 BRACKET, FRT BPR FASCIA SI (INCLS 8) CK1 (06-36) (Z75) 2008-2013 01
009 25948815 BRACKET, FRT BPR FASCIA SI (INCLS 8) CK1 (06-36) (Z75) 2008-2013 01
010 11589039 BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT BPR FASCIA SI BRKT) 2008-2013 04
011 11519154 BOLT, FRT BPR IMP BAR (M14X2X140) CK1, 2, 3 2008-2013 02
012 25947497 BAR, FRT BPR IMP (W/ AIR DAM BRACES) CK1, 2 (06-36) 2012-2013 01
013 11589398 BOLT, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (FRT BPR LWR FASCIA) 2008-2013 02
014 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (PART OF 15) 2008-2013 01
015 15907625 FILLER, FRT BPR OTR FRT (INCLS 14, 16) CK1 (06) (ULT, WHN, Z75) (EXC T84) 2012-2013 01
015 15907626 FILLER, FRT BPR OTR FRT (INCLS 14, 16) CK1 (06) (ULT, WHN, Z75) (EXC T84) 2012-2013 01
032 11609465 BOLT, HWH, M4.2X1.41X18, 12.5 OD, 6010M, PS (FRT BPR OTR FRT FIL) (8.977) 2008-2013 08
