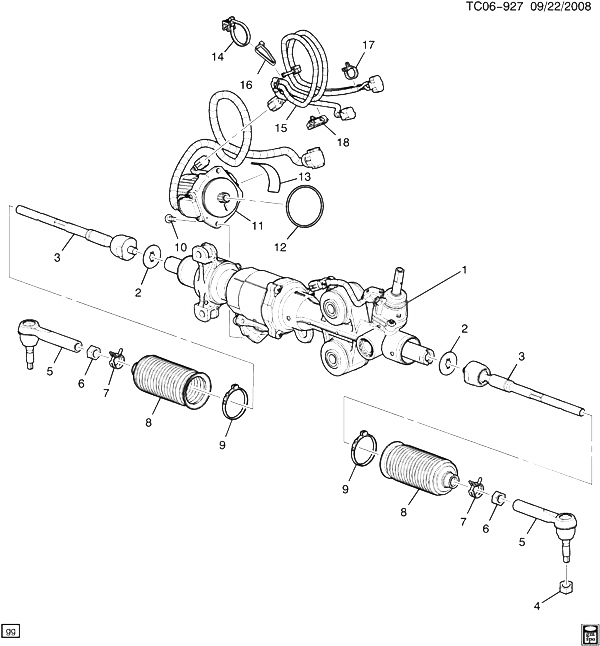

(TC06-927) 2009-2013 CK1(06-43) РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ (HYBRID HP2) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 20870559 GEAR, STRG (INCLS 2, 3, 6-18) (LESS OUTER TIE ROD ENDS) (INCLS P/S ASST MOTOR AND ALL CPS) CK107 (06) (HP2) 2008-2013 01
002 WASHER, S/GR RACK THR (PART OF 1) 2009-2013
003 15895647 ROD KIT, STRG LNKG INR TIE (PART OF 1) (INCLS 6, 7, 9) (TWO-MODE HYBRID) CK107 (06) (HP2) 2008-2013 02
004 11516074 NUT, STRG LNKG OTR TIE ROD (PART OF 5) (HEX M14X2X13) (8.917) CK1, 2, 3 2008-2013 02
005 15895646 ROD KIT, STRG LNKG OTR TIE (INCLS 4) (TWO-MODE HYBRID) CK107 (06) (HP2) 2008-2013 01
006 11562407 NUT, STRG LNKG INR TIE ROD (PART OF 1, 3) (M16X1.5, 13THK, 6T THD) CK107 (06) (HP2) 2008-2013 02
007 11570615 CLAMP, HOSE SPRINGBAND, 26 NOMINAL DIA, 15 THK, STL, ROBO (PART OF 1, 3, 8) 2008-2013 02
008 15895648 BOOT KIT, S/GR (PART OF 1) (INCLS 7, 9) (TWO-MODE HYBRID) CK107 (06) (HP2) 2008-2013 02
009 22913281 CLAMP, S/GR BOOT (PART OF 1, 3, 8) CK107 (06) (HP2) 2008-2013 02
010 11569910 BOLT, P/S ASST MOT (PART OF 1, 11) (M8X1.25X25, 20THD) CK1 (HP2) 2008-2013 02
011 19210914 HARNESS KIT, P/S WRG (PART OF 1) (INCLS 10, 12-18) CK107 (06) (HP2) 2011-2013 01
012 15895637 SEAL, P/S ASST MOT (PART OF 1, 11) CK107 (06) (HP2) 2008-2013 01
013 25813638 LABEL, P/S FLUID VOLTAGE CAUTION (PART OF 1, 11) (TWO-MODE HYBRID) CK107 (06) (HP2) 2008-2013 01
014 11570589 STRAP, WRG HARN (EDGE CLIP) (PART OF 1, 11) (PA66 BLACK, 200 LENGTH) CK107 (06) (HP2) 2008-2013 01
015 HARNESS KIT, P/S WRG (PART OF 1, 11) 2009-2013
016 12355066 STRAP, PLASTIC ADJ TIE (215MM LG) (PART OF 1, 11) (8.965) (ACDelco #16TS825) 2008-2013 03
017 11569906 STRAP, WRG HARN (PART OF 1, 11) (FITS 11 DIA HOLE, 140 LENGTH, POLYPROPYLENE) CK107 (06) (HP2) 2008-2013 01
018 11569907 STRAP, WRG HARN (TRIPLE CLIP) (PART OF 1, 11) (FITS HOLE 6.35 DIA, HOLDS TWO LINE DIA 10.6) CK107 (06) (HP2) 2008-2013 01
