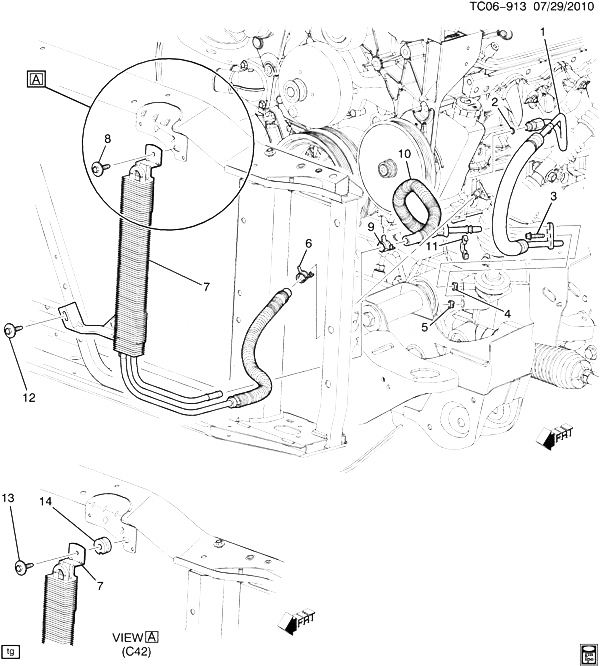

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25858603 |
HOSE, P/S GR INL (INCLS 2, 3) |
CK1 (LC9, LFT, LMG, L20, L9H, L94) |
2011-2013 |
01 |
| 002 |
26001594 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 1) (7.65MM IDX1.63MM THK) |
CK1 |
2007-2013 |
01 |
| 003 |
11562063 |
BOLT, HFH, M6X1X25, 18 THD, 12.8 OD, 9.8 STL, HEX CHROME FREE, SN-ZN. (PART OF 1) |
|
2007-2013 |
01 |
| 004 |
26100863 |
SEAL, P/S GR OTLT HOSE (O-RING) (13.83 OD 1.0 THK) (TAPERED END) (6.824) |
CK1 |
2007-2013 |
01 |
| 005 |
26100863 |
SEAL, P/S GR INL HOSE (O RING) (13.83 OD 1.0 THK) (TAPERED END) (6.824) |
CK1 |
2007-2013 |
01 |
| 006 |
11571140 |
CLAMP, SPRINGBAND, 16 DIA, 15 WIDTH, STL PER GM6298M, GMW14083 (PART OF 7) |
|
2007-2013 |
01 |
| 007 |
25918689 |
COOLER, P/S FLUID (INCLS 6) |
CK1 (LC9, LFT, LMG, L9H, L94, MYC) |
2011-2013 |
01 |
| 008 |
11589039 |
BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (P/S FLUID CLR) |
|
2007-2013 |
01 |
| 009 |
11571140 |
CLAMP, SPRINGBAND, 16 DIA, 15 WIDTH, STL PER GM6298M, GMW14083 (PART OF 10) |
|
2007-2013 |
01 |
| 010 |
15812565 |
HOSE, P/S GR OTLT (INCLS 9) |
CK1 |
2007-2013 |
01 |
| 012 |
11589398 |
BOLT, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (P/S FLUID CLR) |
|
2007-2013 |
01 |
| 013 |
11589398 |
BOLT, HEX HD, W/CON WA, M6X1X30, 18.11 THD, 24 O.D., 9.8, GMW3179, BLACK (P/S FLUID CLR) |
|
2007-2013 |
02 |
| 014 |
52476687 |
INSULATOR, P/S FLUID CLR (UPPER) |
CK1, 2, 3 |
2013-2013 |
01 |
