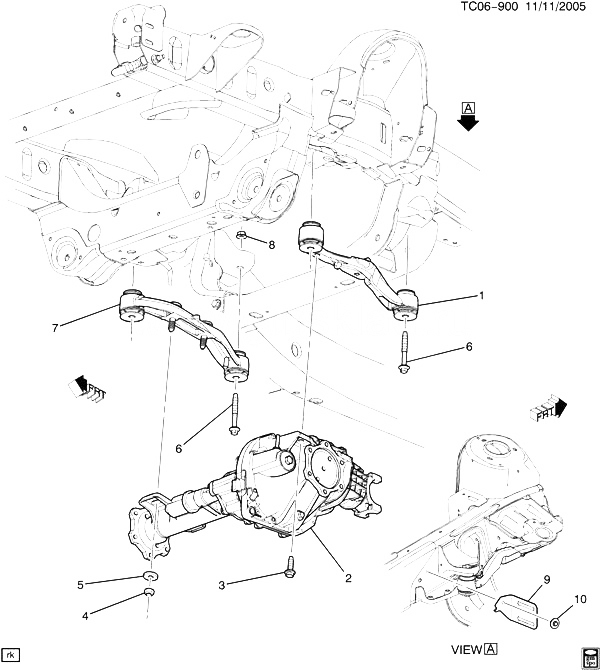

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15201933 |
BRACKET, FRT DIFF CARR (SEE GROUP 07.000 FRAME FOR DETAILED ILLUSTRATED VIEW) |
K1 |
2007-2013 |
01 |
| 002 |
|
AXLE, FRT (SEE GROUP 06.000 DIFFERENTIAL CARRIER/FRONT AXLE FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 003 |
11519538 |
BOLT, FRT DIFF CARR (M12X1.75X45.8, 28THD) (18 DRIVER SIZE) (8.900) |
K1 |
2007-2013 |
02 |
| 004 |
11562485 |
NUT, FRT DIFF CARR BRKT (HF M12X1.75X14, 34 OD) |
K1 |
2007-2013 |
02 |
| 005 |
11610231 |
WASHER, FLAT, 15X32X4.45, SAE 1050-1080 STL, HRC 40-45, GMW3179 (FRT DIFF CARR BRKT) |
|
2007-2013 |
02 |
| 006 |
11561577 |
BOLT, FRT DIFF CARR BRKT (BOLT - HFH, M12X1.75X95, 30 THD, 26.6 OD, 10.9, GMW3359, ADH 6175M) (8.900) |
K1 |
2007-2013 |
04 |
| 007 |
15201932 |
BRACKET, FRT DIFF CARR (SEE GROUP 07.000 FRAME FOR DETAILED ILLUSTRATED VIEW) |
K1 |
2007-2013 |
01 |
| 008 |
11516078 |
NUT, FRT DIFF CARR BRKT (M12X1.75X14THK, 25 OD) (8.917) |
K107 (06) |
2007-2013 |
04 |
| 009 |
15847253 |
SHIELD, FRM FRT HT |
K1 (LC9, LMG, LU3, LZ1, L20, L9H, L94) |
2010-2013 |
01 |
| 010 |
11517560 |
SCREW, FLAT WA (NRW) AND HX WA HD, M8X1.25X25 (FRM FRT H/SHLD) |
|
2007-2013 |
01 |
