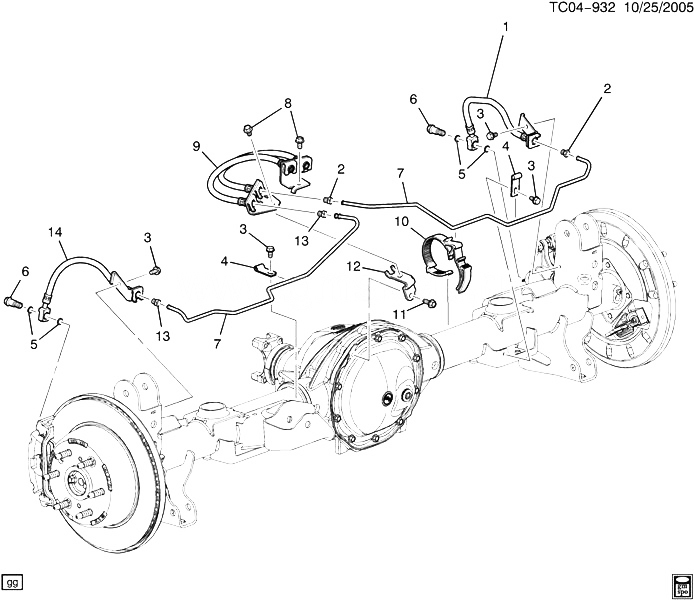

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25906096 |
HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1526) |
CK1 (06-36) (JD9, J92) |
2008-2013 |
01 |
| 001 |
25906096 |
HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1526) |
CK1 (06-36) (PPV) |
2009-2013 |
01 |
| 001 |
25890942 |
HOSE, RR BRK (CALIPER) (INCLS 5, 6) |
K107 (06) (CE9) (EXPORT) |
2010-2013 |
01 |
| 002 |
11569751 |
NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE) |
|
2007-2013 |
02 |
| 003 |
11515756 |
BOLT, HFH, M8X1.25X20, 17THD, 18 O.D., 10.9, 7114M (RR BRK C/OVR PIPE BRKT) |
|
2007-2013 |
04 |
| 004 |
11561240 |
CLAMP, SINGLE CLOSED-LOOP, DIA 7.25MM, C-TO-C 36.5, WIDTH 20, HOLE DIA 11 (RR BRK C/OVR PIPE) (8.948) |
|
2007-2013 |
01 |
| 005 |
21012386 |
WASHER, RR BRK HOSE (PART OF 1, 14) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) |
CK1, 2, 3 |
2007-2013 |
04 |
| 006 |
11569590 |
BOLT, RR BRK HOSE (PART OF 1, 14) (M10X1X27.5, 16.9THD) (BANJO) |
CK1 (06-36) |
2007-2013 |
01 |
| 007 |
88983905 |
PIPE, BRK (3/16 X 16) (BULK TUBING) (NYLON COATING) (ACDelco #88983905) |
CK1, 2, 3 |
2007-2013 |
AR |
| 008 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (RR BRK HOSE BRKT) |
|
2007-2013 |
02 |
| 009 |
25890941 |
HOSE, RR BRK (JOUNCE) |
K107 (06) (XA1) (EXC AXN) |
2008-2013 |
01 |
| 009 |
25890941 |
HOSE, RR BRK (JOUNCE) |
K107 (06) (CE9) (EXC AXN) |
2010-2013 |
01 |
| 009 |
25906094 |
HOSE, RR BRK (JOUNCE) (ACDelco #176-1541) |
CK1 (06-36) (AXN, JD9, J92) |
2008-2013 |
01 |
| 009 |
25906095 |
HOSE, RR BRK (JOUNCE) (ACDelco #176-1525) |
K1 (06-36) (JD9, J92) (EXC AXN) |
2008-2013 |
01 |
| 009 |
25906095 |
HOSE, RR BRK (JOUNCE) (ACDelco #176-1525) |
CK1 (06-36) (PPV) |
2009-2013 |
01 |
| 010 |
15234822 |
STRAP, RR BRK PIPE |
CK1 |
2007-2013 |
AR |
| 011 |
12471307 |
BOLT, R/AXL HSG CVR (M8X1.25X22.6, 19.2THD) (13 DRIVER SIZE) |
CK1, 2, 3 |
2007-2013 |
09 |
| 012 |
20763162 |
BRACKET, RR BRK C/OVR PIPE |
CK1 |
2007-2013 |
01 |
| 013 |
11569751 |
NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M (RR BRK C/OVR PIPE) |
|
2007-2013 |
02 |
| 014 |
25906097 |
HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1528) |
CK1 (06-36) (JD9, J92) |
2008-2013 |
01 |
| 014 |
25906097 |
HOSE, RR BRK (AT CALIPER) (INCLS 5, 6) (ACDelco #176-1528) |
CK1 (06-36) (PPV) |
2009-2013 |
01 |
| 014 |
25890943 |
HOSE, RR BRK (CALIPER) (INCLS 5, 6) |
K107 (06) (CE9) (EXPORT) |
2010-2013 |
01 |
