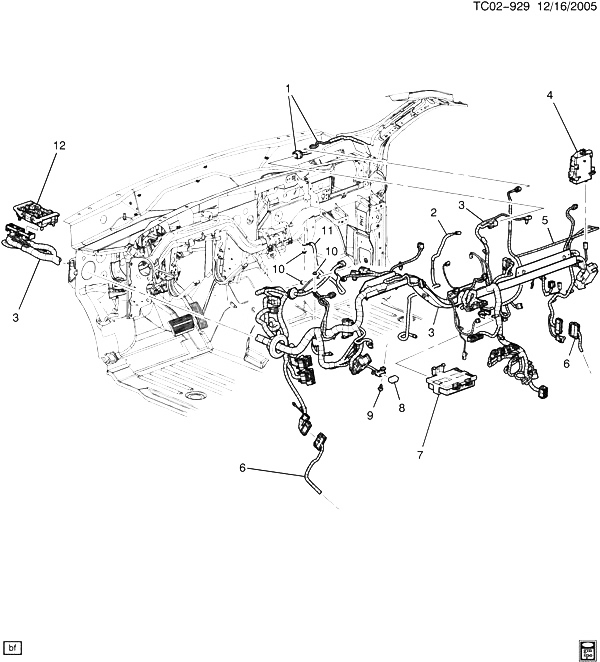

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, RF WRG (SEE GROUP 02.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 002 |
22847989 |
CABLE, RDO ANT CBL EXTN RDO END (1021 MM) (ACDelco #22847989) |
CK1 (U84, Z75) |
2007-2013 |
01 |
| 003 |
22899203 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (BRS, UE1, Z75) (EXC HP2, T4Q, UFT, ULT, U42) |
2012-2013 |
01 |
| 003 |
22899203 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (UE1, UFT, Z75) (EXC HP2, T4Q, ULT, U42) |
2012-2013 |
01 |
| 003 |
22899204 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (BRS, DNU, UE1, Z75) (EXC T4Q, UFT, ULT) |
2012-2013 |
01 |
| 003 |
22899204 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (DNU, UE1, UFT, Z75) (EXC T4Q, ULT) |
2012-2013 |
01 |
| 003 |
22899205 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (T4Q, UE1, UFT, WHN, Z75) (EXC DNU, HP2) |
2012-2013 |
01 |
| 003 |
22899205 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (UE1, UFT, ULT, Z75) (EXC DNU, HP2) |
2012-2013 |
01 |
| 003 |
22899208 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (UE1, Z75) (EXC BRS, HP2, UFT, U42) |
2012-2013 |
01 |
| 003 |
22899211 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, HP2, UE1, Z75) (EXC U42) |
2012-2013 |
01 |
| 003 |
22899211 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (HP2, UE1, UFT, Z75) (EXC BRS, U42) |
2012-2013 |
01 |
| 003 |
22899212 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, HP2, UE1, U42, Z75) (EXC T89, UFT, ULT) |
2012-2013 |
01 |
| 003 |
22899212 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (HP2, UE1, UFT, U42, Z75) (EXC T89, ULT) |
2012-2013 |
01 |
| 003 |
22899216 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (HP2, UE1, U42, Z75) (EXC BRS, T89, UFT) |
2012-2013 |
01 |
| 003 |
22899219 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (BRS, HP2, UE1, UFT, ULT, U42) |
2012-2013 |
01 |
| 003 |
22899222 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (T4Q, WHN, Z75) (EXC DNU, T89, UE1) |
2012-2013 |
01 |
| 003 |
22899222 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (ULT, WHN, Z75) (EXC DNU, T89, UE1) |
2012-2013 |
01 |
| 003 |
22899225 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (Z75) (EXC DNU, T4Q, T89, UE1, ULT, WHN) |
2012-2013 |
01 |
| 003 |
22899227 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (BRS, DNU, Z75) (EXC T4Q, UE1, UFT, ULT) |
2012-2013 |
01 |
| 003 |
22899227 |
HARNESS, I/P WRG (INCLS 5) |
CK1 (06) (DNU, UFT, Z75) (EXC T4Q, UE1, ULT) |
2012-2013 |
01 |
| 003 |
22899250 |
HARNESS, I/P WRG (INCLS 5) |
CK107 (06) (BRS, UE1, U42, Z75) (EXC HP2, T4Q, T89, UFT, ULT) |
2012-2013 |
01 |
| 003 |
22899250 |
HARNESS, I/P WRG (INCLS 5) |
CK107 (06) (UE1, UFT, U42, Z75) (EXC HP2, T4Q, T89, ULT) |
2012-2013 |
01 |
| 003 |
22899198 |
HARNESS, I/P WRG (INCLS 5) |
K107 (06) (T89, ULT, UL2, Z75) (EXC HP2) (EXPORT) |
2012-2013 |
01 |
| 003 |
22899200 |
HARNESS, I/P WRG (INCLS 5) |
K107 (06) (T89, ULT, Z75) (EXC HP2, ULT) (EXPORT) |
2012-2013 |
01 |
| 003 |
22899228 |
HARNESS, I/P WRG (INCLS 5) |
K1 (06) (HP2, T89, UL2, Z75) (EXPORT) |
2012-2013 |
01 |
| 003 |
22899247 |
HARNESS, I/P WRG (INCLS 5) |
K107 (06) (FCN, HP2, T89, UE1, U42, Z75) (EXC ULT) (EXPORT) |
2012-2013 |
01 |
| 004 |
|
RECEIVER, DIGITAL RDO (SEE GROUP 09.000 ANTENNA/DIGITAL AUDIO FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 006 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 007 |
|
MODULE, COMN INTERFACE (W/MOBILE TEL XCVR) (SEE GROUP 09.000 COMMUNICATION SYSTEM FOR DETAILED ILLUSTRATED VIEW) (2.480) |
|
2007-2013 |
|
| 008 |
12146933 |
COVER, I/P WRG HARN DATA LINK CONN |
K1 (06) (T89) (EXPORT) |
2013-2013 |
01 |
| 009 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (I/P WRG HARN DATA LINK CONN) (9.665) |
|
2007-2013 |
01 |
| 010 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (I/P WRG HARN GND) |
|
2007-2013 |
03 |
| 012 |
|
BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 BLOCK/ENGINE HARNESS JUNCTION FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
