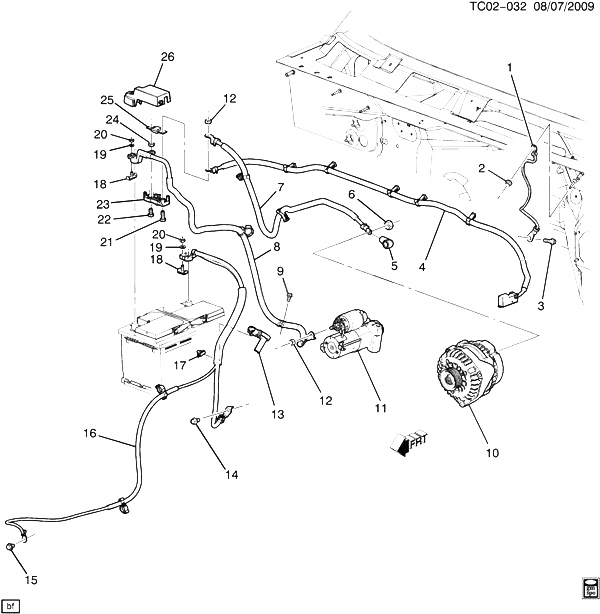

(TC02-032) 2010-2013 CK1,2(06-36) ПРОВОДА АККУМУЛЯТОРА (EXC HYBRID HP2, DUAL BATTERY 6A6, WIRING PROVISIONS 9L4) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
002 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (ENG GND STRP) 2010-2013 01
003 11609619 BOLT, HEX W/ FL WA-M10X1.5X16, 20 OD, 10.9 STL, GMW3200 FINISH (ENG GND STRP) 2010-2013 01
004 22850357 CABLE, BAT POS (ACDelco #22850357) CK1, 2, 3 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) 2010-2013 01
005 BOOT, WRG HARN TERM (PART OF 7) 2010-2013
006 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL) 2010-2013 01
007 20943125 CABLE, GEN BAT JPR (INCLS 5) (ACDelco #20943125) CK1, 2, 3 (LC8, LC9, LMG, L20, L9H, L94, KG3, KW1) 2013-2013 01
008 22790285 CABLE, STRTR SOL (INCLS 18-26) (ACDelco #22790285) CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) 2011-2013 01
009 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (BAT POS CBL CLIP) 2010-2013 01
010 GENERATOR, (SEE GROUP 02.000 GENERATOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) 2010-2013
011 STARTER, (SEE GROUP 02.000 STARTER MOTOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) 2010-2013
012 21021808 NUT, STRTR SOL CBL (M8X1.25X6, BRASS) CK1, 2, 3 2010-2013 02
013 13505369 SENSOR, BAT CUR (PART OF 16) CK1 2012-2013 01
014 11561048 BOLT, HEX W/FL WA-3/8-16X.625, .82 OD, GM275 STL, GMW3200 FINISH (ENG WRG HARN GND) 2010-2013 01
015 11588337 BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (FWD LP WRG HARN GND) 2010-2013 02
016 20967455 CABLE, BAT NEG (INCLS 13, 17-20) (ACDelco #20967455) CK1 (LC9, LMG, L20, L9H, L94) (EXC 9L4) 2010-2013 01
017 19116354 CLIP, BAT CBL (PART OF 16) CK1 (LC9, LMG, L20, L9H, L94) (EXC 9L4) 2011-2013 01
018 19116852 BOLT KIT, BAT CBL TERM (PART OF 8, 16) (INCLS 19, 20) CK1, 2, 3 2010-2013 01
019 WASHER, BAT CBL TERM (PART OF 8, 16, 18) 2010-2013
020 NUT, BAT CBL TERM (PART OF 8, 16, 18) 2010-2013
021 BOLT, BAT CBL TERM (PART OF 8) 2010-2013
022 BOLT, BAT CBL TERM (PART OF 8) 2010-2013
023 20929135 BLOCK, BAT POS CBL JUNC (PART OF 8) CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) 2011-2013 01
024 NUT, BAT CBL TERM (PART OF 8) 2010-2013
025 15305191 FUSE, 175 AMP MEGA (PART OF 8) ( FUSE COLOR, BLACK W/SIZE STAMPED IN WHITE ON CASE) 2010-2013 01
026 20929134 COVER, BAT POS CBL TERM (PART OF 8) CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, 5W4, 9L4) 2011-2013 01
026 25797040 COVER, BAT POS CBL TERM (PART OF 8) (TOP) CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, 5W4, 9L4) 2011-2013 01
026 25888958 COVER, BAT POS CBL TERM (BOTTOM) (PART OF 8) CK1 (LC9, LMG, LU3, L20, L9H, L94) (EXC PPV, TP2, 5W4, 9L4) 2011-2013 01
026 19116038 COVER, BAT POS CBL TERM (PART OF 8) CK107 (06) (K5T) 2013-2013 01
