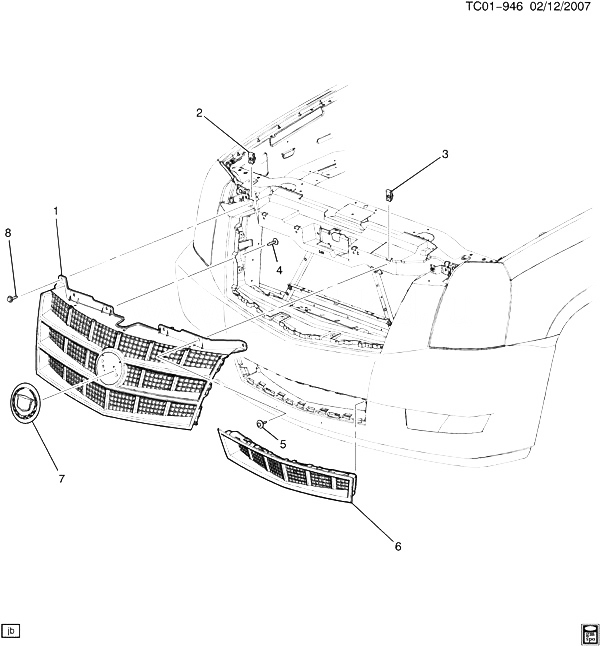

(TC01-946) 2012-2013 CK1(06) РЕШЕТКА РАДИАТОРА (CADILLAC Z75, SPECIAL EDITION WHN) CADILLAC - ESCALADE (AWD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22755367 GRILLE, FRT UPR (INCLS 4, 7) (WHITE) CK1 (06) (WHN, Z75, 98U) (EXC T84) 2012-2013 01
001 22755368 GRILLE, FRT UPR (INCLS 4, 7) (BLACK) CK1 (06) (WHN, Z75, 41U) (EXC T84) 2012-2013 01
001 22755371 GRILLE, FRT UPR (INCLS 4, 7) (CARBON FLASH) CK1 (06) (WHN, Z75, 58U) (EXC T84) 2012-2013 01
001 22755372 GRILLE, FRT UPR (INCLS 4, 7) (MAGNA STEEL) CK1 (06) (GHA, WHN, Z75) (EXC T84) 2012-2013 01
001 22755373 GRILLE, FRT UPR (INCLS 4, 7) (CLARET) CK1 (06) (WHN, Z75, 89U) (EXC T84) 2012-2013 01
001 22755374 GRILLE, FRT UPR (INCLS 4, 7) (SILVER) CK1 (06) (GAN, WHN, Z75) (EXC T84) 2012-2013 01
001 22865670 GRILLE, FRT UPR (INCLS 4, 7) (SILVER) CK1 (06) (GWT, WHN, Z75) (EXC T84) 2013-2013 01
001 22865676 GRILLE, FRT UPR (INCLS 4, 7) (PINO NOIR) CK1 (06) (GWU, WHN, Z75) (EXC T84) 2013-2013 01
001 22865677 GRILLE, FRT UPR (INCLS 4, 7) (BLUE) CK1 (06) (GXH, WHN, Z75) (EXC T84) 2013-2013 01
002 11515638 NUT, U-TYPE, M4.2X1.41X10.5.5X22, .65-3.8 PNL THK, 1050, ZF (FRT UPR GRL) 2012-2013 02
003 11518121 NUT, U, M6X1, MULTI THD, .5-4.0 THK PNL (FRT GRL UPR BRKT) 2012-2013 08
004 22549046 SCREW, M4.2X1.4X25, 11.1 O.D., 6010M, NZ (PART OF 1) 2012-2013 26
005 11589039 BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (FRT GRL SUPT REINF) 2012-2013 08
006 22755377 GRILLE, FRT LWR (WHITE) CK1 (06) (WHN, Z75, 98U) (EXC T84) 2012-2013 01
006 22755378 GRILLE, FRT LWR (BLACK) CK1 (06) (WHN, Z75, 41U) (EXC T84) 2012-2013 01
006 22755381 GRILLE, FRT LWR (CARBON) CK1 (06) (WHN, Z75, 58U) (EXC T84) 2012-2013 01
006 22755382 GRILLE, FRT LWR (MAGNA) CK1 (06) (GHA, WHN, Z75) (EXC T84) 2012-2013 01
006 22755383 GRILLE, FRT LWR (CLARET) CK1 (06) (WHN, Z75, 89U) (EXC T84) 2012-2013 01
006 22755384 GRILLE, FRT LWR (SILVER) CK1 (06) (GAN, WHN, Z75) (EXC T84) 2012-2013 01
007 22860589 EMBLEM, FRT GRL (PART OF 1) (MEDALLION) CK1 (06) (WHN, Z75) (EXC T84) 2012-2013 01
008 11589015 BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (FRT UPR GRL) 2012-2013 02
