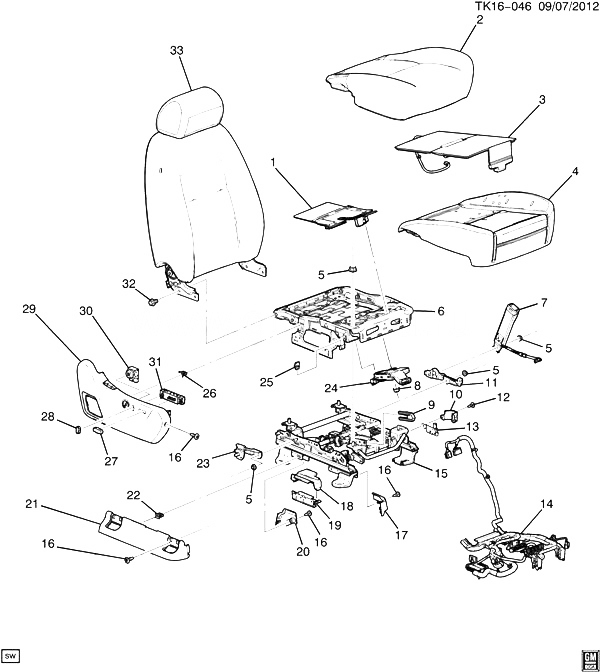

(TK16-046) 2012-2013 CK1,2(06-36) СИДЕНЬЕ ПАССАЖИРА/BUCKET-CUSHION (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE (AWD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 22863852 MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 4) CK1, 2, 3 (KB6) 2012-2013 01
002 25851690 COVER, P/SEAT CUSH (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2012-2013 01
002 22751128 COVER, P/SEAT CUSH (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2012-2013 01
002 22751129 COVER, P/SEAT CUSH (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
002 22784373 COVER, P/SEAT CUSH (EBONY) CK1 (06) (AN3, HNE, ULT, Z75, 195) 2012-2013 01
002 22751129 COVER, P/SEAT CUSH (CASHMERE) CK1 (06-36) (AL0, AN3, KB6, Z75, 394) 2012-2013 01
003 22868178 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 01
004 PAD, P/SEAT CUSH (PART OF 1) 2012-2013
005 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (P/SEAT ADJR TOP PLT) (ACDelco #11517996) 2012-2013 09
006 22781429 FRAME, P/SEAT CUSH CK1, 2, 3 2012-2013 01
007 19180588 BELT KIT, P/SEAT (BKL SI) (COCOA) CK1 (06) (AN3, Z75, 415) 2012-2013 01
007 19121543 BELT KIT, P/SEAT (BKL SI) (TITANIUM) CK1, 2 (06) (AN3, 83I) 2012-2013 01
007 19121541 BELT KIT, P/SEAT (BKL SI) (EBONY) (W/TENSIONER) CK1, 2 (06-36) (AN3, 19I) 2012-2013 01
007 19121542 BELT KIT, P/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (AL0, AN3, 33I, 39I) 2012-2013 01
008 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (AIRBAG P/SEAT SUPPRESSION) 2012-2013 AR
009 CAP, F/SEAT ADJR TRK END 2012-2013
010 20958089 COVER, AIRBAG P/SEAT POSN SEN CK1, 2 (06-36) 2012-2013 01
011 25916855 BRACKET, P/SEAT BELT (BKL SI) (I/B) CK1, 2, 3 2012-2013 01
012 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2012-2013 06
013 25954737 SENSOR, AIRBAG P/SEAT POSN CK1 (06-36) (AL0, AN3, Z75, 194, 394) 2012-2013 01
013 25954737 SENSOR, AIRBAG P/SEAT POSN CK1 (06) (AN3, Z75, 415) 2012-2013 01
014 22781385 HARNESS, P/SEAT ADJR WRG CK1, 2 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2012-2013 01
014 22781385 HARNESS, P/SEAT ADJR WRG CK1 (06) (AN3, HNE, ULT, Z75, 195, 415) 2012-2013 01
015 22756843 ADJUSTER, P/SEAT (POWER 6-WAY) CK1, 2, 3 (AN3) 2012-2013 01
016 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2012-2013 05
017 15243860 COVER, P/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2 (06-36) (83I) 2012-2013 01
017 25851776 COVER, P/SEAT INR ADJR TRK FRT FIN (COCOA) CK1 (06) (AN3, 41I) 2012-2013 01
017 15243858 COVER, P/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2012-2013 01
017 15243859 COVER, P/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
018 20970793 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (Z75) 2012-2013 01
019 15827135 BRACKET, P/SEAT FRT (FOR HD VEHICLES) CK1, 2, 3 2012-2013 01
020 15243869 COVER, P/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2012-2013 01
020 15243870 COVER, P/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (31I, 33I, 39I) 2012-2013 01
020 15243871 COVER, P/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2012-2013 01
020 25851777 COVER, P/SEAT OTR ADJR TRK RR FIN (COCOA) (INBOARD) CK1 (06) (AN3, 41I) (EXC AX4) 2012-2013 01
021 15232589 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2012-2013 01
021 15232590 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (CASHMERE) (OUTBOARD) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
021 15232591 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2012-2013 01
021 25851774 COVER, P/SEAT OTR ADJR TRK RR FIN (INCLS 22) (COCOA) (OUTBOARD) CK1 (06) (AN3, 41I) (EXC AX4) 2012-2013 01
022 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 21) 2012-2013 01
023 15845154 BRACKET, P/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 2012-2013 01
024 22868178 BLOWER, P/SEAT CUSH VENTILATION HEAT COOL CK1, 2 (06-36) (AL0, AN3, KB6) 2012-2013 01
025 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2012-2013 02
026 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 29) 2012-2013 03
027 KNOB, P/SEAT ADJR SW 2012-2013
028 15222985 KNOB, F/SEAT BK RECL (TITANIUM) (11.377) CK1, 2, 3 (83I) 2012-2013 02
028 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (39I) 2012-2013 02
028 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (33I) 2012-2013 02
028 15889098 KNOB, F/SEAT BK RECL (COCOA) (11.377) CK1 (06) (AN3, AYE, HNE, ULT, Z75, 415) 2012-2013 01
029 15232569 COVER, P/SEAT ADJR FIN (INCLS 26) (TITANIUM) (POWER) CK1, 2 (06-36) (AN3, 83I) 2012-2013 01
029 15882423 COVER, P/SEAT ADJR FIN (INCLS 26) (COCOA) (BELT UTILITY) CK1 (06) (41I) 2012-2013 01
029 25851773 COVER, P/SEAT ADJR FIN (INCLS 26) (COCOA) CK1 (06) (AN3, 41I) 2012-2013 01
029 15219924 COVER, P/SEAT ADJR FIN (INCLS 26) (CASHMERE) (BELT UTILITY) CK1, 2 (06-36) (33I, 39I) 2012-2013 01
029 15232567 COVER, P/SEAT ADJR FIN (INCLS 26) (EBONY) (POWER) CK1, 2 (06-36) (AN3, 19I) 2012-2013 01
029 15232568 COVER, P/SEAT ADJR FIN (INCLS 26) (CASHMERE) (POWER) CK1, 2 (06-36) (AN3, 33I, 39I) 2012-2013 01
029 15214532 COVER, P/SEAT ADJR FIN (INCLS 26) (TITANIUM) (BELT UTILITY) CK1, 2 (06-36) (83I) 2012-2013 01
029 15214530 COVER, P/SEAT ADJR FIN (INCLS 26) (EBONY) (OUTBOARD, BELT UTILITY) CK1, 2 (06-36) (X88, Z75, Z88, 19I) 2012-2013 01
030 25909573 SWITCH, P/SEAT LUMBAR CONT (COCOA) CK1, 2 (06-36) (41I) 2012-2013 01
030 25926719 SWITCH, P/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD FORWD ONLY) CK1 (19I, 312) 2012-2012 01
031 12451498 SWITCH, P/SEAT ADJR RECL (8-WAY) (11.558) CK1, 2, 3 2012-2013 01
032 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (P/SEAT RECL) 2012-2013 08
033 PAD, P/SEAT BK (SEE GROUP 16.000 PASSENGER SIDE/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) 2012-2013
