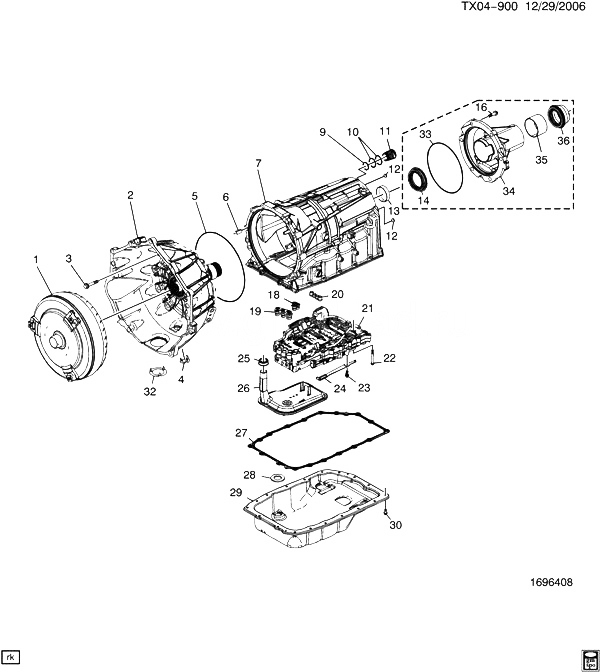

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
17804387 |
CONVERTER, TORQ (REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED) |
CK1 (MYC) |
2007-2013 |
01 |
| 002 |
|
HOUSING, T/CV (W/ FLUID PUMP) (SEE GROUP 04.000 TORQUE CONVERTOR HOUSING AND FLUID PUMP FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 003 |
24224574 |
BOLT, T/CV HSG (ACDelco #24224574) |
CK1 (MYC) |
2007-2013 |
09 |
| 004 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
CK1, 2, 3 (MW7, MYC, MYD, M30, M99) |
2009-2013 |
01 |
| 005 |
24224577 |
SEAL, A/TRNS FLUID PUMP (ACDelco #24224577) |
CK1 (MYC) |
2009-2013 |
01 |
| 006 |
90351710 |
PIN, T/CV HSG LOC (0.293) |
CK1 (MYC) |
2007-2013 |
01 |
| 007 |
24237785 |
CASE, A/TRNS (INCLS 12, 13) (ACDelco #24237785) |
K1 (MYC) |
2007-2013 |
01 |
| 009 |
|
SEAL, A/TRNS WRG CONN (*KIT2) |
|
2007-2013 |
|
| 010 |
|
SEAL, A/TRNS WRG CONN (O RING) (*KIT2) |
|
2007-2013 |
|
| 011 |
24239878 |
SLEEVE, A/TRNS ELEC CONN PASG (ACDelco #24239878) |
CK1 (MYC) |
2007-2013 |
01 |
| 012 |
|
PLUG, A/TRNS CASE (PART OF 7) |
|
2007-2013 |
|
| 013 |
|
BUSHING, OUTPUT SHF (PART OF 7) |
|
2007-2013 |
|
| 014 |
24238076 |
SEAL, OUTPUT SHF (ACDelco #24238076) |
K1 (MYC) |
2007-2013 |
01 |
| 016 |
11515768 |
BOLT, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (A/TRNS CASE EXTN) |
|
2007-2013 |
06 |
| 018 |
|
SEAL, A/TRNS FLUID PUMP (*KIT2) |
|
2007-2013 |
|
| 019 |
|
SEAL, A/TRNS FLUID PUMP (*KIT2) |
|
2007-2013 |
|
| 020 |
|
SEAL, CTR SUPT FLUID PASG (*KIT2) |
|
2007-2013 |
|
| 021 |
|
VALVE, CONT (W/BODY VLV) (SEE GROUP 04.000 CONTROL VALVE FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 022 |
24237181 |
BOLT, VLV BODY (M5 X 0.8 X 73.0) (ACDelco #24237181) |
CK1 (MYC) |
2008-2013 |
06 |
| 023 |
24231074 |
BOLT, MAN SHFT DTNT (M10X1X14.5) |
CK1 (MYC) |
2007-2013 |
01 |
| 024 |
24222646 |
DETENT, MAN SHFT (W/8MM DIA. ROLLER) (ACDelco #24222646) |
CK1 (MYC) |
2007-2013 |
01 |
| 025 |
|
SEAL, A/TRNS FLUID FLTR (PART OF 26) |
|
2007-2013 |
|
| 026 |
24236933 |
FILTER KIT, A/TRNS FLUID (INCLS 25) (ACDelco #24236933) |
CK1 (MYC) |
2007-2013 |
01 |
| 027 |
24224781 |
GASKET, A/TRNS FLUID PAN (ACDelco #24224781) |
CK1 (MYC) |
2007-2013 |
01 |
| 028 |
29535617 |
MAGNET, A/TRNS FLUID PAN (4.105) (ACDelco #29535617) |
CK1 (MYC) |
2007-2013 |
01 |
| 029 |
24222657 |
PAN, A/TRNS FLUID (W/ OUT PLUG AND INTERNAL FLUID LEVEL STANDPIPE) (ACDelco #24222657) |
CK1 (MYC) |
2007-2013 |
01 |
| 030 |
11569816 |
BOLT, HFH, M6X1X19, 11.5 THD, 14.2 OD, 8.8 STL, GMW3359-BLACK, MAT POINT (A/TRNS FLUID PAN) |
|
2007-2013 |
18 |
| 032 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900) |
CK1 (MYC) |
2007-2013 |
01 |
| 033 |
24224675 |
SEAL, A/TRNS CASE EXTN (*KIT1) (ACDelco #24224675) |
CK1 (MYC) |
2007-2013 |
01 |
| 034 |
|
EXTENSION, A/TRNS CASE (INCLS 35, 36) |
K |
2007-2013 |
|
| 035 |
|
BUSHING, PROP SHF FRT SLIP YOKE (PART OF 34) |
|
2007-2013 |
|
| K01 |
24260145 |
SEAL KIT, A/TRNS SERV (INCLS 33, 36) (ACDelco #24260145) |
CK1 (MYC) |
2010-2013 |
01 |
| K02 |
24236927 |
SEAL KIT, A/TRNS SERV (INCLS 9, 10, 18-20) (CNTRL SOL VLV ASM) (ACDelco #24236927) |
CK1 (MYC) |
2007-2013 |
01 |
| K03 |
|
BOLT KIT, C/VLV BODY (INCLS 22) |
K |
2008-2013 |
|
