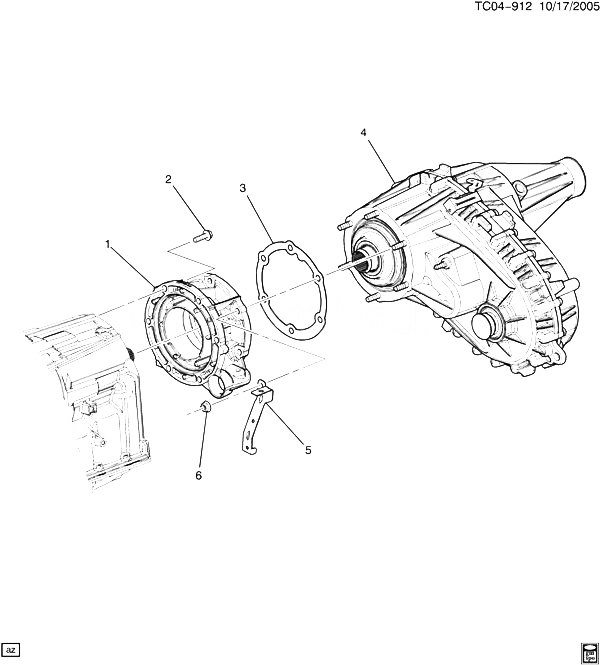

(TC04-912) 2007-2013 K1(06-36-43) РАЗДАТОЧНАЯ КОРОБКА ADAPTER (6L80 AUTOMATIC MYC) CADILLAC - ESCALADE (AWD) 2012
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 24241166 | ADAPTER, TRFER CASE | K1 (MYC) | 2008-2013 | 01 |
| 002 | 11515767 | BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (TRFER CASE ADAP) (T/W 12345493) | 2007-2013 | 06 | |
| 003 | 24245110 | GASKET, TRFER CASE ADAP | K1 | 2011-2013 | 01 |
| 004 | 24246762 | CASE, TRFER (W/GEARS) | K1 (MYC, NR3) | 2010-2013 | 01 |
| 005 | 15124945 | BRACKET, FUEL FEED RTN FRT HOSE | K1 (MYC) | 2011-2013 | 01 |
| 006 | 15709703 | NUT, HEX 10X1.5THD, 21.8 OD SS (TRFER CASE) | 2007-2013 | 01 |
