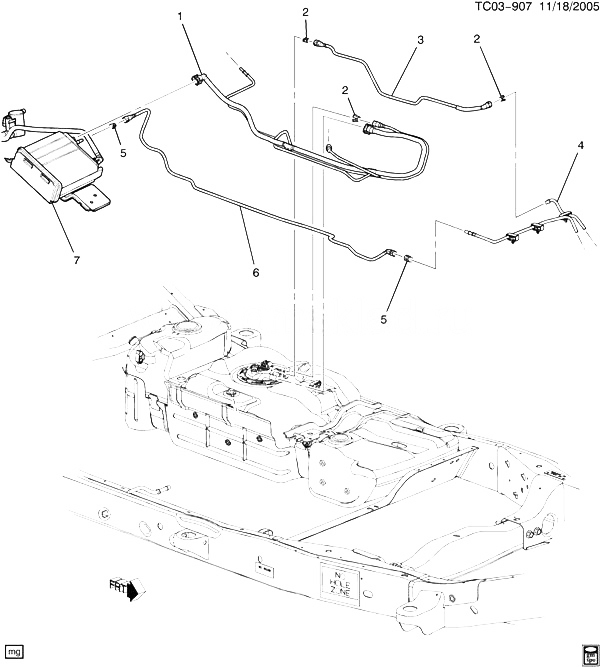

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25914594 |
HOSE, EVAP EMIS CNSTR PURGE (INCLS 2, 6) |
CK107 (06) (LMG, L20, L94) |
2010-2013 |
01 |
| 002 |
12522917 |
CONNECTOR KIT, FUEL FEED PIPE (PART OF 1, 3) (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) (3.162) |
CK1, 2, 3 |
2007-2013 |
01 |
| 003 |
24100438 |
HOSE, FUEL FEED (INCLS 2) (TO TANK) |
CK107 (06) (LC9, LMG, L94) |
2010-2013 |
01 |
| 004 |
|
HOSE, FUEL FEED EVAP EMIS RTN (SEE GROUP 03.000 FUEL SUPPLY SYSTEM-FRONT FOR DETAILED ILLUSTRATED VIEW) (TO TANK) |
|
2007-2013 |
|
| 005 |
12522917 |
CONNECTOR KIT, FUEL FEED PIPE (PART OF 6) (GREEN) (INCLS INST SHT RET) (USE WITH 3/8 TUBE, NYLON) (3.162) |
CK1, 2, 3 |
2007-2013 |
01 |
| 006 |
|
HOSE, EVAP EMIS CNSTR PURGE (PART OF 1) (INCLS 5) |
|
2010-2013 |
|
| 007 |
|
CANISTER, EVAP EMIS (SEE GROUP 03.000 VAPOR CANISTER RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
