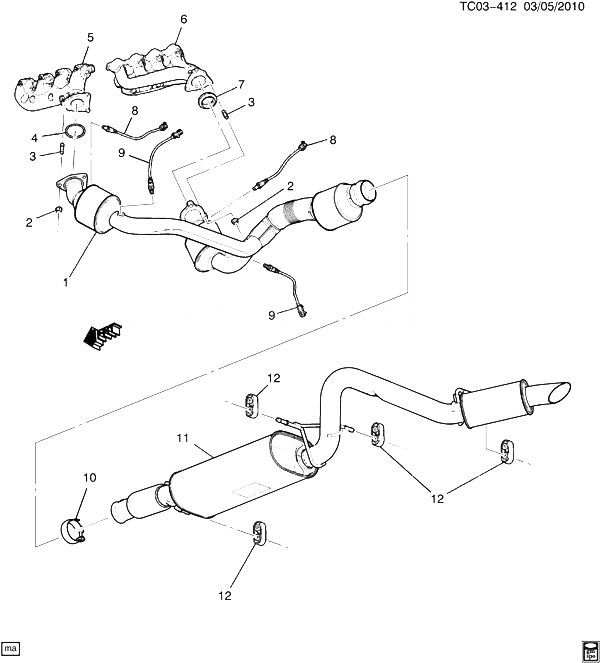

(TC03-412) 2012-2013 CK1(06-36) ВЫПУСКНАЯ СИСТЕМА-V8 (L94/6.2F, CADILLAC Z75, EXC DUAL TAILPIPE MWN) CADILLAC - ESCALADE (AWD) 2012

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15896591 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) CK1 (L9H, L94, NT7) 2011-2013 01
001 15896591 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) CK1 (L9H, L94, NT7) 2011-2013 01
001 15905949 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) (3.685) CK1 (L9H, L94, NE9, NU5) 2012-2012 01
001 15905949 CONVERTER, 3WAY CTLTC (W/EXH MANIF PIPE) CK1 (L9H, L94, NE9, NU5) 2012-2012 01
002 15032594 NUT, EXH MANIF PIPE (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) CK1, 2, 3 (LC9, LMG, LU3, LZ1, L20, L9H, L94) 2011-2013 06
003 11589264 STUD, STRAIGHT, M10X1.5X30, M10X1.5X16, 57 TL, SS (EXH MANIF PIPE) 2011-2013 06
004 15077362 SEAL, EXH MANIF PIPE CK1 2011-2013 01
005 MANIFOLD, EXH (SEE GROUP 03.000 ENGINE ASM-MANIFOLD FUEL RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (INCLS SHIELD, BOLTS) 2011-2013
006 MANIFOLD, EXH (SEE GROUP 03.000 ENGINE ASM-MANIFOLD FUEL RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (INCLS SHIELD, BOLTS) 2011-2013
007 15035747 SEAL, EXH MANIF PIPE CK1 (LC9, LMG, LU3, LZ1, L20, L9H, L94) 2011-2013 01
008 12583804 SENSOR, HTD OXY (POSN 2) (MALE END) (TAKES FEMALE CONNECTOR) (ACDelco #213-3866) CK1, 2 (06-36) (LC9, LMG, LZ1, L9H, L94, L96) 2011-2013 02
009 12609457 SENSOR, HTD OXY (POSN 3) (MATING CONN W/LEADS USE 15306319) (ACDelco #213-4229) CK1, 2, 3 (LC9, LFT, LMG, LZ1, L20, L9H, L94) 2011-2013 02
010 20779890 CLAMP, EXH PIPE (PART OF 11) CK107 (06) (L9H, L94) 2011-2013 01
011 15896609 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10) CK107 (06) (L94, XA1) 2011-2013 01
011 15896609 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10) (3.701) CK107 (06) (L94, XA1) 2011-2013 01
011 15896609 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10) (3.701) CK107 (06) (L94, XA1) 2011-2013 01
011 22812178 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10) CK107 (06) (L94) (EXC XA1) 2011-2013 01
011 22812178 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10) (3.701) CK107 (06) (L94) (EXC XA1) 2011-2013 01
011 22812178 MUFFLER, EXH (W/RESO, EXH TAIL PIPE) (INCLS 10) (3.701) CK107 (06) (L94) (EXC XA1) 2011-2013 01
012 15092802 INSULATOR, EXH MUFF HNGR CK1, 2, 3 2011-2013 AR
