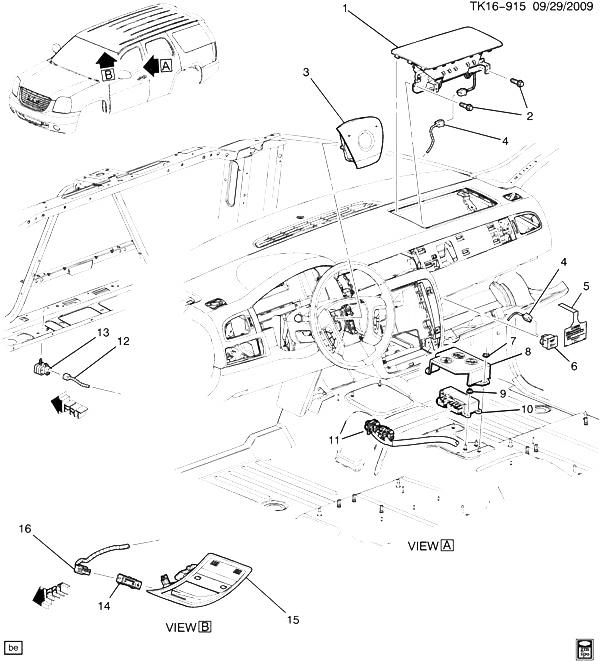

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20919203 |
AIRBAG, I/P (COCOA) (DUAL LEVEL) |
CK1 (41I) |
2011-2013 |
01 |
| 001 |
22744316 |
AIRBAG, I/P (EBONY) (DUAL LEVEL) |
CK1, 2 (06) (19I) |
2011-2011 |
01 |
| 001 |
22744317 |
AIRBAG, I/P (CASHMERE) (DUAL LEVEL) |
CK1 (33I) |
2011-2013 |
01 |
| 001 |
22744319 |
AIRBAG, I/P (COCOA) (DUAL LEVEL) |
CK1 (06-36) (39I) |
2011-2013 |
01 |
| 001 |
22744318 |
AIRBAG, I/P (TITANIUM) (DUAL LEVEL) |
CK1 (06-36) (83I, 88I) |
2011-2013 |
01 |
| 002 |
11588337 |
BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (I/P AIRBAG) |
|
2010-2013 |
04 |
| 003 |
20928230 |
AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) |
CK1 (06) (ULT, Y91, Z75, 41I) |
2011-2012 |
01 |
| 003 |
20928246 |
AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) |
CK1 (06-36) (Y91, Z75, 19I) |
2011-2012 |
01 |
| 003 |
20928247 |
AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) |
CK1 (06-36) (Y91, Z75, 39I) |
2011-2012 |
01 |
| 004 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 005 |
21996989 |
TAG, I/P AIRBAG WRNG (HANGING) |
CK1, 2 (AL0) |
2010-2013 |
01 |
| 007 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIRBAG SEN DIAGN MDL CVR) |
|
2010-2013 |
03 |
| 008 |
25898069 |
COVER, AIRBAG SEN DIAGN |
CK1, 2 (06-36) (9S1, 9U3) (EXC M1F) |
2010-2013 |
01 |
| 008 |
25898069 |
COVER, AIRBAG SEN DIAGN |
CK1, 2 (06-36) (9N5) (EXC M1F) |
2010-2013 |
01 |
| 009 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (AIRBAG SEN DIAGN MDL CVR) |
|
2010-2013 |
03 |
| 010 |
13578408 |
MODULE, AIRBAG SEN DIAGN |
CK1, 2, 3 (ASF) |
2011-2011 |
01 |
| 011 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 012 |
|
HARNESS, FWD LP WRG (SEE GROUP 02.000 WIRING HARNESS/FRONT LAMP FOR DETAILED ILLUSTRATED VIEW) (HAS ADDITIONAL CIRCUIT IN UBEC CONN) |
|
2010-2013 |
|
| 013 |
13502744 |
SENSOR, AIRBAG F/END DISCRM (MT ON FRT RAD SUPT) |
CK1 |
2010-2013 |
02 |
| 014 |
25828898 |
DISPLAY, I/P AIRBAG ARMING STATUS (W/WORDS ON AND OFF FOR AIRBAG) |
CK1, 2, 3 (EXC UC2, U19) |
2010-2013 |
01 |
| 014 |
25828899 |
DISPLAY, I/P AIRBAG ARMING STATUS (W/AIRBAG SYMBOLS FOR ON AND OFF) |
CK1, 2, 3 (UC2, U19) (EXPORT) |
2010-2013 |
01 |
| 015 |
|
CONSOLE, RF (SEE GROUP 16.000 ROOF CONSOLE FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 016 |
|
HARNESS, CONSOLE JUMPER (SEE GROUP 16.000 ROOF CONSOLE FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
