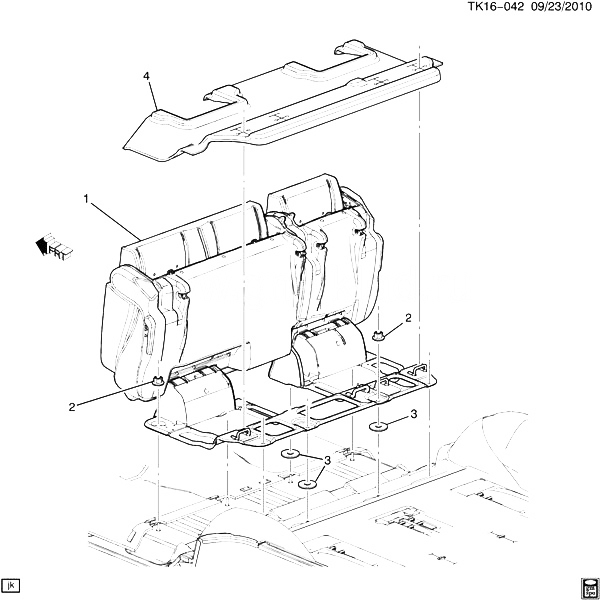

(TK16-042) 2011-2013 CK107(06) КРЕПЛЕНИЕ ЗАДНЕГО СИДЕНЬЯ (60/40 BENCH AM8, EXC HYBRID HP2) CADILLAC - ESCALADE (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, RR (SEE GROUP 16.000 REAR SEAT/BENCH FOR DETAILED ILLUSTRATED VIEW) 2010-2013
002 03537772 NUT, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2010-2013 08
003 11562546 WASHER, FLAT, 14X42.5X3.61 MM, SAE 1050 STL RC 37-43, 7112M (R/SEAT) 2010-2013 03
004 CARPET, R/FLR PNL CTR (SEE GROUP 16.000 FLOOR COVERING RELATED PARTS FOR DETAILED ILLUSTRATED VIEW) (EBONY) 2010-2013
