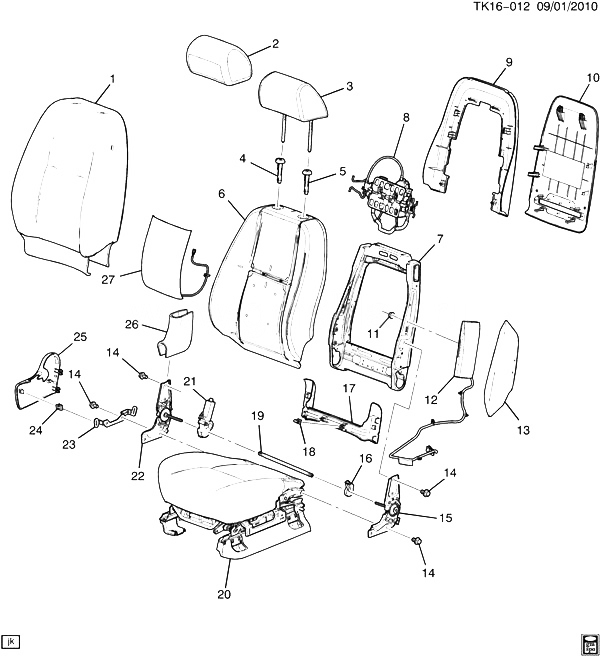

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20772419 |
COVER, D/SEAT BK (EBONY) |
CK1, 2 (06-36) (AL0, AN3, 193) (EXC KB6) |
2010-2013 |
01 |
| 001 |
20987367 |
COVER, D/SEAT BK (CASHMERE) |
CK1, 2 (06-36) (AG2, AL0, AN3, 333) (EXC HP2) |
2010-2013 |
01 |
| 002 |
|
COVER, D/SEAT H/RST (PART OF 3) |
|
2010-2013 |
|
| 003 |
20998443 |
RESTRAINT, D/SEAT HD (INCLS 2) (TITANIUM) |
CK1, 2, 3 (AN3, 833, 836) |
2011-2013 |
01 |
| 004 |
20912675 |
GUIDE, F/SEAT H/RST (CASHMERE) (W/BUTTON) |
CK1, 2, 3 (33I, 39I) |
2010-2013 |
02 |
| 004 |
15279347 |
GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) |
CK1, 2, 3 (19I) |
2010-2013 |
01 |
| 004 |
20912676 |
GUIDE, F/SEAT H/RST (TITANIUM) (W/BUTTON) |
CK1, 2 (06-36) (83I) |
2010-2013 |
02 |
| 005 |
20912679 |
GUIDE, P/SEAT H/RST (EBONY) (W/O BUTTON) |
CK1, 2 (06-36) (19I) |
2010-2013 |
01 |
| 005 |
20912680 |
GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
02 |
| 005 |
15279353 |
GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) |
CK1, 2 (06-36) (83I) |
2010-2013 |
02 |
| 009 |
20823362 |
BEZEL, F/SEAT BK OPG RR |
CK1, 2, 3 |
2010-2013 |
01 |
| 010 |
20926208 |
PANEL, D/SEAT BK FIN (CASHMERE) (WHEN REPL.TRIM WRAP PANELS REPLACE BOTH DR PASS PANELS) |
CK1, 2 (06-36) (AL0, AN3, 333) |
2011-2013 |
01 |
| 010 |
20926207 |
PANEL, D/SEAT BK FIN (EBONY) (W/MAP POCKET) (W/O VENT HOLE) |
CK1, 2 (06-36) (AN3, 193) (EXC KB6) |
2010-2013 |
01 |
| 011 |
11516075 |
NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (F/SEAT) |
|
2010-2013 |
07 |
| 012 |
20997499 |
AIRBAG, D/SEAT SI |
CK1, 2, 3 |
2010-2011 |
01 |
| 013 |
20824892 |
GUIDE, D/SEAT SI AIRBAG |
CK1, 2, 3 |
2010-2013 |
01 |
| 014 |
11515764 |
BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) |
|
2010-2013 |
08 |
| 015 |
|
RECLINER, D/SEAT OTR (PART OF 7) |
|
2010-2013 |
|
| 016 |
|
SENSOR, D/SEAT RECL POSN (PART OF 7) |
|
2010-2013 |
|
| 017 |
15827131 |
COVER, F/SEAT RSR FIN (INCLS 18) (TITANIUM) (RIGHT LEFT TOE KICK) |
CK1, 2, 3 (83I) |
2010-2013 |
02 |
| 017 |
15827129 |
COVER, F/SEAT RSR FIN (INCLS 18) (EBONY) (RIGHT LEFT TOE KICK) |
CK1, 2, 3 (19I, 88I) |
2010-2013 |
02 |
| 017 |
15827130 |
COVER, F/SEAT RSR FIN (INCLS 18) (CASHMERE) (RIGHT LEFT TOE KICK) |
CK1, 2, 3 (33I, 39I) |
2010-2013 |
02 |
| 018 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 17) |
|
2010-2013 |
04 |
| 019 |
|
RECLINER, D/SEAT (PART OF 7) |
|
2010-2013 |
|
| 020 |
|
PAD, D/SEAT CUSH (SEE GROUP 16.000 DRIVER SEAT/BUCKET-CUSHION FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 021 |
|
MOTOR, D/SEAT RECL ACTR (PART OF 7) |
|
2010-2013 |
|
| 022 |
|
RECLINER, D/SEAT INR (PART OF 7) |
|
2010-2013 |
|
| 023 |
25934810 |
BRACKET, D/SEAT RECL (I/B) |
CK1, 2, 3 |
2010-2013 |
01 |
| 024 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 25) |
|
2010-2013 |
02 |
| 025 |
15243824 |
COVER, D/SEAT INR RECL FIN (INCLS 24) (CASHMERE) (INBOARD) |
CK1, 2 (06-36) (33I, 39I) |
2010-2013 |
01 |
| 025 |
15243825 |
COVER, D/SEAT INR RECL FIN (INCLS 24) (TITANIUM) (INBOARD) |
CK1, 2 (06-36) (83I) |
2010-2013 |
01 |
| 025 |
15243823 |
COVER, D/SEAT INR RECL FIN (INCLS 24) (EBONY) (INBOARD) |
CK1, 2 (06-36) (19I) |
2011-2013 |
01 |
| 026 |
15855909 |
PROTECTOR, D/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% LH) |
CK1, 2, 3 |
2010-2013 |
02 |
| 026 |
15855911 |
PROTECTOR, D/SEAT RECL FIN CVR (EBONY) (RECL CVR CARPET BOOT 40% RH) |
CK1, 2, 3 |
2010-2013 |
02 |
| 027 |
25911156 |
HEATER, D/SEAT BK (HEAT ONLY) |
CK1, 2, 3 (AN3) |
2010-2013 |
01 |
