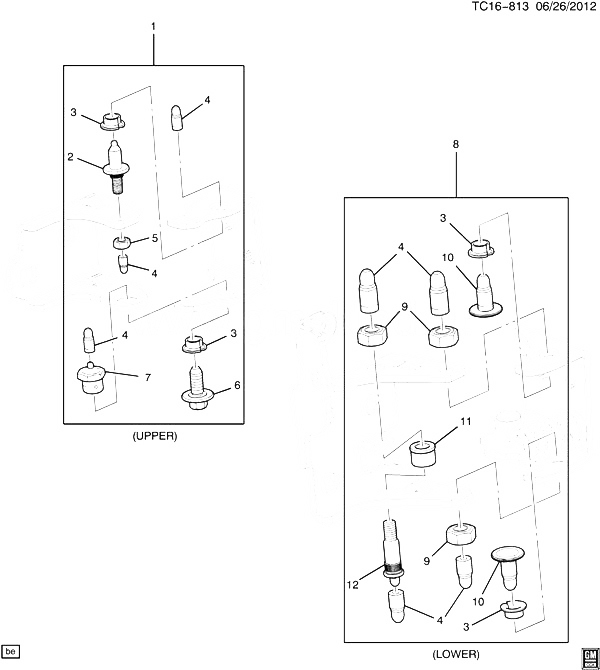

(TC16-813) 2007-2013 CK DOOR HARDWARE-PIN KITS CADILLAC - ESCALADE (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19260061 PIN KIT, FRT S/D HGE (INCLS UPR/LWR PINS, BUSHINGS, WASHER, DUST CAPS, NUTS, BOLT INST SHEET, (GREASEABLE) (INCLS 2-7) CK1, 2 (06) 2007-2013 02
001 19260061 PIN KIT, RR S/D HGE (INCLS UPR/LWR PINS, BUSHINGS, WASHER, DUST CAPS, NUTS, BOLT INST SHEET, (GREASEABLE) (INCLS 2-7) CK1, 2 (06) 2007-2013 02
002 PIN, FRT S/D HGE (PART OF 1) 2007-2013
003 BUSHING, FRT S/D HGE PIN (PART OF 1, 8) 2007-2013
004 CAP, FRT S/D HGE PIN (PART OF 1, 8) 2007-2013
005 NUT, FRT S/D HGE (PART OF 1) 2007-2013
006 BOLT, FRT S/D HGE (PART OF 1) 2007-2013
007 NUT, FRT S/D HGE (PART OF 1) 2007-2013
008 19260063 PIN KIT, FRT S/D HGE (INCLS CHECK PIN, ROLLLER PIN, ROLLER, BUSHINGS, DUST CAPS, NUTS INST SHEET (GREASEABLE) (INCLS 3, 4, 9-12) CK1, 2 (06) 2007-2013 02
008 19260063 PIN KIT, RR S/D HGE (INCLS CHECK PIN, ROLLLER PIN, ROLLER, BUSHINGS, DUST CAPS, NUTS INST SHEET (GREASEABLE) (INCLS 3, 4, 9-12) CK1, 2 (06) 2007-2013 02
009 NUT, FRT S/D HGE (PART OF 8) 2007-2013
010 PIN, FRT S/D HGE (PART OF 8) 2007-2013
011 ROLLER, FRT S/D HGE (PART OF 8) 2007-2013
012 PIN, FRT S/D HGE (PART OF 8) 2007-2013
