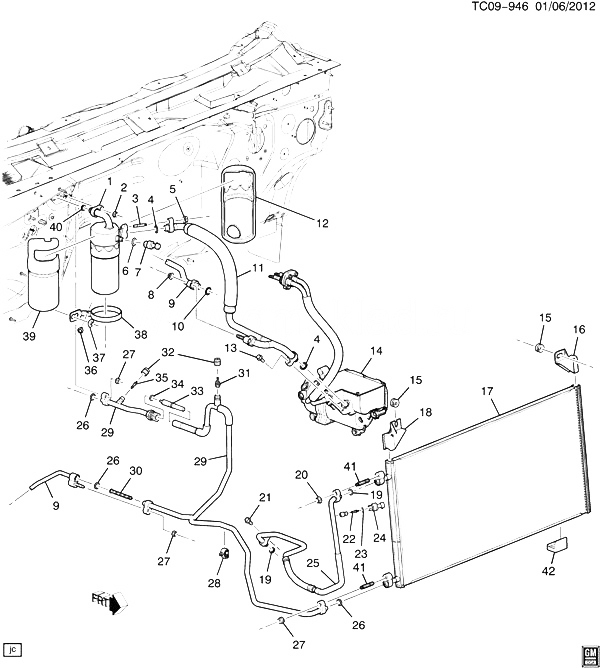

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM RET) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| 004 |
02724966 |
SEAL, A/C ACCUM FRT HOSE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 11) (ACDelco #15-31101) |
CK1, 2, 3 |
2008-2013 |
02 |
| 005 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C ACCUM FRT HOSE) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| 008 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| 009 |
|
HOSE, AUX A/C EVPR AUX HTR (SEE GROUP 09.000 A/C REFRIGERATION SYSTEM/REAR FOR DETAILED ILLUSTRATED VIEW) (INCLS 10) (8.846) |
|
2008-2013 |
|
| 010 |
52474373 |
SEAL, A/C CMPR CNDSR HOSE (PART OF 9) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
CK1, 2, 3 |
2010-2013 |
AR |
| 013 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C ACCUM HOSE) (ACDelco #11570082) |
|
2008-2013 |
01 |
| 014 |
|
COMPRESSOR KIT, A/C (SEE GROUP 09.000 A/C COMPRESSOR MOUNTING FOR DETAILED ILLUSTRATED VIEW) |
|
2008-2013 |
|
| 015 |
52476687 |
INSULATOR, A/C CNDSR (PART OF 16-18) (UPPER) (6.602) |
CK1, 2, 3 |
2008-2013 |
04 |
| 016 |
52482008 |
BRACKET, A/C CNDSR UPR (PART OF 17) (INCLS 15) (77.0MM LONG) (RETURN SIDE) (9.242) |
CK1, 2, 3 |
2008-2013 |
01 |
| 018 |
52482006 |
BRACKET, A/C CNDSR UPR (PART OF 17) (INCLS 15) (77.0MM LONG) (9.242) |
CK1, 2, 3 |
2008-2013 |
01 |
| 019 |
52474373 |
SEAL, A/C CMPR CNDSR HOSE (PART OF 25) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
CK1, 2, 3 |
2010-2013 |
AR |
| 020 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C CNDSR HOSE) (8.915) (ACDelco #11514596) |
|
2008-2013 |
01 |
| 021 |
11570082 |
BOLT, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (A/C CNDSR HOSE) (ACDelco #11570082) |
|
2008-2013 |
01 |
| 024 |
22678731 |
SENSOR, A/C REFRIG PRESS (INCLS 22) (PART OF 25) (HIGH PRESSURE) (ALUMINUM W/O COATING) (ACDelco #15-50147) |
CK1, 2, 3 |
2008-2013 |
01 |
| 026 |
52474373 |
SEAL, A/C EVPR TUBE (PART OF 29) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) |
CK1, 2 (CJ2, CJ3, C36, C69) |
2008-2013 |
AR |
| 027 |
11514596 |
NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (AUX A/C EVPR TUBE) (8.915) (ACDelco #11514596) |
|
2008-2013 |
03 |
| 028 |
15734255 |
CLIP, A/C EVPR TUBE (PART OF 29) (HOLD ONE 12.6 DIAM PIPE, W/ PUSHIN RETAINER) |
CK1, 2, 3 |
2008-2013 |
01 |
| 032 |
20911239 |
CAP, A/C REFRIG SERV VLV (PART OF 29) (M8X1.0) (SHORT THREADED, TETHERED CAP) (ACDelco #15-34400) |
CK1, 2, 3 (CJ2, CJ3, C67) |
2010-2013 |
01 |
| 032 |
20911240 |
CAP, A/C REFRIG SERV VLV (PART OF 29) (M10X0.75) (LONG THREADED, TETHERED CAP) (ACDelco #15-34401) |
CK1, 2, 3 (CJ2, CJ3, C67, HP2) |
2010-2013 |
01 |
| 033 |
19259601 |
ORIFICE, A/C CNDSR (PART OF 29) (ACDelco #15-33410) |
CK1, 2, 3 |
2011-2013 |
01 |
| 036 |
11514623 |
BOLT, HEX W/CON WA, M6X1X20 (PART OF 1, 38) |
|
2008-2013 |
01 |
| 037 |
11588331 |
NUT, HEX HD W/CON WA, M6X1, 5.7THK, 25 O.D., 9, GM6138M (A/C ACCUM BRKT) |
|
2008-2013 |
01 |
| 040 |
02724966 |
SEAL, A/C ACCUM FRT TUBE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 1) (9.222) (ACDelco #15-31101) |
CK1, 2, 3 |
2008-2011 |
01 |
| 041 |
11561065 |
STUD, A/C CNDSR (PART OF 17) (STRAIGHT M8X1.25X13.5, M8X1.25X27) |
CK1, 2, 3 |
2008-2013 |
02 |
| 042 |
15044225 |
INSULATOR, A/C CNDSR (LOWER) (ACDelco #15-63283) |
CK1, 2, 3 |
2008-2013 |
02 |
