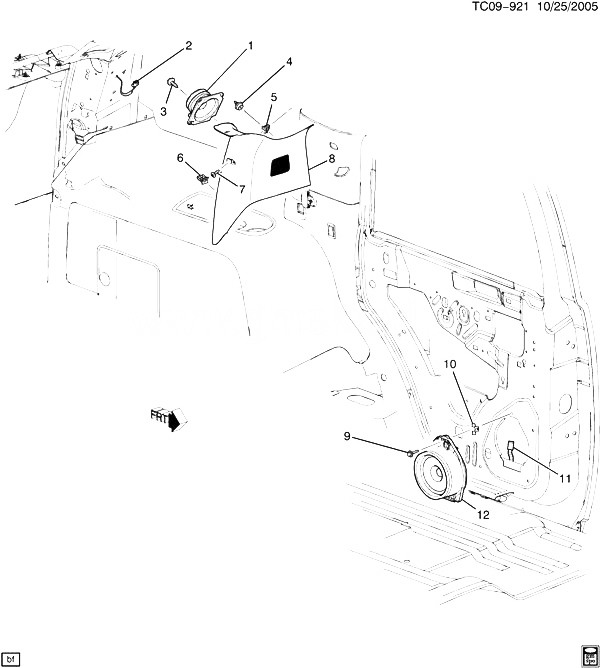

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15186672 |
SPEAKER, RDO BODY RR COR UPR GARN MLDG (ACDelco #15186672) |
CK1 (06) (UQA, UQS, Y91) |
2007-2013 |
02 |
| 002 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 003 |
11509253 |
SCREW, W/LRG WA HD, M4.2X1.4X10, 11.3 O.D., BHL PT, STL, NO (PART OF 8) |
|
2007-2013 |
01 |
| 004 |
11561654 |
RETAINER, CTR PLR UPR G/MLDG (PART OF 8) (PLAIN) (BIRDS BEAK SINGLE) (FITS 8.5 DIA HOLE) (12.800) |
CK1 (Z75) |
2007-2013 |
04 |
| 005 |
11609651 |
RETAINER, BODY RR COR G/MLDG (PART OF 8) (METAL PUSH-IN NUT, M4.2X1.41, 21.8X15X20.5) (14.731) |
CK1, 2 (06) |
2007-2013 |
01 |
| 006 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 8) |
|
2007-2013 |
02 |
| 007 |
11609539 |
SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (PART OF 8) |
|
2007-2013 |
01 |
| 008 |
|
MOLDING, BODY RR COR UPR GARN (INCLS 3-7) (SEE GROUP 16.000 BODY INTERIOR/TRIM FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO RR S/D SPKR) (9.665) |
|
2007-2013 |
02 |
| 010 |
11570654 |
NUT, RDO RR S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
CK1, 2, 3 (UQA, UQS, UQ3) |
2007-2013 |
02 |
| 011 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 02.000 WIRING HARNESS FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 012 |
15186669 |
SPEAKER, RDO RR S/D (ACDelco #15186669) |
CK1, 2 (06-36) (UQA, UQS) |
2007-2013 |
02 |
| 012 |
15201406 |
SPEAKER, RDO RR S/D ( MATING CONN W/LEADS USE 12101825) (ACDelco #15201406) |
CK1, 2 (06-36) (UQ3) |
2007-2013 |
02 |
