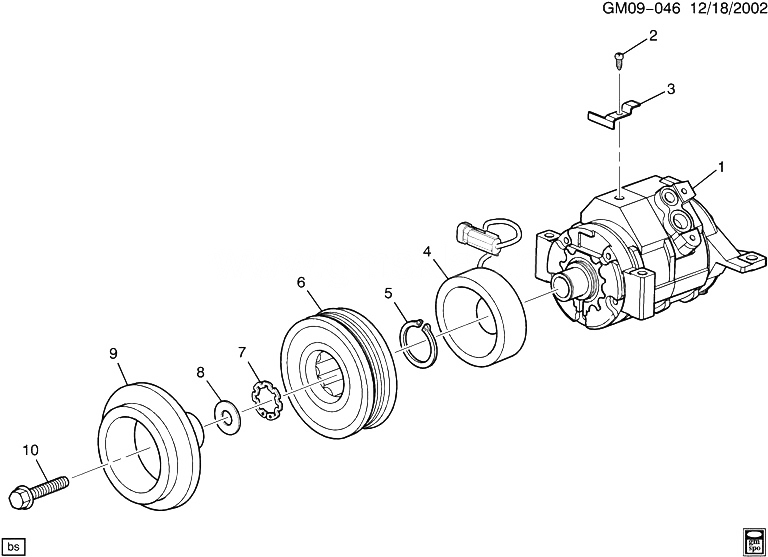

(GM09-046) 2010-2011 CK1 КОМПРЕССОР КОНДИЦИОНЕРА В СБОРЕ (L20/4.8A,LMG/5.3-0,LC9/5.3-3,L94/6.2F) CADILLAC - ESCALADE (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
002 BOLT, A/C CMPR BR (PART OF 1) (*KIT1) 2011-2012
003 BRACKET, A/C CMPR (PART OF 1) (*KIT1) 2010-2011
003 BRACKET, A/C CMPR (PART OF 1) (*KIT1) 2011-2012
004 COIL, A/C CLU (PART OF 1) (*KIT1) 2010-2011
004 COIL, A/C CLU (PART OF 1) (*KIT1) 2011-2012
005 RING, A/C CLU COIL RET (PART OF 1) (*KIT1) 2010-2011
005 RING, A/C CLU COIL RET (PART OF 1) (*KIT1) 2011-2012
006 BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) 2010-2011
006 BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) 2011-2012
007 RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) 2010-2011
007 RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) 2011-2012
008 WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) 2010-2011
008 WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) 2011-2012
009 CLUTCH, A/C (PART OF 1) (*KIT1) 2010-2011
009 CLUTCH, A/C (PART OF 1) (*KIT1) 2011-2012
010 11561365 BOLT, A/C CMPR PUL (PART OF 1) (*KIT1) CK1, 2, 3 2007-2013 01
K01 20906283 CLUTCH KIT, A/C (4 SPLINED, DENSO) (INCLS 2-10) (ACDelco #15-4709) CK1, 2 (06) (CJ2, CJ3, C69) (EXC HP2) 2010-2013 01
001 25940200 COMPRESSOR KIT, A/C (INCLS 2-10) (ACDelco #15-22232) CK1, 2 (06) (CJ2, CJ3, C69) (EXC HP2) 2010-2013 01
002 BOLT, A/C CMPR BR (PART OF 1) (*KIT1) 2010-2011
