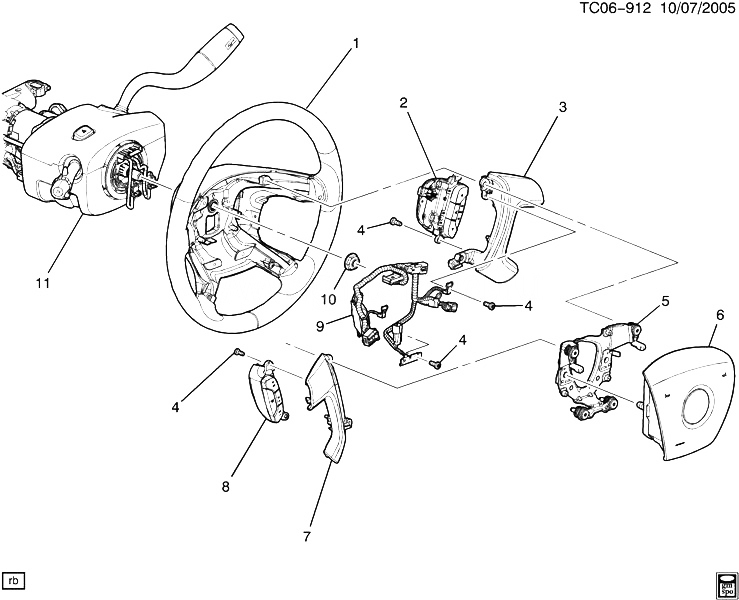

(TC06-912) 2007-2012 CK1 РУЛЕВОЕ КОЛЕСО (WOOD TRIM N30, HEATED KA9) CADILLAC - ESCALADE (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25853076 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) CK1 (KA9, K34, N30, UK3, Z75, 19I) (EXC HP2) 2009-2011 01
001 25853077 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 39I) (EXC HP2) 2009-2013 01
001 25853096 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2009-2011 01
001 20777676 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (HP2, K34, N30, Z75, 41I) 2009-2013 01
001 25853065 WHEEL, STRG (INCLS 2-5, 7-9) (EBONY) CK1 (HP2, K34, N30, Z75, 19I) (EXC ULT) 2009-2013 01
001 25853066 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (HP2, K34, N30, Z75, 39I) 2009-2013 01
001 22947792 WHEEL, STRG (INCLS 2-5, 7-9) (COCOA) CK1 (K34, N30, UK3, UVD, Z75, 39I) (EXC HP2) 2009-2013 01
002 25851952 SWITCH, RDO CONT (PART OF 1) (EBONY) CK1 (K34, N30, UK3, Z75, 19I) (EXC HP2) 2009-2013 01
002 25851952 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) CK1 (K34, N30, UK3, Z75, 19I) (EXC HP2) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (HP2, K34, N30, Z75, 39I) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 39I) (EXC HP2) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (HP2, K34, N30, Z75, 39I) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (HP2, K34, N30, Z75, 41I) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) CK1 (HP2, K34, N30, Z75, 41I) 2009-2013 01
002 25851952 SWITCH, RDO CONT (PART OF 1) (EBONY) (9.649) CK1 (HP2, K34, N30, Z75, 19I) 2009-2013 01
002 25851952 SWITCH, RDO CONT (PART OF 1) (EBONY) CK1 (HP2, K34, N30, Z75, 19I) 2009-2013 01
002 25851956 SWITCH, RDO CONT (PART OF 1) (COCOA) (9.649) CK1 (KA9, K34, N30, UK3, Z75, 39I) (EXC HP2) 2009-2013 01
003 25824700 COVER, STRG WHL SPOKE LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 (19I, 33I, 83I, 22I, 84I, 85I, 39I) 2008-2013 01
003 25826421 COVER, STRG WHL SPOKE LWR (PART OF 1) (SOLITARE) CK1 2008-2013 01
003 15255102 COVER, STRG WHL SPOKE LWR (PART OF 1) (TRINITY) CK1 (K34, N30, UK3, Z75, 19I, 39I) 2009-2013 01
003 15255102 COVER, STRG WHL SPOKE LWR (PART OF 1) (TRINITY) CK1 (HP2, K34, N30, Z75, 19I, 39I, 41I) 2009-2013 01
004 15257875 BOLT, STRG WHL LWR CVR (PART OF 1) (M3.63-1.34X10MM) (SPECIAL TORX PLUS (15 IP) PAN HEAD) CK1, 2, 3 2007-2013 04
005 15255031 CONTACT, STRG WHL HORN (PART OF 1) CK1, 2, 3 2007-2013 01
006 20928230 AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) CK1 (06) (ULT, Y91, Z75, 41I) 2011-2012 01
006 20928230 AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) (16.712) CK1 (06) (ULT, Y91, Z75, 41I) 2011-2012 01
006 20928246 AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) CK1 (06-36) (Y91, Z75, 19I) 2011-2012 01
006 20928246 AIRBAG, STRG WHL (EBONY) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 19I) 2011-2012 01
006 20928247 AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) CK1 (06-36) (Y91, Z75, 39I) 2011-2012 01
006 20928247 AIRBAG, STRG WHL (COCOA) (DUAL LEVEL) (16.712) CK1 (06-36) (Y91, Z75, 39I) 2011-2012 01
007 15255100 COVER, STRG WHL SPOKE LWR (PART OF 1) (TRINITY) CK1 (HP2, K34, N30, Z75, 19I, 39I, 41I) 2009-2013 01
007 25824698 COVER, STRG WHL SPOKE LWR (PART OF 1) (METAL BRUSH) CK1, 2, 3 (19I, 33I, 83I, 84I, 22I, 85I, 39I) 2008-2013 01
007 25826420 COVER, STRG WHL SPOKE LWR (PART OF 1) (SOLITARE) CK1 (KA9, K34, N30, UK3, Z75, 41I) 2008-2011 01
007 15255100 COVER, STRG WHL SPOKE LWR (PART OF 1) (TRINITY) CK1 (K34, N30, UK3, Z75, 19I, 39I) 2010-2013 01
008 15824106 SWITCH, CRCONT (PART OF 1) (COCOA) (ACDelco #15824106) CK1 (HP2, K34, N30, Z75, 39I) 2009-2011 01
008 15824110 SWITCH, CRCONT (PART OF 1) (COCOA) (ACDelco #15824110) CK1 (KA9, K34, N30, UK3, Z75, 39I, 41I) 2009-2012 01
008 15824112 SWITCH, CRCONT (PART OF 1) (EBONY) (ACDelco #D1959E) CK1 (KA9, K34, N30, UK3, Z75, 19I) (EXC HP2) 2009-2012 01
009 MODULE, STRG WHL HT CONT (PART OF 1) 2007-2012
010 11609658 NUT, STRG WHL (M14X1.5-6H THD) (NON-FLANGED NYLON INSERT HEX) (6.518) CK1, 2, 3 2007-2013 01
011 COLUMN, STRG (SEE GROUP 06.000 STEERING COLUMN FOR DETAILED ILLUSTRATED VIEW) 2007-2013
