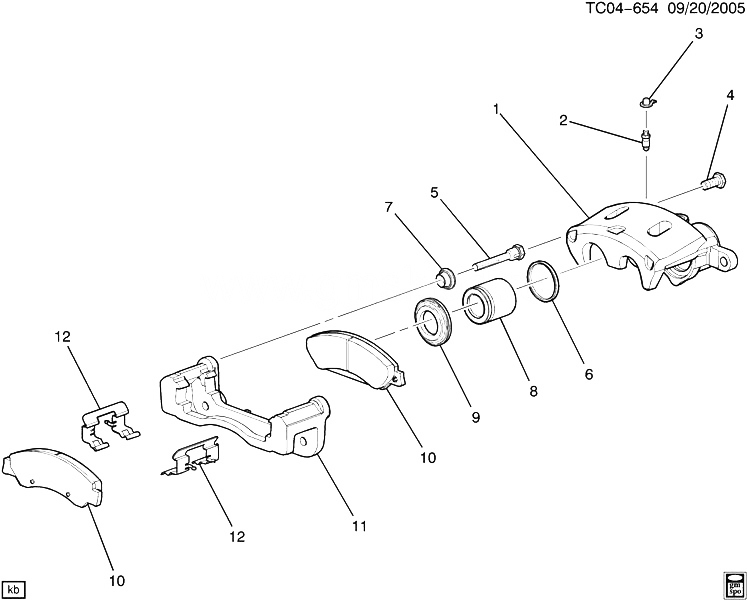

(TC04-654) 2007-2013 CK1 ТОРМОЗНОЙ СУППОРТ ПЕРЕДНИЙ CADILLAC - ESCALADE (AWD) 2011

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15904194 CALIPER, FRT BRK (INCLS 2, 3, 6-9) (ACDelco #172-2402) CK1 2008-2013 01
001 15904195 CALIPER, FRT BRK (INCLS 2, 3, 6-9) (ACDelco #172-2408) CK1 2008-2013 01
002 25846360 VALVE, FRT BRK CLPR BLEDR (DELPHI CHASSIS, M10 X 1.5) (PART OF 1) (M10X1.5) (ACDelco #25846360) CK1 2011-2013 02
003 18009891 COVER, FRT BRK BLEDR SCREW (PART OF 1) (M10X1.5 THD) (4.665) CK1, 2, 3 2009-2013 02
004 15125961 BOLT, FRT BRK CLPR BRKT (M12X1.25-6G) (27MM LONG, 18.8MM HEAD, 10.9 GRADE) CK1 2007-2013 04
005 PIN, FRT BRK CLPR GDE (*KIT1) 2007-2013
006 25951292 SEAL KIT, FRT BRK CLPR PSTN (INCLS 9) (PART OF 1) CK1 2007-2013 02
007 BUSHING, FRT BRK CLPR BOLT INR (PART OF 1) (*KIT1, KIT2) 2007-2013
008 15125962 PISTON, FRT BRK CLPR (PART OF 1) (ACDelco #15125962) CK1 2007-2013 04
009 BOOT, FRT BRK CLPR PSTN (PART OF 1, 6) 2007-2013
010 PAD, FRT DISC BRK INR (*KIT3) 2007-2013
010 PAD, FRT DISC BRK OTR (*KIT3) 2007-2013
011 25910434 BRACKET KIT, FRT BRK CLPR CK1 2009-2013 01
011 25910435 BRACKET KIT, FRT BRK CLPR CK1 2009-2013 01
012 SPRING, FRT DISC BRK PAD RET (*KIT3, KIT5) 2007-2013
K01 25910433 PIN KIT, FRT BRK CLPR GDE (INCLS 5, 7) (DOES NOT INCLUDE SHIMS BOLTS) CK1 2007-2013 02
K02 15299068 BUSHING KIT, FRT BRK CLPR GDE PIN (INCLS 7) (ACDelco #15299068) CK1 2007-2013 01
K03 25910430 PAD KIT, FRT DISC BRK (INCLS 10, 12) (ACDelco #171-1014) CK1 (PPV) 2009-2013 01
K03 25910432 PAD KIT, FRT DISC BRK (INCLS 10, 12) (ACDelco #171-1007) CK1 (EXC JL4, PPV) 2009-2013 01
K03 22742382 PAD KIT, FRT DISC BRK (INCLS 10, 12) (ACDelco #171-1074) CK1 (JL4) (EXC PPV) 2009-2011 01
K03 22742382 PAD KIT, FRT DISC BRK (INCLS 10, 12) (ACDelco #171-1074) K1 (JD9, JF3, JF7, J92, JL4) (EXC 1LR) 2010-2011 01
K05 13587647 SPRING KIT, FRT DISC BRK PAD RET (INCLS 12) (ACDelco #13587647) CK1 2007-2013 02
