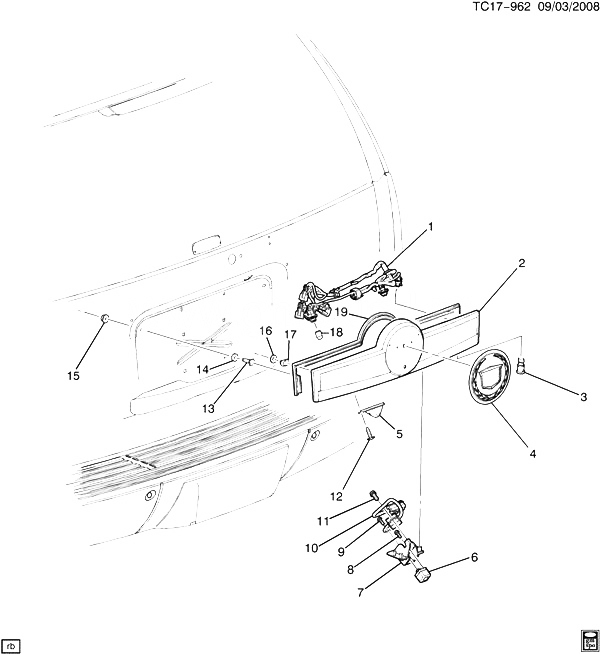

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25872958 |
HARNESS, RR LIC PLT LP WRG |
CK1 (06) (UVC, Z75) |
2009-2013 |
01 |
| 002 |
22777526 |
APPLIQUE, L/GATE CTR (INCLS 4, 6-11, 13, 14, 16, 17, 19) (CHROME) (INCLS CAMERA) |
CK1 (06) (UVC, Z75) |
2009-2011 |
01 |
| 003 |
15798062 |
SWITCH, L/GATE WDO REL (ACDelco #D1994E) |
CK1, 2 (06) (X88, Z75, Z88) |
2009-2011 |
01 |
| 004 |
20823396 |
EMBLEM, L/GATE (PART OF 2) (WREATH/CREST) |
CK1 (06) (Z75) |
2009-2013 |
01 |
| 005 |
25778786 |
LAMP, RR LIC PLT |
CK1, 2 (06) (X88, Z75, Z88) |
2009-2013 |
02 |
| 006 |
|
MODULE, RR VIEW CAMERA IMAGE DISPLAY (PART OF 2) |
|
2009-2011 |
|
| 007 |
|
BRACKET, RR VIEW CAMERA IMAGE DISPLAY MDL (PART OF 2) |
|
2009-2011 |
|
| 008 |
|
BOLT, RR VIEW CAMERA (PART OF 2) |
|
2009-2011 |
|
| 009 |
|
BOLT, RR VIEW CAMERA (PART OF 2) |
|
2009-2011 |
|
| 010 |
|
HARNESS, VIDEO DISPLAY (PART OF 2) |
|
2009-2011 |
|
| 011 |
|
BOLT, RR VIEW CAMERA (PART OF 2) |
|
2009-2011 |
|
| 012 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (RR LIC PLT LP LENS) |
|
2009-2013 |
04 |
| 013 |
|
STUD, L/GATE LWR MLDG (PART OF 2) |
|
2009-2011 |
|
| 014 |
|
SEAL, L/GATE LWR MLDG STUD (PART OF 2) |
|
2009-2011 |
|
| 015 |
03530297 |
NUT, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (L/GATE CTR MLDG) |
|
2009-2013 |
04 |
| 016 |
|
SEAL, L/GATE LWR MLDG STUD (PART OF 2, 17) |
|
2009-2011 |
|
| 017 |
11562334 |
RETAINER, L/GATE CTR APLQ (INCLS 16) (PART OF 2) |
CK1 (06) (Z75) |
2009-2013 |
03 |
| 018 |
13500812 |
BULB, RR LIC PLT LP (TRADE #W5WLL) (ACDelco #13500812) |
CK1 (06) (UVC, Z75) |
2009-2013 |
02 |
| 019 |
|
GASKET, APPLIQUE L/GATE CTR (PART OF 2) |
|
2009-2011 |
|
