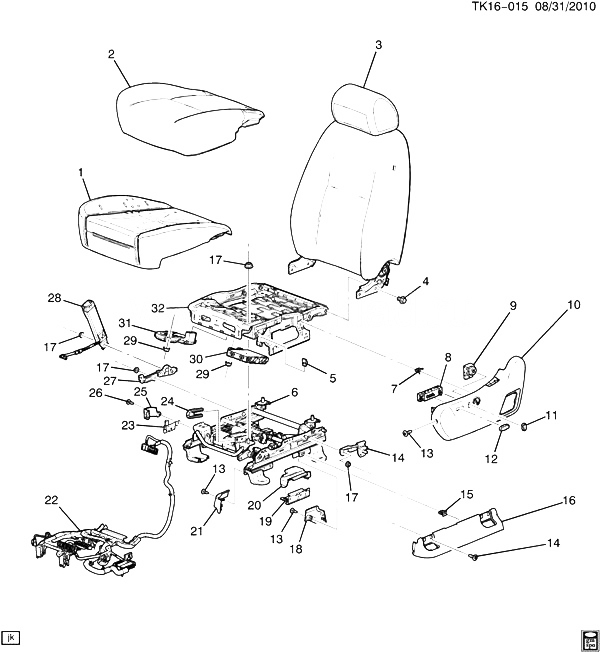

(TK16-015) 2010-2011 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET-CUSHION (AN3, HEATED/VENTED HNE,KB6) CADILLAC - ESCALADE (AWD) 2010

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 25789849 PAD, D/SEAT CUSH (USED ON HEAT/COOL) CK1, 2 (41I) 2010-2011 01
001 25789849 PAD, D/SEAT CUSH (USED ON HEAT/COOL) CK1, 2 (06-36) (KB6) 2010-2011 01
002 25851675 COVER, D/SEAT CUSH (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2010-2011 01
002 22751125 COVER, D/SEAT CUSH (EBONY) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2010-2011 01
002 20779850 COVER, D/SEAT CUSH (CASHMERE) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) CK1, 2, 3 (AN3, 313) 2010-2011 01
002 22751126 COVER, D/SEAT CUSH (CASHMERE) CK1 (06-36) (AN3, KB6, Z75, 394) 2010-2010 01
003 PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/BUCKET-BACK FOR DETAILED ILLUSTRATED VIEW) 2010-2011
004 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2010-2011 08
005 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2010-2011 02
006 20987428 ADJUSTER, D/SEAT (USED ON VEHICLES WITH POWER TILT STEERING COLUMN W/MEMORY) (INCLS MOTORS) CK1 (06-36) (AN3, Z75, 194, 394, 415) 2010-2010 01
006 22804419 ADJUSTER, D/SEAT (POWER 6-WAY) (INCLS MOTORS) (W/MEMORY) CK1, 2 (06-36) (AN3, 193, 196, 333, 336, 833, 836) 2010-2010 01
007 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 10) 2010-2011 03
008 12451497 SWITCH, D/SEAT ADJR RECL (8-WAY) (11.558) CK1, 2 (06-36) (AN3) 2010-2011 01
009 25909573 SWITCH, D/SEAT LUMBAR CONT (COCOA) CK1, 2 (06-36) (41I) 2010-2011 01
009 25926717 SWITCH, D/SEAT LUMBAR CONT (CASHMERE) (4-PIN, BKWD FORWD ONLY) (11.378) CK1, 2 (06-36) (31I, 33I, 39I) 2010-2010 01
009 25926718 SWITCH, D/SEAT LUMBAR CONT (LT TITANIUM) (4-PIN, BKWD FORWD ONLY) (11.378) CK1, 2 (06-36) (83I) 2010-2011 01
009 25926719 SWITCH, D/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD FORWD ONLY) CK1, 2, 3 (33I, 83I, 85I) 2010-2011 01
009 25926719 SWITCH, D/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD FORWD ONLY) CK1, 2, 3 (193) 2010-2011 01
010 15232563 COVER, D/SEAT ADJR FIN (INCLS 7) (CASHMERE) (8 WAY POWER) CK1, 2 (06-36) (AN3, 31I) 2010-2010 01
010 15232564 COVER, D/SEAT ADJR FIN (INCLS 7) (TITANIUM) (8 WAY POWER) CK1, 2 (06-36) (AN3, 83I) 2010-2011 01
010 15882421 COVER, D/SEAT ADJR FIN (INCLS 7) (COCOA) (BELT UTILITY) CK1 (06) (41I) 2010-2011 01
010 25851752 COVER, D/SEAT ADJR FIN (INCLS 7) (COCOA) (8 WAY POWER) CK1 (06) (AN3, 41I) 2010-2011 01
010 15232562 COVER, D/SEAT ADJR FIN (INCLS 7) (EBONY) (8 WAY POWER) (OUTBOARD) CK1, 2 (06-36) (AN3, 19I) 2010-2011 01
010 15232563 COVER, D/SEAT ADJR FIN (INCLS 7) (CASHMERE) (8 WAY POWER) CK1, 2 (06-36) (AN3, 33I, 39I) 2010-2011 01
010 15214529 COVER, D/SEAT ADJR FIN (INCLS 7) (TITANIUM) (BELT UTILITY) CK1, 2 (06-36) (83I) (EXC HP2) 2010-2010 01
010 15219925 COVER, D/SEAT ADJR FIN (INCLS 7) (CASHMERE) (BELT UTILITY) CK1, 2 (06-36) (33I, 39I) (EXC HP2) 2010-2010 01
010 15214527 COVER, D/SEAT ADJR FIN (INCLS 7) (EBONY) (BELT UTILITY) CK1, 2 (06-36) (Z75, 19I) 2010-2010 01
011 15222985 KNOB, F/SEAT BK RECL (TITANIUM) (11.377) CK1, 2, 3 (83I) 2010-2011 02
011 15889098 KNOB, F/SEAT BK RECL (COCOA) (11.377) CK1, 2, 3 (AN3, HNE, 415) 2010-2011 02
011 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (39I) 2010-2011 02
011 10340136 KNOB, F/SEAT BK RECL (EBONY) (11.377) CK1 (06-36) (AL0, AN3, KB6, Z75, 194) 2010-2011 02
011 15222984 KNOB, F/SEAT BK RECL (CASHMERE) (11.377) CK1, 2 (06-36) (33I) 2010-2011 02
012 15222980 KNOB, D/SEAT ADJR SW (CASHMERE) (11.558) CK1 (06-36) (33I) 2010-2011 01
012 15889097 KNOB, D/SEAT ADJR SW (COCOA) (11.558) CK1, 2, 3 (41I, 415) 2010-2011 01
012 10325879 KNOB, D/SEAT ADJR SW (EBONY) (11.558) CK1, 2 (06-36) (19I) 2010-2011 01
012 15222981 KNOB, D/SEAT ADJR SW (TITANIUM) (11.558) CK1 (06) (83I) 2010-2011 01
013 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2010-2011 05
014 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 (AL0) 2010-2011 01
015 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 16) 2010-2011 01
016 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 15) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2010-2011 01
016 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 15) (CASHMERE) (OUTBOARD) CK1, 2, 3 (33I, 39I) 2010-2011 01
016 15232586 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 15) (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2010-2011 01
016 25851754 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 15) (COCOA) (OUTBOARD) CK1 (06) (AN3, 41I) 2010-2011 01
017 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2010-2011 09
018 15232586 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (OUTBOARD) CK1, 2 (06-36) (83I) 2010-2011 01
018 15243866 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2010-2011 01
018 25851754 COVER, D/SEAT OTR ADJR TRK RR FIN (COCOA) (OUTBOARD) CK1 (06) (AN3, 41I) 2010-2011 01
018 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2010-2011 01
018 15232585 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (OUTBOARD) CK1, 2, 3 (33I, 39I) 2010-2011 01
018 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2010-2011 01
018 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2011 01
018 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2010-2011 01
018 15243865 COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) CK1, 2 (06-36) (33I, 39I) 2010-2011 01
018 15243866 COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) CK1, 2 (06-36) (83I) 2010-2011 01
019 15827134 BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2010-2011 01
020 25952151 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (Z75) 2010-2010 01
021 15243852 COVER, D/SEAT INR ADJR TRK FRT FIN (TITANIUM) CK1, 2, 3 (83I) 2010-2011 01
021 25851758 COVER, D/SEAT INR ADJR TRK FRT FIN (COCOA) CK1 (06) (AN3, 41I) 2010-2011 01
021 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2010-2011 01
021 15243851 COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) CK1, 2 (06-36) (33I, 39I) 2010-2011 01
022 22756568 HARNESS, D/SEAT ADJR WRG CK1 (06-36) (AL0, AN3, KB6, Z75, 194, 394) 2010-2011 01
022 22756568 HARNESS, D/SEAT ADJR WRG CK1 (06) (AN3, HNE, ULT, Z75, 415) 2010-2011 01
022 22756568 HARNESS, D/SEAT ADJR WRG K1 (06) (AL0, AN3, KB6, XA1, Z75, 194, 394) 2010-2010 01
023 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1 (06-36) (AL0, AN3, Z75, 194, 394) 2010-2011 01
023 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1 (06) (AN3, Z75, 415) 2010-2011 01
024 25815788 CAP, F/SEAT ADJR TRK END (BLACK) CK1, 2, 3 2010-2011 02
025 20900194 COVER, AIRBAG D/SEAT POSN SEN CK1, 2 (06-36) 2010-2011 01
026 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2010-2011 06
027 25916854 BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) CK1, 2, 3 2010-2011 01
028 19121538 BELT KIT, D/SEAT (BKL SI) (CASHMERE) CK1, 2 (06-36) (AN3, 31I, 33I, 39I) 2010-2011 01
028 19121539 BELT KIT, D/SEAT (BKL SI) (TITANIUM) CK1, 2 (06-36) (AN3, 83I) 2010-2011 01
028 19180587 BELT KIT, D/SEAT (BKL SI) (COCOA) CK1 (06) (AN3, HNE, ULT, Z75, 415) 2010-2011 01
028 19121537 BELT KIT, D/SEAT (BKL SI) (EBONY) CK1, 2 (06-36) (AN3, 19I) 2010-2011 01
029 11516075 NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT ADJR MEMORY SW) 2010-2011 06
030 25862041 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (ADJR HTR CONTROL) (11.558) CK1 (06-36) (AN3, KB6, Z75) 2010-2011 01
030 25862041 MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (ADJR HTR CONTROL) (11.558) CK1 (06-36) (AN3, KB6, Z75) 2010-2011 01
031 20987427 BLOWER, D/SEAT CUSH VENTILATION HEAT COOL (INCLS THERMAL ELECTRIC DEVICE, TEMP SENSOR FILTER) CK1 (06-36) (AN3, KB6) 2010-2011 01
031 20987427 BLOWER, D/SEAT CUSH VENTILATION HEAT COOL (INCLS THERMAL ELECTRIC DEVICE, TEMP SENSOR FILTER) CK1 (06) (AN3, HNE, Z75) 2010-2011 01
032 15854391 FRAME, D/SEAT CUSH CK1, 2, 3 2010-2011 01
